Surge Protectors for Signal System

Repsun Lightning Surge Protector for CCTV Camera Signal System
Surge Protectors for Signal System 02

PRODUCTS DETAIL

Product Picture

Surge Protectors for Signal System 03

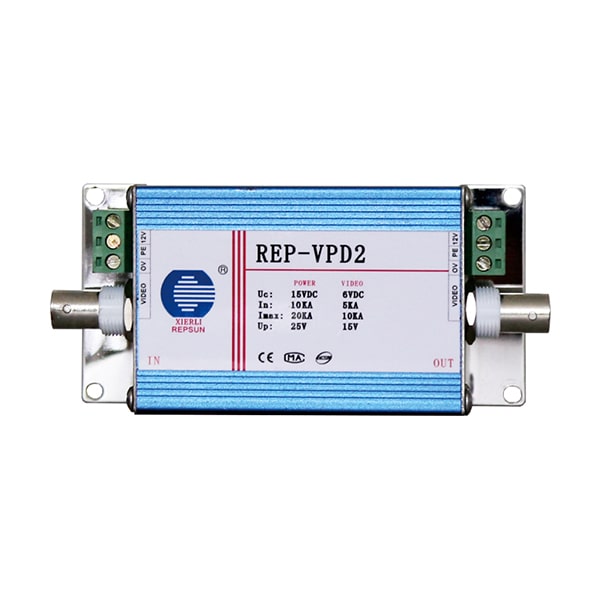

REP-VPD2

Surge Protectors for Signal System 04

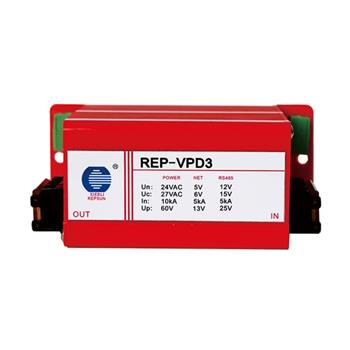

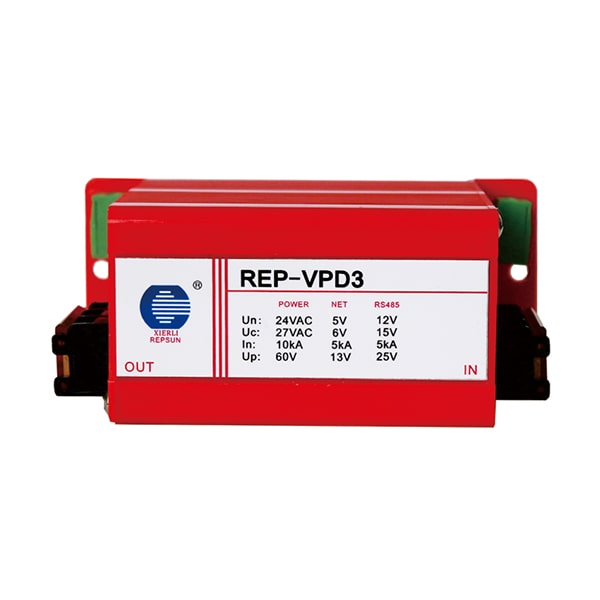

REP-VPD3

Surge Protectors for Signal System 05

Dimension drawing(mm)

Surge Protectors for Signal System 06

Installation diagram

Features

Combined SPD for protecting mains, video and control system
Simple installation, with BNC connector, RJ45 connector and connection clamps
Especially used in monitoring camera chain protection

Datasheet

Type

REP-VPD2/3

Power

Video Line

Signal Line

Port type

Two terminal

Two terminal

Two tenninal

F^45 interface

BNC interfece

Two lines

T\w terminals

Nominal voltage Un

AC 220V

AC 24V

DC 12V

5V

5V

12V

12V

Max. continuous voltage Uc

AC 275V

AC 27V

DC 15V

6V

6V

15V

15V

Nominal discharge current In(8/20μs)

10kA

10kA

10kA

2_5kA

2.5kA(Center/shield)

5kA

5kA

5kA(Shield/ earth)

Max. discharge current Imax(8/20μs)

20kA

20kA

20kA

5kA

5kA(Center/shield)

10kA

10kA

10kA(Shield/ earth)

Voltage protection level Up

≤1.0kV

≤60V

≤25V

30V(Line/Line)

≤12V(Center/shield)

≤25V

≤25V

300V(Line/Line)

≤600V(Center/ earth)

In and out impedance

200MQ

200MQ

200MQ

POE(Opfonal)

75Q





Insert loss

-

-

-

<0.5dB

<0.2dB

≤0.2dB

≤0.2dB

Bandwidth Fg

-

-

-

-

200MHZ

-

-

Data transmission rate

-

-

-

100/1000Mbps

-

≤20Mbps

≤2Mbps
