Surge Protector (REP-ANT Series)

PRODUCTS DETAIL

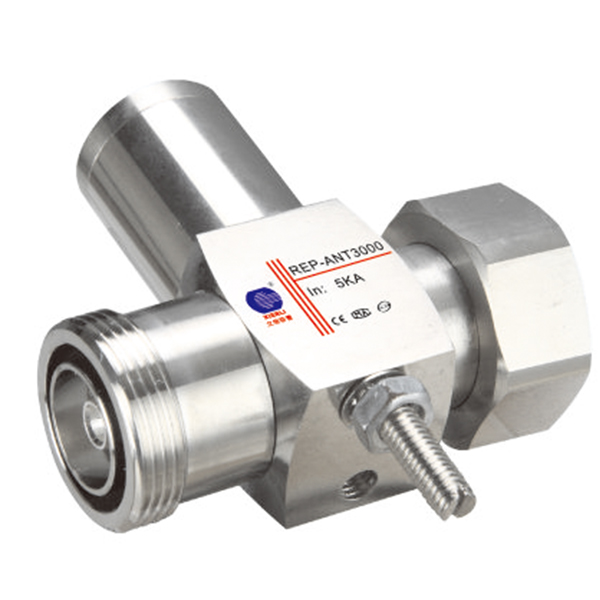

Product Picture

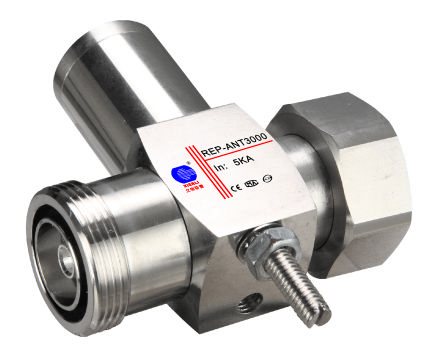

3000

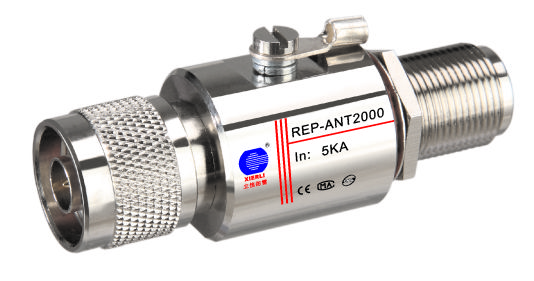

ANT2000

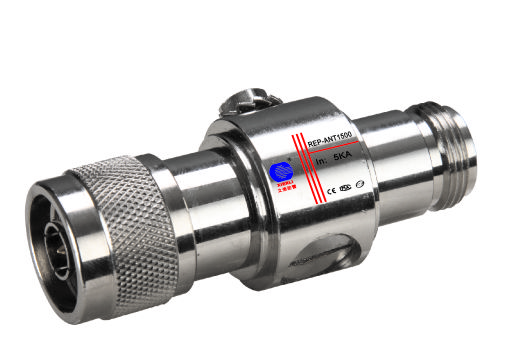

ANT1500

Features

●For protecting 50Ω coaxial system, applied in coaxial systems, cell sites and antenna systems, installed at LPZOA-1 interface.

●Good discharge capacity, low voltage protection level.

●Wide frequency range, high performance transmission.

●Metallic housing N/UHF/BNC connection, easy for installation.

Datasheet

TYPE	REP-ANT1500	REP-ANT2000	REP-ANT3000
Port type	N, F, M, 1/4 wave length	N.F.TNC	N,F, L16
Characteristic impedance	50Ω	50Ω	50Ω
Max. output power	300W	300W	300W
Nominal discharge current ln(8/20 u s)	10kA	10k A	10k A
Maximum discharge current(8/20μs)(Imax)	20k A	20k A	20k A
Voltage protection level(Up)	≤300V	≤300V	≤300V
Frequency range(fG)	950-1500MHz	950-2000MHZ	950-3000MHZ
Standing wave ratio	≤1.2	≤1.2	≤1.2
Degree of protection	IP30	IP30	IP30

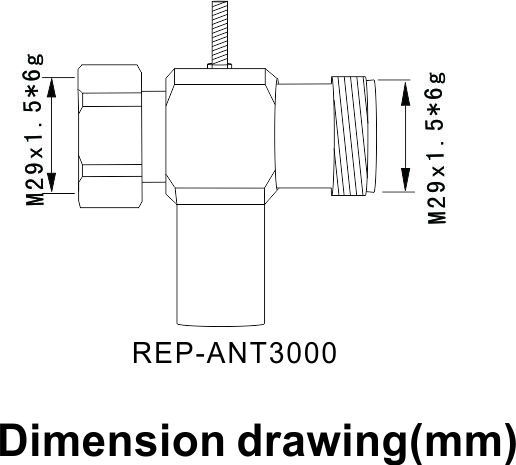

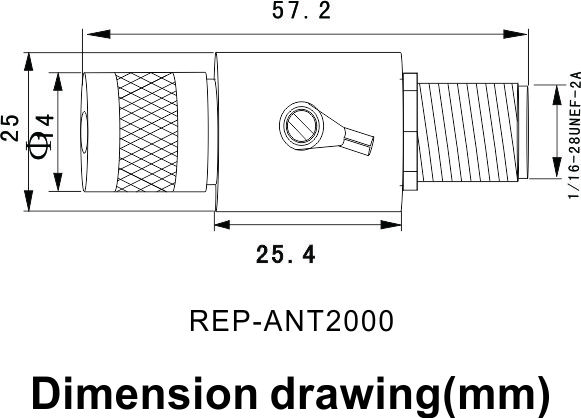

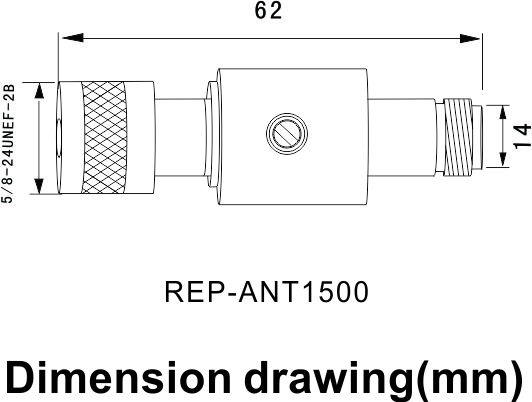

Dimension drawing(mm)
