REP-SP Series
PRODUCTS DETAIL

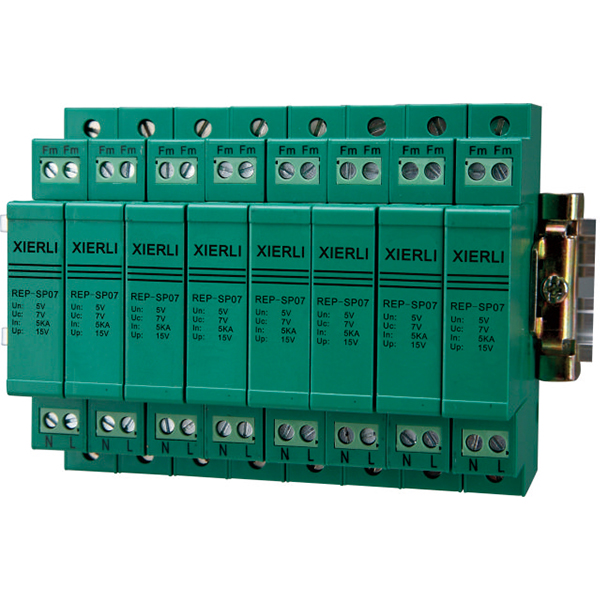

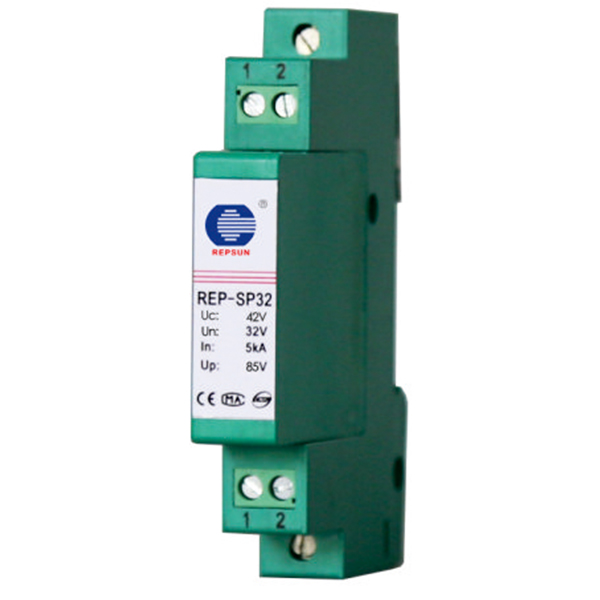

Product Picture
Features
●REP-SP can work in the various voltage of 5-60Vdc.
●Pluggable surge protection for DIN rail easy mounting.
●Signal transmission is not interrupted when exchanging module.
●Two-stage protection circuit; suitable to use RS232 or RS485 surge protection.
●Low insertion impedance without affecting signal transmission.
●LED light failure indication, and with remote control contact.
Datasheet
|
Type |
REP-SD05 |
REP-SP12
|
REP-SP24
|
REP-SP32
|
|
Nominal d.c. voltage(Un)
|
5V
|
12V
|
24V
|
32V |
|
Max. continuous operating d.c. voltage(Uc)
|
6V
|
15V
|
36V
|
42V
|
|
Load current insertion
|
2000mA
|
|||
|
Nominal discharge current (8/20μs)(In)
|
5kA
|
|||
|
Max discharge current (8/20μs)(Imax)
|
10kA
|
|||
|
Voltage protection level (Up@In)[L-L]
|
≤15V
|
≤27V
|
≤55V
|
≤85V
|
|
Voltage protection level (Up@In)[L-PE]
|
≤600V
|
|||
|
Insertion resistance
|
<0.2Ω
|
|||
|
Installation rail
|
35mm DIN60715
|
|||
|
Operating temperature range
|
-40 °C ~ +80 °C
|
|||
|
Degree of protection
|
IP20 | |||
|
Enclosure material
|
PBT |
|||
|
Test standards
|
IEC61000-4-5; IEC61643:21
|
|||
|
Online Replacement
|
Yes
|
|||
 |
 |
|||
