REP-ANT Series(Signal System)

PRODUCTS DETAIL

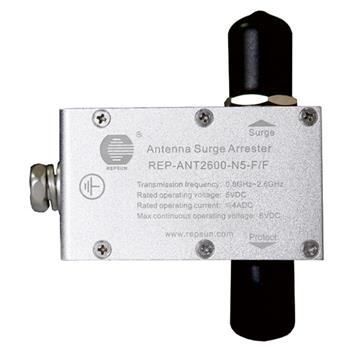

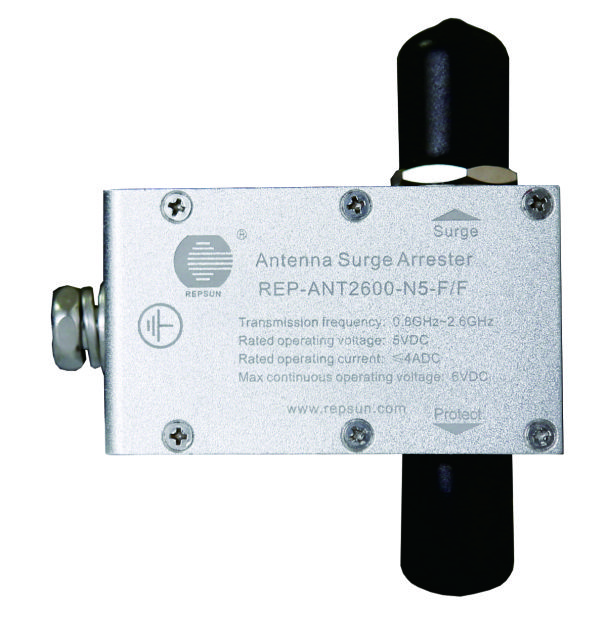

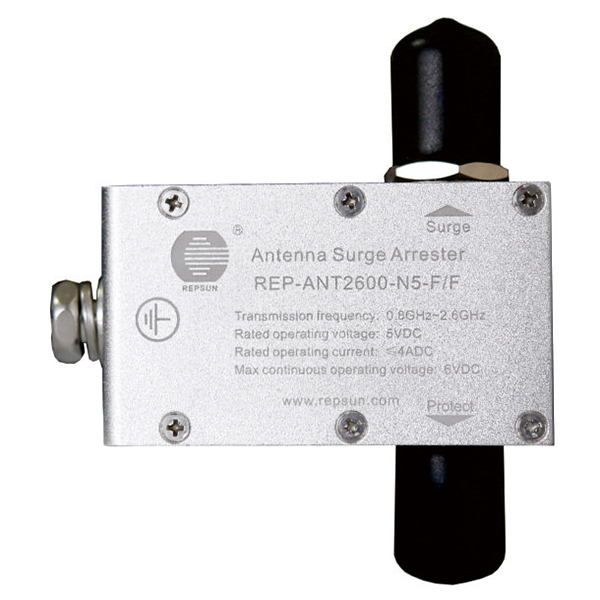

Product Picture

REP-ANT Series

Features

●This product is mainly used to protect the receiver or transmitter system of the mobile communication(GPS).

●Frequencies from the destroy causing by the inducing thunder, abnormal power and over-voltage etc.

●It has the waterproof construction and can be installed outside.

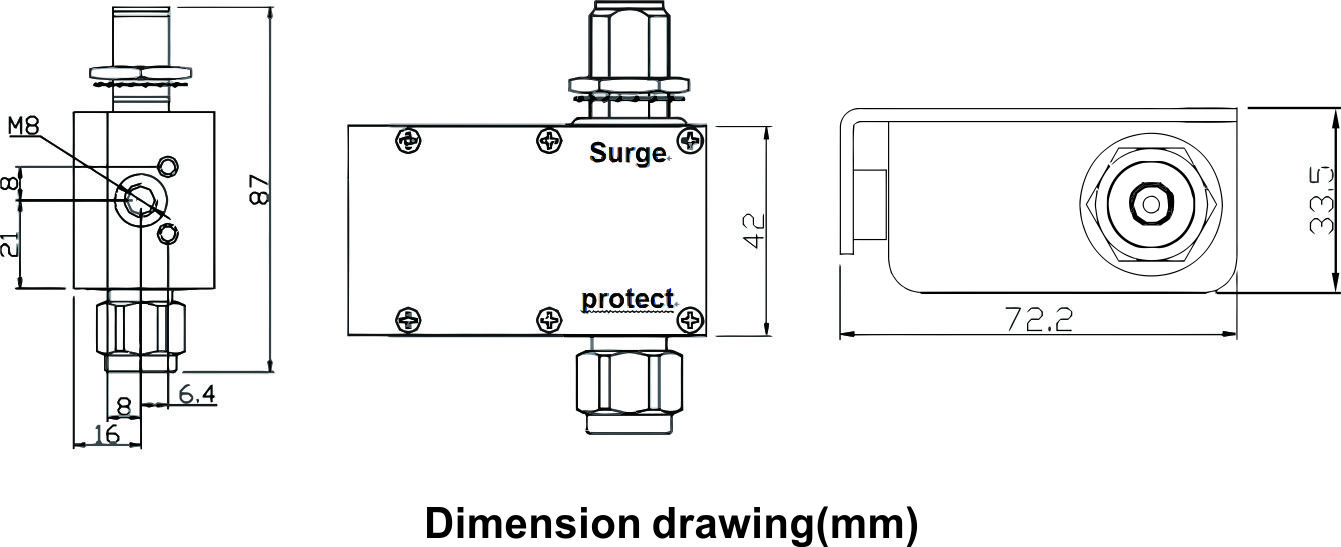

Datasheet

Type	REP-ANT2600-N5-F/F	Remark
Rated operating voltage	5Vdc
Maximum continuous operating voltage	6Vdc
Rated current	4Adc
Series resistance	0.5Ω±20%
lnsulating resistance	≥1 kΩ
Transmission frequency	0.8〜2.6GHz
AC resist capacity	0.25Arms	1s, 5 times
Concussion resist capacity	4kV, 1.2/50ps; 2kA, 8/20ps	10 times
Nominal discharge current(8/20μs)(In)	20kA
Voltage protection level(Up)	≤15V	8/20μs, 20kA
Voltage protection level(Up)	≤20V	1.2/50ps, 4kV
SPD type	Typel
RF power	≤100W
Overstressed Fault Mode	Mode 3
Voltage standing wave ratio	≤1.12
Insertion loss	≤0.2dB
Characteristic impedance	50Ω
Port type	N(F/F-N)
Degree of protection	Ip 67
Weight	300g
