REP- SD Series

REP-SP series lightning protection spd for signal system

PRODUCTS DETAIL

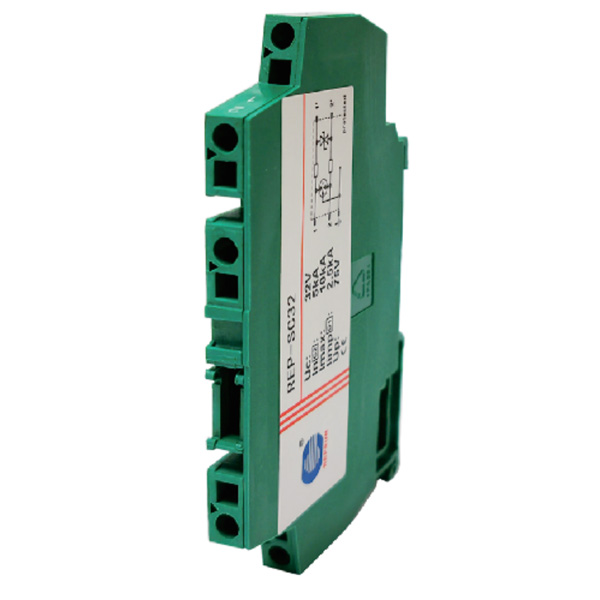

Product Picture

Features

●   Compact size with high-performance
● Comprehensive protection modes and rapid response time
●   Enhanced safety, reliability, and all-around protection for a variety of control system
●   Easy DIN rail mounting with automatic grounding upon installation

Datasheet

Type	REP-SC XX
Max.continuous operating d.c.voltage(Uc)	12V	32V	48V	110V
Rated current	0.5A
Max.discharge current	10KA
Nominal discharge current	5KA
Voltage protection level (InC2)(X-X) Up	≤55V	≤110V	≤175V	≤500V
Voltage protection level (InC2)(X-PE) Up	≤40V	≤65V	≤100V	≤270V
Voltage protection level (1KV/C3μs)(X-X) Up	≤36V	≤90V	≤160V	≤460V
Voltage protection level (1KV/C3μs)(X-PE) Up	≤19V	≤45V	≤80V	≤230V
Series impedance	1.8Ω
Response time	10MHz
Inter-line capacitance	≤1.2nF	≤0.5nF	≤0.3nF	≤0.2nF
Line-to-ground capacitance	≤2.4nF	≤1nF	≤0.6nF	≤0.4nF
Protection mode	Balanced/Unbalanced(Selectable)
Grounding method	Direct Grounding/Indirect Grounding(Selectable)
Operating temperature range	-40℃～+80℃
Degree of protection	Ip20
Installation rail	35mmDIN rail
Connection method	Screw Terminal
Connection conductors	0.08～0.25mm²
Enclosure material	Thermoplastic 66
Test standards	IEC 61643-21 GB18802
