Surge Protector (REP-VPD Series) for Signal System

PRODUCTS DETAIL

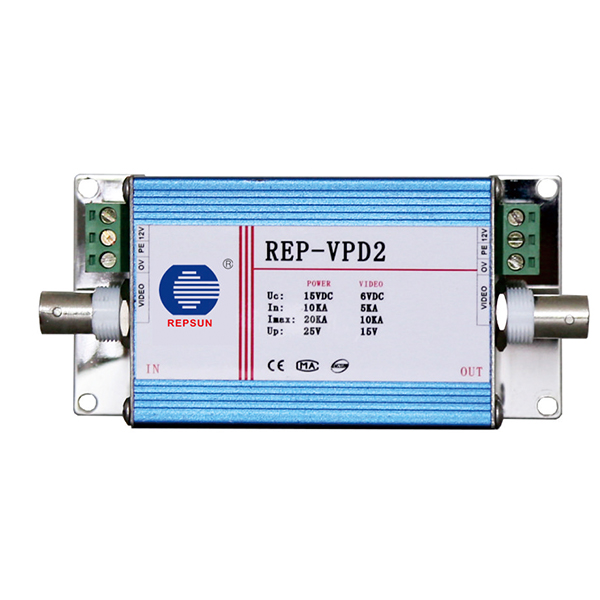

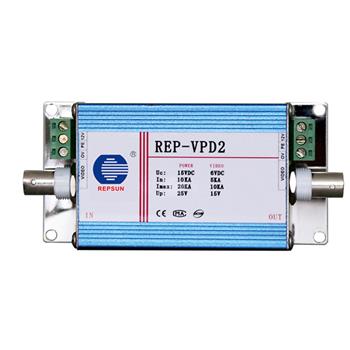

Product Picture

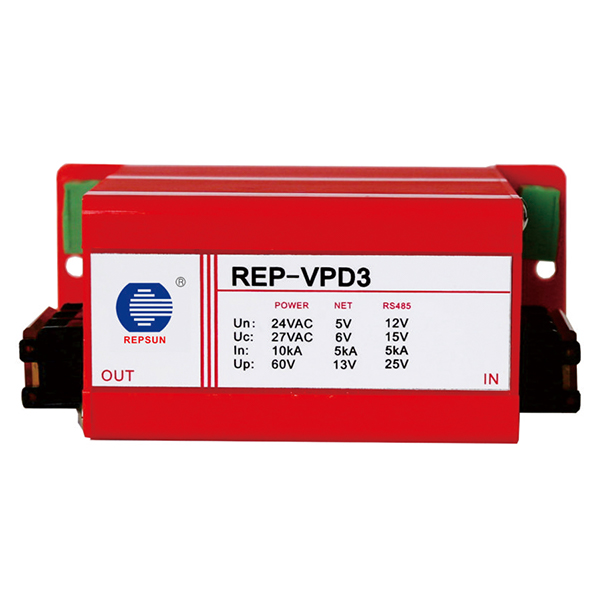

REP-VPD Series

Features

●Combined SPD for protecting mains, video and control system.

●Simple installation, with BNC connector, RJ45 connector and connection clamps.

●Especially used in monitoring camera chain protection.

Datasheet

Type	REP-VPD2 / REP-VPD3
	Power			Video Line			Signal Line
Port type	Two terminal	Two terminal	Two terminal	RJ45 interface	BNC interface	Two lines	Two terminals
Nominal voltage(Un)	AC 220V	AC 24V	DC 12V	5V	5V	12V	12V
Max. continuous voltage(Uc)	AC 275V	AC 27V	DC 15V	6V	6V	15V	15V
Nominal discharge current In(8/20μs)	10kA	10kA	10kA	2.5kA	2.5kA(Center/shield) 5kA(Shield/ earth)	5kA	5kA





Max. discharge current (Imax)(8/20μs)	20kA	20kA	20kA	5kA	5kA(Center/shield) 10kA(Shield/ earth)	10kA	10kA

Voltage protection level(Up)	≤1.0kV	≤60V	≤25V	30V(Line/Line) 300V(Line/Line)	≤12V(Center/shield) ≤600V(Center/ earth)	≤25V	≤25V

In and out impedance	200MΩ	200MΩ	200MΩ	POE(Optional)	75Ω
Insert loss	-	-	-	≤0.5dB	≤0.2dB	≤0.2dB	≤0.2dB
Bandwidth Fg	-	-	-	-	200MHZ	-	-
Data transmission rate	-	-	-	100/1000Mbps	-	≤20Mbps	≤2Mbps
