Surge Protector（REP-RJ45 Series）
PRODUCTS DETAIL

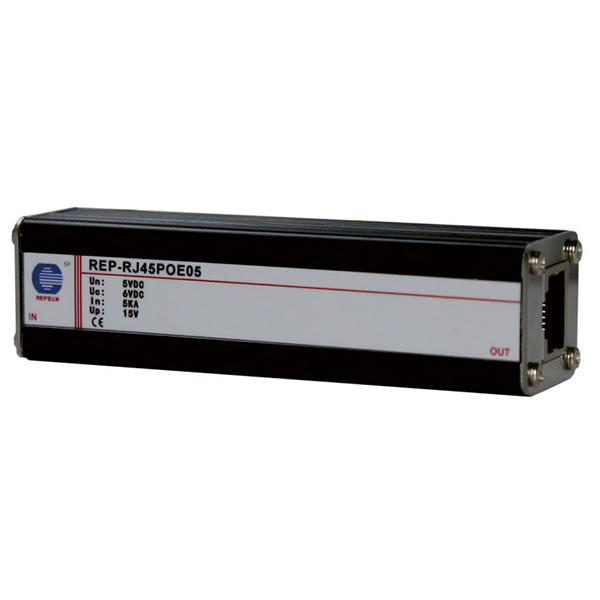

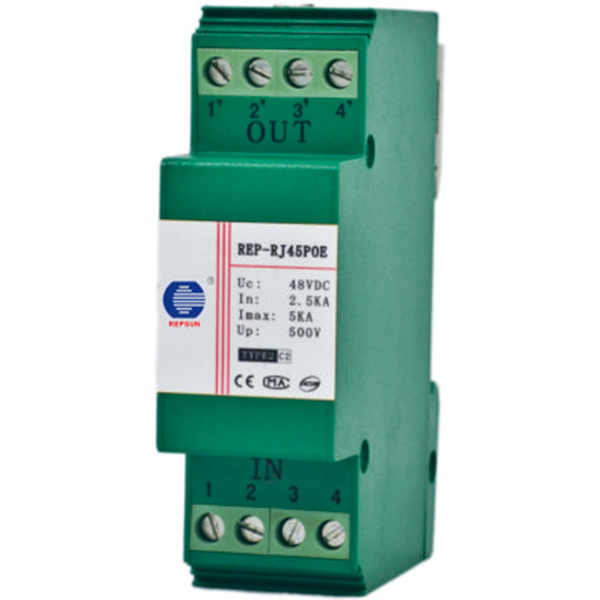

Product Picture
REP-RJ45 Series
Features
Datasheet
|
Type |
REP-RJ45POE05 |
REP-RJ45POE48 |
|
|
Standard |
IEC61643-21:2005;EN50173 Category 6 |
IEC61643-21:2005 EN50173 |
|
|
Nominal voItage(Vdc) Un |
5V |
48V |
|
|
Max. continuous operating voltage(Vdc/ac)Uc |
6V |
48V |
|
|
C2 Nominal discharge current(8/20)In |
2.5kA |
2.5kA |
|
|
C2 Total Nominal discharge current(8/20)In |
5kA |
5kA |
|
|
Lightning impluse current(10/350μs)(Iimp) |
500A |
500A |
|
|
Vdtage protection level(V) |
@C2(8/20μs)Up |
35V |
190 V |
|
Insertion resistance |
@C3(8/20μs)Up |
15V |
145V |
|
Nominal Current(A) IL |
200mA |
||
|
Transmission Speed(bps) |
1000Mbps |
||
|
Transmission standards |
10BaseT/100BaseT/1000BaseT/1000BaseTX(CAT6)POE(15W)
|
||
|
Pinning |
1/2,3/6,4/5,7/8 |
||
 |
 |
 |
|
