REP-CCTV Series （Signal System)
PRODUCTS DETAIL

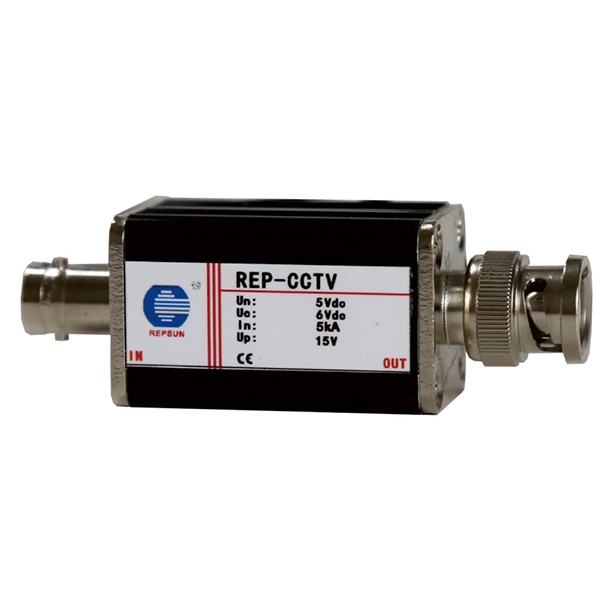

Product Picture
REP-CCTV Series
Features
●Coaxial series SPD for coaxial communication signal are designed according to IEC standard.
●Avoids leakage pickups.
●Easily adaptable due to standard BNC connection.
●For installation in conformity with the lightning protection zone concept at the boundaries from 0B – 2 and higher.
Datasheet
| Type |
REP-CCTV
|
||
|
IEC category / EN type
|
D1/C2/C1/C3
|
||
|
Nominal Voltage(Un)
|
5V
|
||
|
Maximum continuous operating d. c. voltage(Uc)
|
6V
|
||
|
Nominal current(IL)
|
0.1A
|
||
|
C2 Nominal discharge current (8/20μs)(In)
|
5kA
|
||
|
C1 Maximum impulse discharge current (8/20μs)(Imax)
|
10kA
|
||
|
Voltage protection level line-shield for I C2(Up)
|
≤25V
|
||
|
Voltage protection level line-shield at 1 kv/μs C3(Up)
|
≤15V
|
||
|
Voltage protection level shield-PG at 1 kv/μs C3(Up)
|
≤600V
|
||
|
Insertion loss
|
≤0.2dB
|
||
|
Frequency range
|
0~60MHZ
|
||
|
Operating temperature range
|
-40 °C ~ +80 °C
|
||
|
Plug connector
|
BNC (m/f)
|
||
 |
 |
||
