Surge Protectors for Signal System

Television and Telecommunication Signal System Lightning Surge SPD Protector from China Repsun Lightning Protection Technology...
Surge Protectors for Signal System 02

PRODUCTS DETAIL

Product Picture

Surge Protectors for Signal System 03

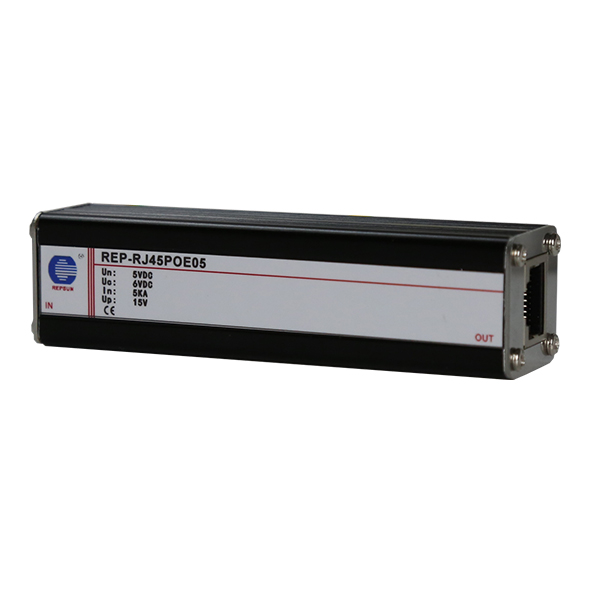

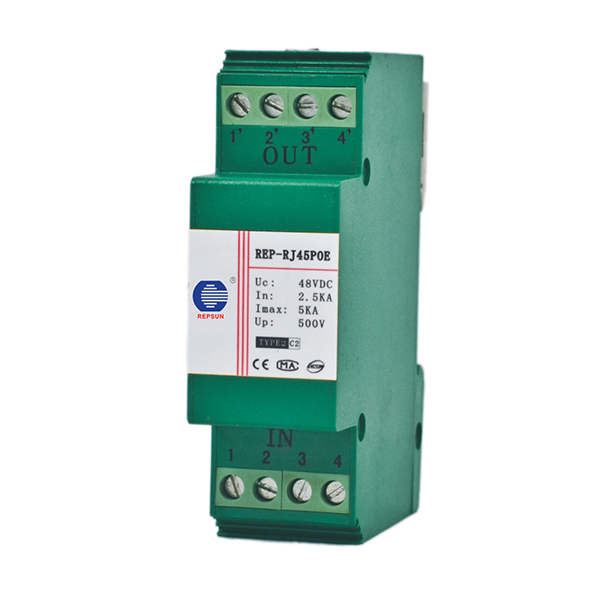

REP-RJ45POE

Surge Protectors for Signal System 04

REP-RJ45

Surge Protectors for Signal System 05

Dimension drawing(mm)

Surge Protectors for Signal System 06

Basic circuit diagram

Surge Protectors for Signal System 07

Dimension drawing(mm)

Features

Surge arrester for Ethernet, Twisted Pair, Cat 6 network systems against surges
High discharge capability, total nominal discharge current 8kA 8/20μs
Simple installation
Din Rail Type is available

Datasheet

Type

REP-RJ45POE05

REP-RJ45POE48

Standard

IEC61643-21:2005;EN50173 Category 6

IEC61643-21:2005EN50173

Nominal voItage(Vdc) Un

5V

48V

Max. continuous operating voltage(Vdc/ac)Uc

6V

48V

C2 Nominal discharge current(8/20)In

2.5kA

2_5kA

C2 Total Nominal discharge current(8/20)In

8kA

8kA

Lightning impluse current(10/350μs)

500A

500A

Vdtage protection level(V)

@C2(8/20μs)Up

35V

190 V

Insertion resistance

@C3(8/20μs)Up

13V

145V

Nominal Current(A) IL

200mA

Transmission Speed(bps)

1000Mbps

Transmission standards

10BaseT/100BaseT/1000BaseT/1000BaseTX(CAT6)POE(15W)

Pinning

1/2,3/6,4/5,7/8
