Surge Protectors for Signal System

REP-ANT2600-N5-F/F Lightning Surge Filter for GPS Signal System

PRODUCTS DETAIL

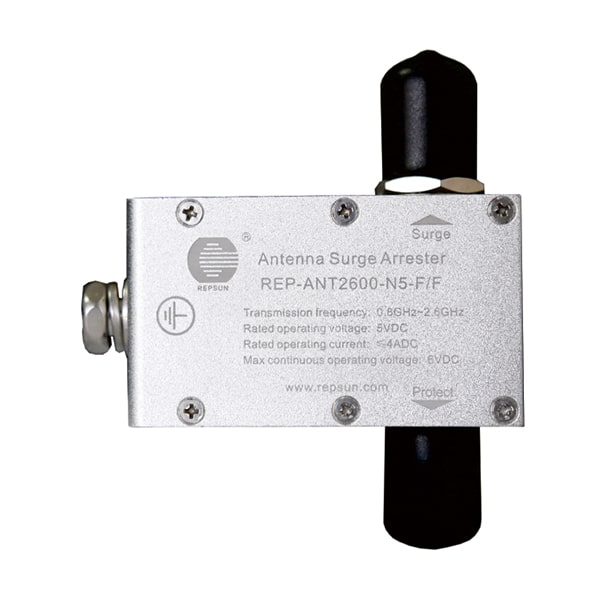

Product Picture

Surge Protectors for Signal System 02

REP-ANT2600-N5-F/F

Surge Protectors for Signal System 04

Dimension drawing(mm)

Surge Protectors for Signal System 05

Dimension drawing(mm)

Surge Protectors for Signal System 06

Dimension drawing(mm)

Features

This product is mainly used to protect the receiver or transmitter system of the mobile communication(GPS) frequencies from the destroy causing by the inducing thunder, abnormal power and over-voltage etc. It has the waterproof construction and can be installed outside.

Datasheet

Item

Parameter

Remark

Model

REP-ANT2600-N5-F/F



Rated operating voltage

5Vdc



Max.operating voltage

6Vdc



Rated current

4Adc



Series resistance

0.5Ω±20%



lnsulating resistance

≥1 kΩ



Transmission frequency

0.8〜2.6GHz



AC resist capacity

0.25Arms

1s, 5 times

Concussion resist capacity

4kV, 1.2/50ps; 2kA, 8/20ps

10 times

Nominal discharge current-ln

20kA

8/20μs

Protective level of voltage -up

≤15V

8/20μs, 20kA

≤20V

1.2/50ps, 4kV

SPD type

Typel



RF power

≤100W



Overstressed Fault Mode

Mode 3



Voltage standing wave ratio

≤1.12



Insertion loss

≤0.2dB



Characteristic impedance

50Q



Port type

N(F/F-N)



Degree of protection

IP 67



Weight

300g
