Surge Protectors for Signal System

lightning surge protectors for signal system,China Repsun Lightning Protection Technology Co.,Ltd
Surge Protectors for Signal System 02
Surge Protectors for Signal System 03

PRODUCTS DETAIL

Product Picture

Surge Protectors for Signal System 04

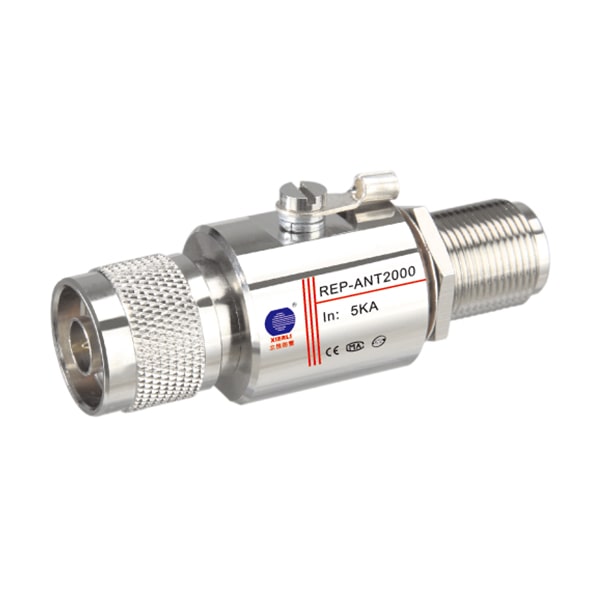

REP-ANT2000

Surge Protectors for Signal System 05

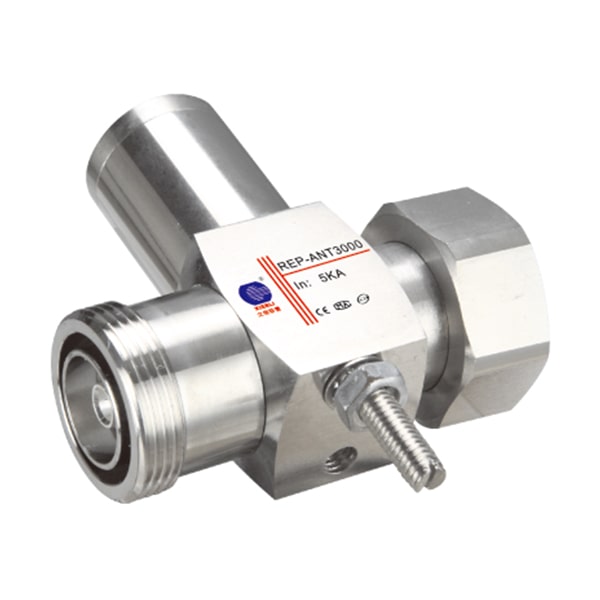

REP-ANT3000

Surge Protectors for Signal System 06

REP-ANT1600

Surge Protectors for Signal System 07

REP-ANT2000
Dimension drawing(mm)

Surge Protectors for Signal System 08

REP-ANT3000
Dimension drawing(mm)

Surge Protectors for Signal System 09

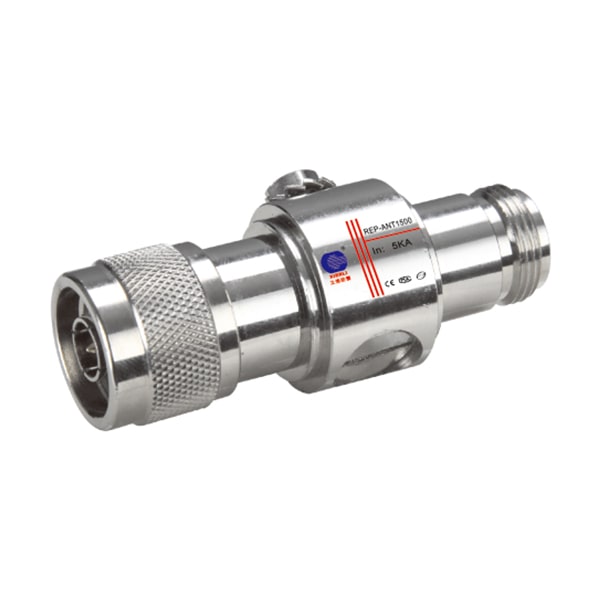

REP-ANT1500
Dimension drawing(mm)

Features

For protecting 50Ω coaxial system, applied in coaxial systems, cell sites and antenna systems, installed at LPZOA-1 interface.
Good discharge capacity, low voltage protection level;
Wide frequency range, high performance transmission;
Metallic housing BNC/N connectioon, easy for installation

Datasheet

TYPE

REP-ANT1500

REP-ANT2000

REP-ANT3000

Port type

N, F, M, 1/4 wave length

N.F.TNC

N,F, L16

Characteristic impedance

50 Q

50 Q

50 Q

Max. output power

300W

300W

300W

Nominal discharge current ln(8/20 u s)

10kA

10k A

10k A

Max.discharge current Imax

20k A

20k A

20k A

Voltage protection level Up

≤300V

≤300V

≤300V

Frequency range fG

950-1500MHz

950-2000MHZ

950-3000MHZ

Standing wave ratio

≤1.2

≤1.2

≤1.2

Degree of protection

IP30

IP30

IP30
