Surge Protector for Signal System

REP-SP series lightning protection spd for signal system
Surge Protector for Signal System 02

PRODUCTS DETAIL

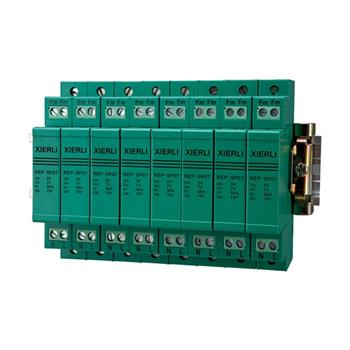

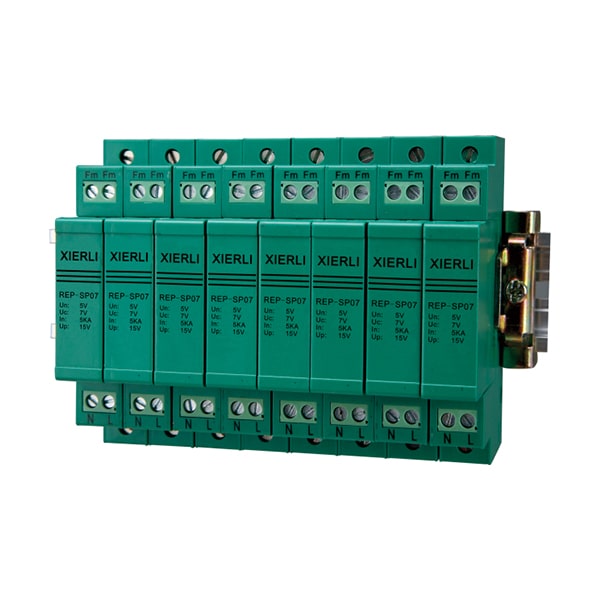

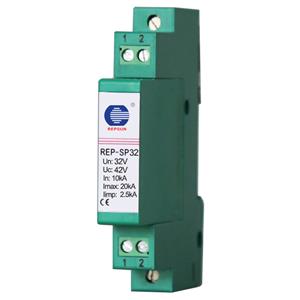

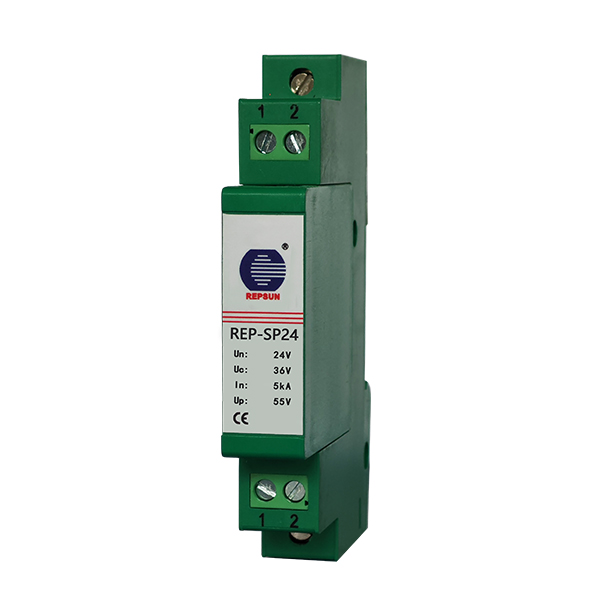

Product Picture

Surge Protector for Signal System 05

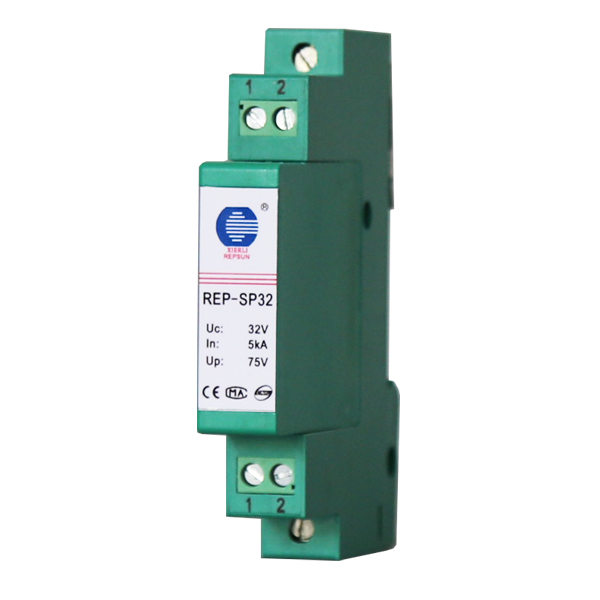

14mm(1P)

Surge Protector for Signal System 06

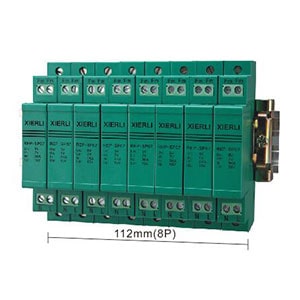

112mm(8P)

Surge Protector for Signal System 03

Basic circuit diagram

Surge Protector for Signal System 04

Dimension drawing(mm)1P

Features

REP-SP can work in the various voltage of 5-60Vdc
Pluggable surge protection for DIN rail easy mounting
Signal transmission is not interrupted when exchanging module
Two-stage protection circuit; suitable to use RS232 or RS485 surge protection
Low insertion impedance without affecting signal transmission
LED light failure indication, and with remote control contact

Datasheet

Type

REP-SP05

REP-SP12

REP-SP24

REP-SP32

REP-SP48

REP-SP60

Nominal d.c. voltage (UN)

5V

12V

24V

32V

48V

60V

Max. ccntimioos operatiog d.c. voltage (UC)

6V

15V

36V

42V

54V

70V

Load current insertion

200mA

200mA

200mA

1000mA

1000mA

1000mA

Nominal discharge current (8/20 μs)  (In)

5kA

Max discharge current (8/20 μs) (Imax)

10kA

Voltage protection level (Up@ln) (L-L)

≤15V

≤27V

≤55V

≤85V

≤100V

≤270V

Voltage protection level  (Up@In) (L-PE)

≤600V

≤600V

≤600V

≤600V

≤600V

≤600V

Insertion resistance

0.2Q

Installation rail

35mm DIN60715

Operating temperature range (TU)

-40 °C~+80°C

Degree of protection

Ip20

Enclosure material

PBT

Test standards

IEC61000-4-5; IEC61643:21

Online Replacement

Yes
