SPD for Signal System（REP-SD32)
PRODUCTS DETAIL

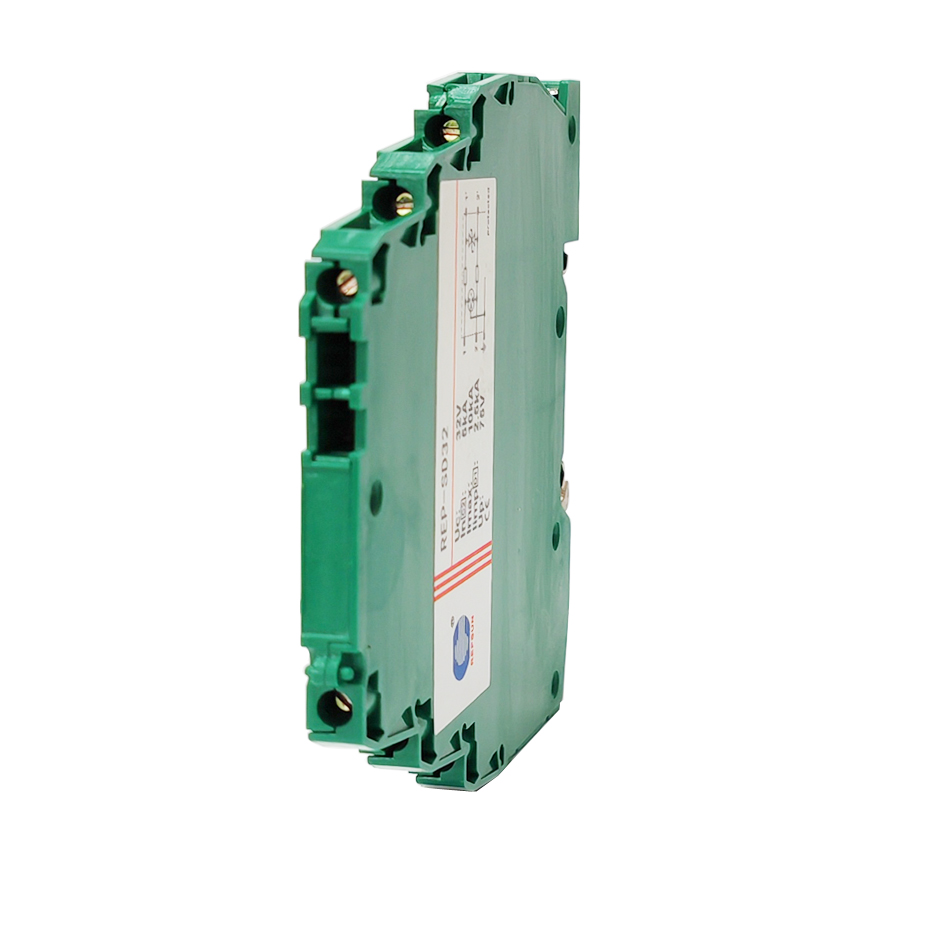

Product Picture
Features
● Provides reliable lightning protection for electrical circuits across diverse
industrial applications.
● Ensures the highest-level defense for sensitive signals in acquisition,
transmission, and communication.
● Ultra-compact modules allow dense installation and protect mixed 2- or 3-wire
systems simultaneously.
● Perfect for RTDS, THCS, 4–20 mA loops, and other telemetry signal protection.
industrial applications.
● Ensures the highest-level defense for sensitive signals in acquisition,
transmission, and communication.
● Ultra-compact modules allow dense installation and protect mixed 2- or 3-wire
systems simultaneously.
● Perfect for RTDS, THCS, 4–20 mA loops, and other telemetry signal protection.
Datasheet
|
Type |
REP-SD32 |
| Max.continuous operating d.c.voltage(Uc) | 32V |
| Rated current | 0.5A |
| Max.discharge current | 10KA |
| Nominal discharge current | 5KA |
| Voltage protection level (InC2)(X-X) Up | ≤110V |
| Voltage protection level (InC2)(X-PE) Up | ≤65V |
| Voltage protection level (1KV/C3μs)(X-X) Up | ≤90V |
| Voltage protection level (1KV/C3μs)(X-PE) Up | ≤45V |
| Series impedance | 1.8Ω |
| Response time | 10MHz |
|
Inter-line capacitance |
≤0.5nF |
|
Line-to-ground capacitance |
≤1nF |
| Protection mode | Balanced/Unbalanced(Selectable) |
| Grounding method | Direct Grounding/Indirect Grounding(Selectable) |
| Operating temperature range | -40℃～+80℃ |
| Degree of protection | Ip20 |
| Installation rail | 35mmDIN rail |
| Connection method | Screw Terminal |
| Connection conductors | 0.08～0.25mm² |
|
Enclosure material |
Thermoplastic 66 |
|
Test standards |
IEC 61643-21 GB18802 |
 |
|
