Surge Protectors for Signal System

PRODUCTS DETAIL

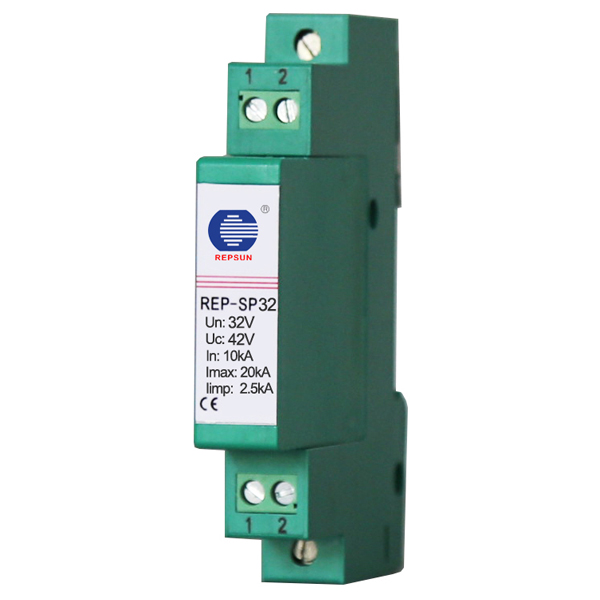

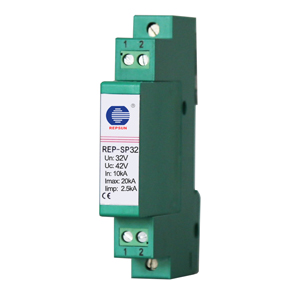

Product Picture

32-web-

REP-SP32

front-web-

side-web-

Dimension drawing(mm)

Diagram-web-

Basic circuit diagram

Features

● REP-SP can work in the various voltage of 5-60Vdc.

● Pluggable surge protection for DIN rail easy mounting.

● Signal transmission is not interrupted when exchanging module.

● Two-stage protection circuit; suitable to use RS485 surge protection.

● Low insertion impedance without affecting signal transmission.

● LED light failure indication, and with remote control contact.

Datasheet

Type	REP-SP32
Category IEC/EN	D1/C1/C2/C3
Nominal operating voltage (Un)	32V
Max. continuous operating d. c. voltage (Uc)	42V
C2 Nominal discharge current (8/20μs) (In)	10kA
Max. discharge current (8/20) (Imax)	20kA
D1 impulse current (8/20μs) (Iimp)	2.5kA
Respond time (L-L) dan (L-PE)	＜ 5ns / ＜ 100ns
Insulation Resistance (L-L) dan (L-PE)	＞33M Ω /＞ 1G Ω/ 100V
Transverse capacitance (L-L) dan (L-G)	50pF / 5pF
Cut-off frequency	30MHz
