Surge Protectors for Signal System

PRODUCTS DETAIL

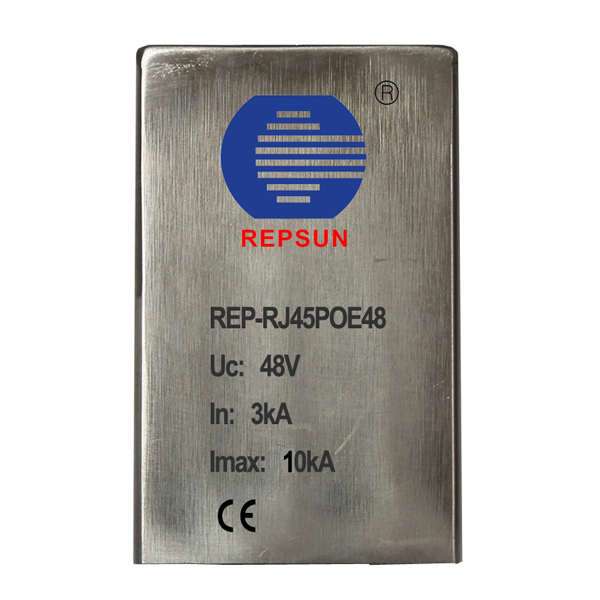

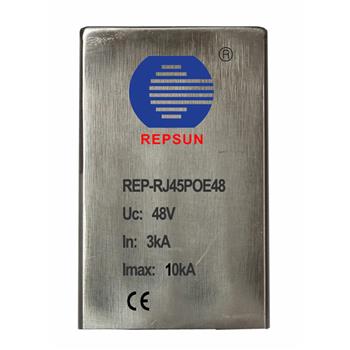

Product Picture

REP-RJ45POE48

Dimension drawing(mm)

Basic circuit diagram

Features

● Surge arrester for Ethernet, Twisted Pair, Cat 6 network systems against surges.

● Network galvanic isolation, protective circuit.

● High discharge capability.

● Simple installation.

Datasheet

Type		REP-RJ45POE48
Standard		IEC 61643-21:2005; EN50173
Nominal operating voltage (Un)		48V
Max. continuous operating d. c. voltage (Uc)		48V
Nominal discharge current (8/20μs) (In)		3kA
Max. discharge current (8/20μs) (Imax)		10 A
Voltage protection level @C2(8/20μs)Up		190V
Voltage protection level @C3(8/20μs)Up		145V
Nominal Current(A) (IL)		200mA
Transmission Speed(bps)		1000Mbps
Connection Rate/Protocol		1000 Base/POE
Frequency range		1MHZ~100MHZ
Impulse Voltage		＞15kV
Insulation Resistance		＞500MΩ (500 Vdc Primary and secondary)
Near End Crosstalk (NEXT)		＞30.1dB
Material		Stainless steel,IP67
Installation		Input(female connector); Output(femail connector);Grounding cable
