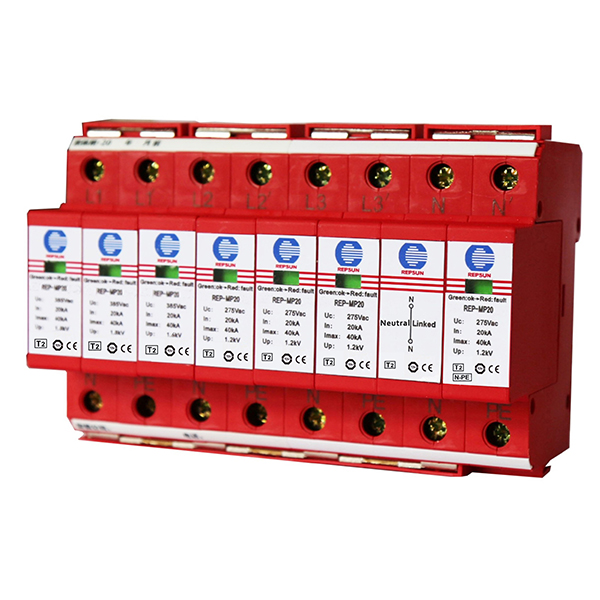

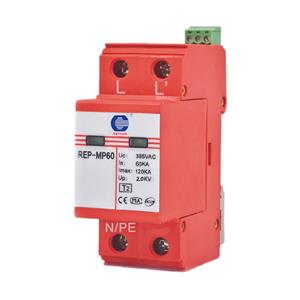

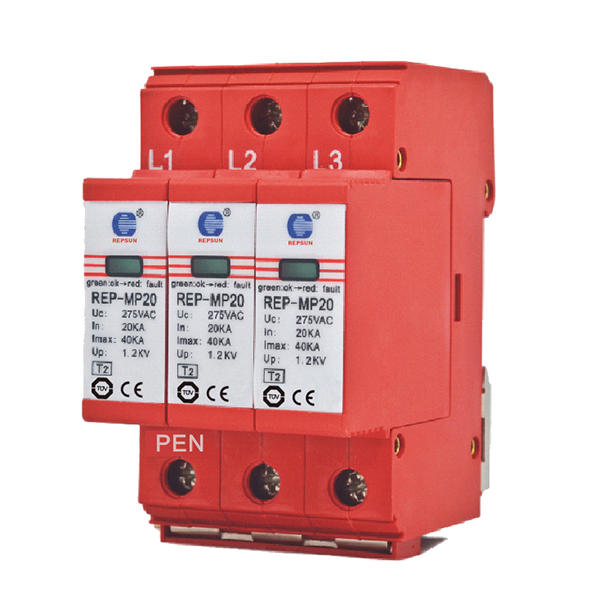

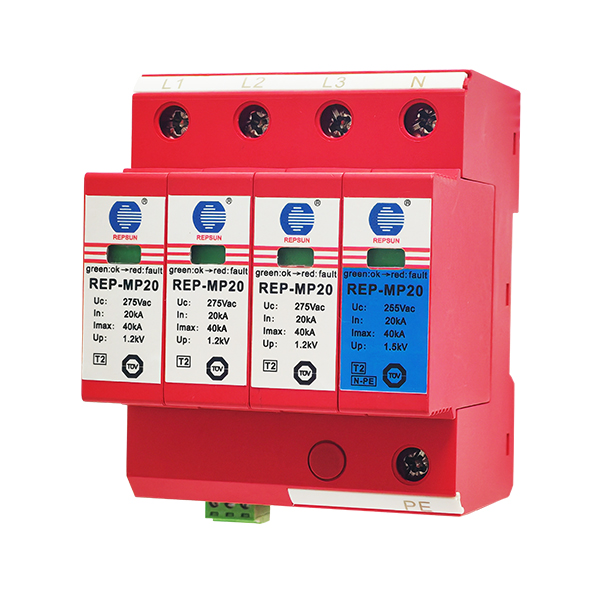

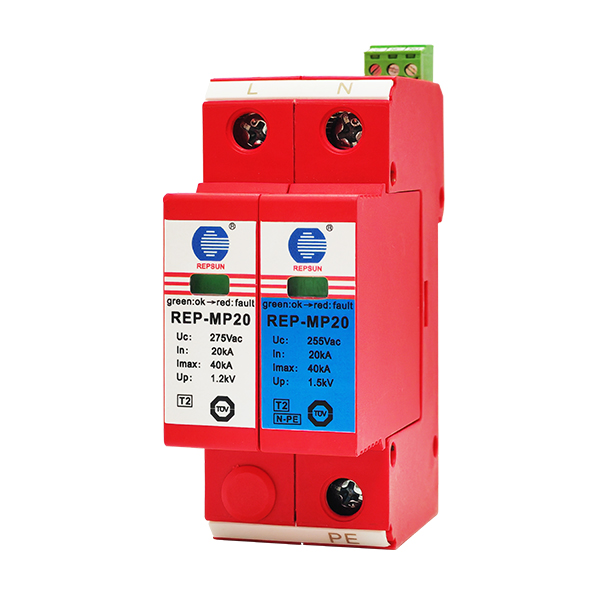

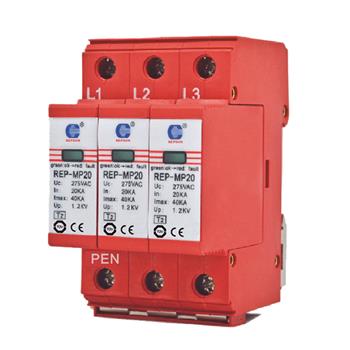

Surge Protectors for AC Power Supply System(T2)

Integrated fuse surge protector with pluggable design, applied in TT/TN system
Surge Protectors for AC Power Supply System (T2) 02
Surge Protectors for AC Power Supply System (T2) 03
Surge Protectors for AC Power Supply System (T2) 04
Surge Protectors for AC Power Supply System (T2) 04

PRODUCT DETAILS

Product Picture

Surge Protectors for AC Power Supply System(T2) 05

(L-N/PE)
(N-PE)

Surge Protectors for AC Power Supply System(T2) 06

(1+1)
(2+0)

Surge Protectors for AC Power Supply System(T2) 07

(3+0)

Surge Protectors for AC Power Supply System(T2) 08

(3+1)
(4+0)

Surge Protectors for AC Power Supply System(T2) 09

Dimension drawing(mm)2P

Surge Protectors for AC Power Supply System(T2) 10

Basic circuit diagram

Features

Type2 surge protector comply with IEC61643-11;
Reliable supervision due to double integrated disconnection devices;
Low voltage protection level;
Optional to use without a fuse;
Pluggable design, 2+1 protection mode;
Remote alarm terminal optional.

Datasheet

Model REP-MP20T2-XXX-XS
The SPD according to IEC 61643-1/11 II/T2
Maximum continuous voltage Uc 440Vac; 385Vac; 320Vac; 275Vac; 150Vac
Impulse discharge current limp(10/350μs)(N-PE) 12.5kA;       /     ; 12.5kA;      /       ; 12.5kA
Nominal discharge current(8/20μs)In 20kA
Maximum discharge current(8/20μs)Imax 40kA
Voltage protection level Up@In ≤2.0kV; ≤1.8kV; ≤1.5kV; ≤1.2kV; ≤1.1kV
Response time(t.) 25ns
Recommend backup fuse 16A gL/gG
Temporary overvoltage(TOV)Ut 580V/5sec.; 440V/5sec.; 440V/5sec.; 385V/5sec.; 210V/5sec.
Operating temperature range -40℃~+80℃
The minimum cross-sectional area of installation 1.5mm² solid/flexible
The maximum cross-sectional area of installation 25mm² solid/flexible
Installation 35mm DIN rail, accoeding to EN 60715
Remote alarm contact NO/NC/C, Isolated form C
Remote alarm contact capability Un/In AC:250/0.5A   DC:250V0.1A;75V/0.5A
Remote  alarm contact connecting wire Max.1.5mm² or#16AWG
Degree of protection IP20
Size  1 modules; 8 modules; 4 modules; 2 modules; 2 modules
Certification TUV
