PRODUCTS DETAIL

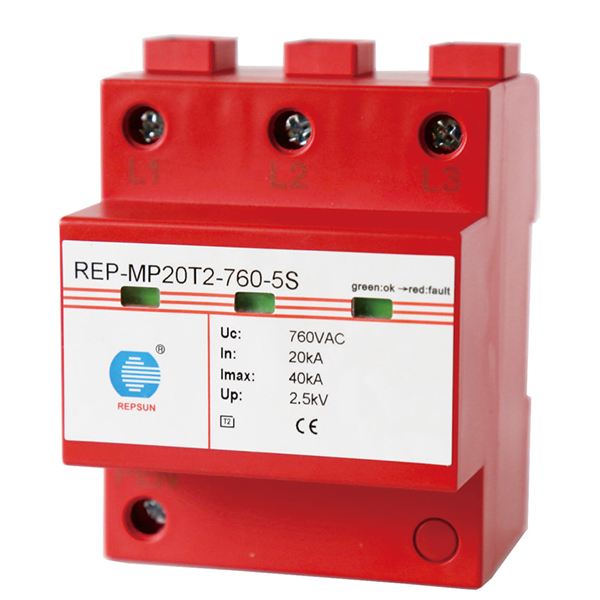

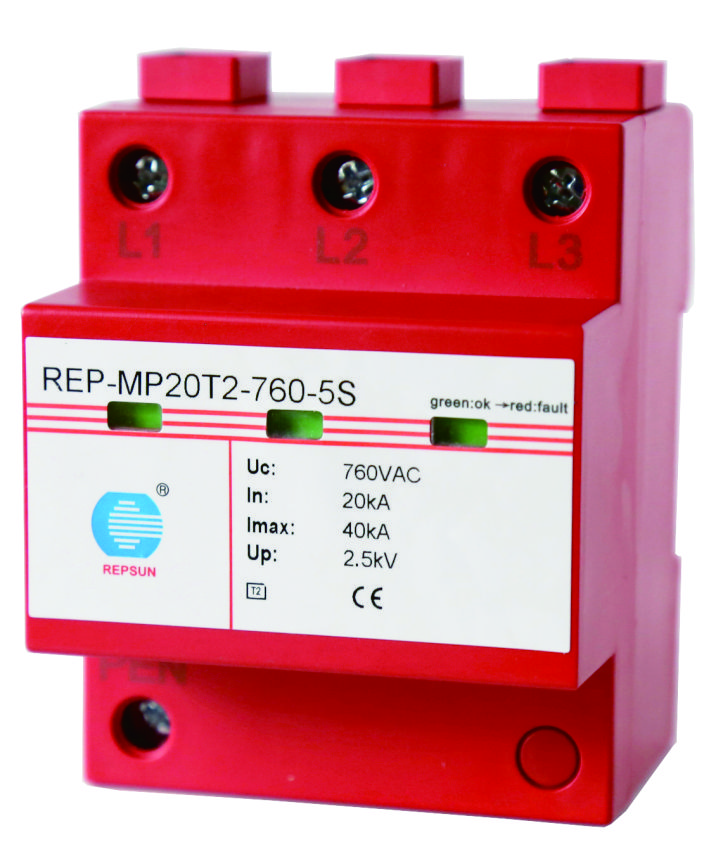

Product Picture
REP-MP20 Series（Wind turbine)
Features
Datasheet
| Type |
REP-MP20T2-760-5S
|
|||||
| The SPD according to IEC/EN 61643-1/-11 |
Type 2
|
|||||
|
Nominal AC voltage(Un)
|
690Vac
|
|||||
| Maximum continuous operating voltage(Uc) |
760Vac
|
|||||
| Nominal discharge current(8/20μs)(In) | 20kA | |||||
| Maximum discharge current(8/20μs)(Imax) | 40kA | |||||
| Voltage protection level(Up)@20kA(8/20μs) |
≤5kV
|
|||||
|
Voltage protection level(Up)@5kA(8/20μs)
|
≤2.5kV
|
|||||
|
Response time
|
≤25ns
|
|||||
|
Backup fuse
|
315AgL/gG
|
|||||
|
Temporary overvoltage(TOV) (UT)
|
900V / 5sec.
|
|||||
|
Temporary overvoltage(TOV) (UT)Characteristic
|
Withstand
|
|||||
|
Remote alarm contact
|
Remote alarm contact optional
|
|||||
|
Remote alarm contact capability (Un/In)
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
|||||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
|||||
|
Remote communication contact type
|
Float switch contact
|
|||||
|
Ac switching capacity
|
250V/0.1A
|
|||||
|
Operating temperature range
|
-40℃~+80℃
|
|||||
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
|||||
|
The minimum cross-sectional area of installation
|
4 mm² solid/flexible
|
|||||
|
The maximum cross-sectional area of installation
|
25 mm² flexible
|
|||||
|
Installation
|
35mm DINrail,according to EN 60715
|
|||||
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
|||||
|
The installation location
|
Indoor
|
|||||
|
Degree of protection
|
IP20
|
|||||
|

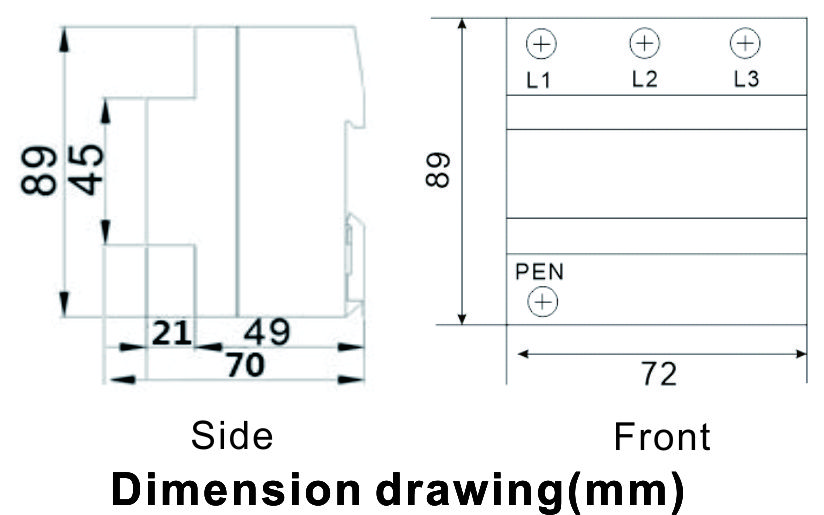

Size
|
4 modules
|
|||||
 |
 |
|||||
