Surge Protectors for AC Power Supply System(T2)

IEC/EN 61643 Lightning Surge SPD REP-MP40T2
Surge Protectors for AC Power Supply System(T2) 02
Surge Protectors for AC Power Supply System(T2) 03
Surge Protectors for AC Power Supply System(T2) 04

PRODUCTS DETAIL

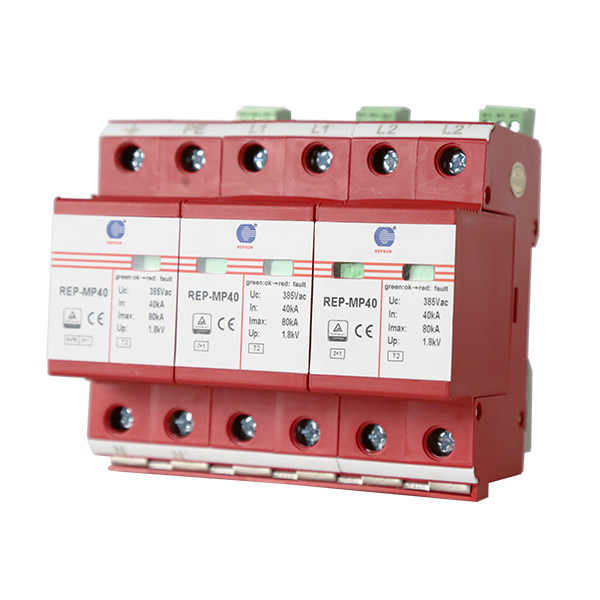

Product Picture

Surge Protectors for AC Power Supply System(T2) 05

(L-N/PE)
(N-PE)

Surge Protectors for AC Power Supply System(T2) 06

(1+1)
(2+0)

Surge Protectors for AC Power Supply System(T2) 07

(3+0)

Surge Protectors for AC Power Supply System(T2) 08

(3+1)
(4+0)

Surge Protectors for AC Power Supply System(T2) 09

Dimension drawing(mm)2P

Surge Protectors for AC Power Supply System(T2) 10

Basic circuit diagram

Features

Type2 surge protector SPD
Fast response(≤25ns); low protection level (≤2.0kV)
Reliable safety due to double integrated disconnectors with double protections
Optional to use without a back up fuse
Failure indication window, remote alarm terminal optional

Datasheet

Type

REP-MP40T2-XXX-XS

The SPD according to IEC/EN 61643

II/T2

Maximum continuous vottage Uc[L-N]

440Vac

385Vac

320Vac

275Vac

150Vac

Maximum continuous voltage Uc [N-PE]

255Vac

Nominal discharge current(8/2〇μs)ln

40kA

Maximum discharge currenl(8/20μs)lmax

80kA

Voltage protection level Up [L-N]

≤2.2kV

≤2.0kV

≤1.8kV ≤1.5kV

≤1.2kV

Voltage protection level Up [N-PE]

<1.8kV

Response time

25ns[L-N/PE]/100ns[N-PE]

Operating temperature range

-40°C~+80°C

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Failure indication

Red: failure Green: normal

Enclosure material

Thermoplastic; extinguishing degree UL94-V0

Technical feature

Double integrated disconnection devices with double protections
