Power Surge Protector (Class C / Type 2)

REP-MP40/60 lightning surge spd for power supply system

PRODUCTS DETAIL

Product Picture

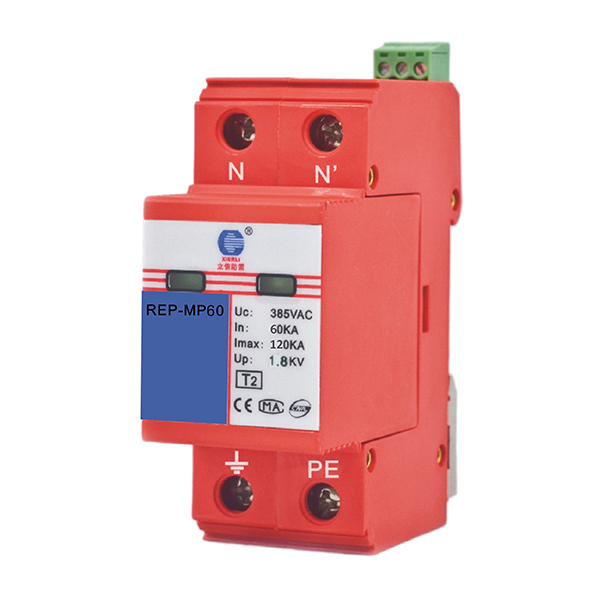

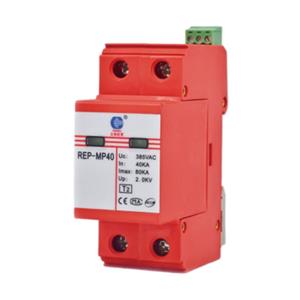

Power Surge Protector (Class C / Type 2) 02

Part No

(MP40):115170
(MP60):115160
(MP40NPE):115178
(MP60NPE):115168
(One pole)

Power Surge Protector (Class C / Type 2) 03

Part No

(MP40):115172(2+0)、115171(1+1)
(MP60):115162(2+0)、115161(1+1)

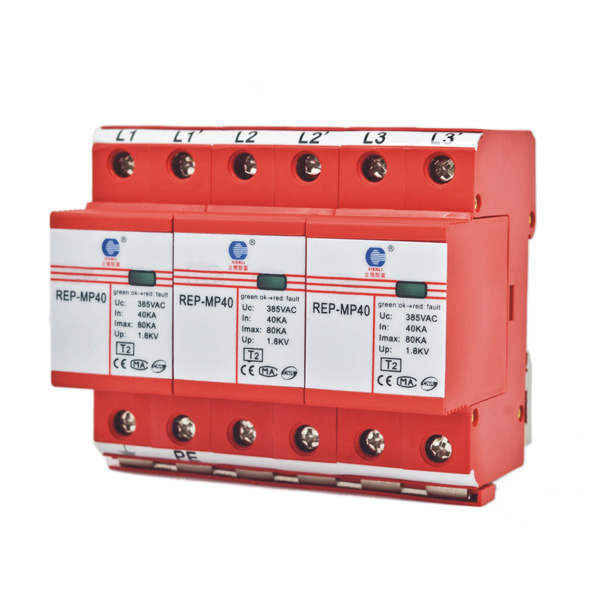

Power Surge Protector (Class C / Type 2) 04

Part No

(MP40):115173
(MP60):115163
(3+0)

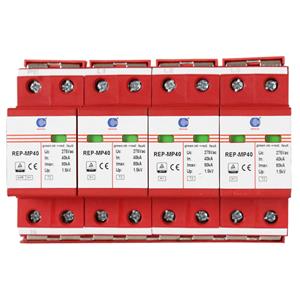

Power Surge Protector (Class C / Type 2) 05

Part No

(MP40):115175(3+1)、115174(4+0)
(MP60):115165(3+1)、115164(4+0)

Power Surge Protector (Class C / Type 2) 06

Side (mm)

Power Surge Protector (Class C / Type 2) 07

Front (mm)(4P)

Power Surge Protector (Class C / Type 2) 08

Diagram (3+1)

Features

Type2 surge protector comply with IEC61643-11;

Low voltage protection level;

Reliable supervision due to double integrated disconnection devices;

Optional to use without a fuse;

Remote alarm terminal optional.

Datasheet

Type

REP-MP40

REP-MP60

REP-MP40NPE

REP-MP60NPE

The SPD according to IEC61643:11

II/T2

II/T2

II/T2

II/T2

Nominal AC voltage (Un)

230/400VAC

230/400VAC

230/400VAC

230/400VAC

Maximum continuous voltage (Uc)

385VAC

385VAC

385VAC

385VAC

Nominal discharge current (8/20)In

40kA

60kA

40kA

60kA

Maximum discharge current (8/20)Imax

80kA

120kA

80kA

120kA

Voltage protection level (Up)

1.8kV

1.8kV

2.0kV

2.5kV

Response time

25ns

25ns

100ns

100ns

Operating temperature range

-40℃~+80℃

The minimum cross-sectional area of installation

1.5mm² solid/flexible

The maximum cross-sectional area of installation

25mm² solid/flexible

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Failure indication

Green: Normal ; Red: Failure

Enclosure material

Flame retardant material UL94-V0

Installation Diagram

Power Surge Protector (Class C / Type 2) 09
Power Surge Protector (Class C / Type 2) 10
Power Surge Protector (Class C / Type 2) 11
Power Surge Protector (Class C / Type 2) 12
Power Surge Protector (Class C / Type 2) 13

Installation Details

Power Surge Protector (Class C / Type 2) 15

Installation

Power Surge Protector (Class C / Type 2) 16

Failure Indication

Power Surge Protector (Class C / Type 2) 17

Installation location

Standard

1. IEC 61643:11-2016
2. UL 1449 4th

Request A Quote

refresh!

Related Products

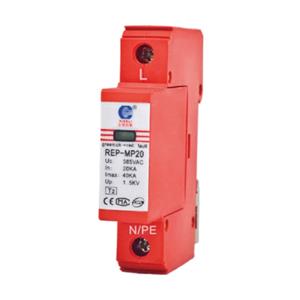

Surge Protectors for AC Power Supply System (T2)
