REP-PV1500 Series

PRODUCTS DETAIL

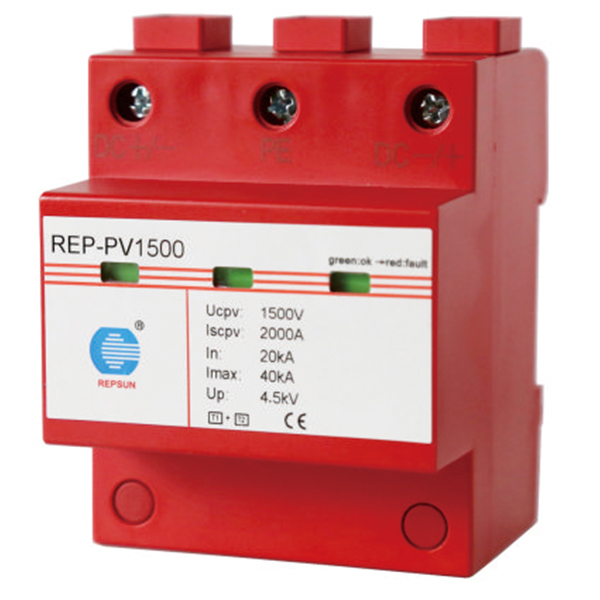

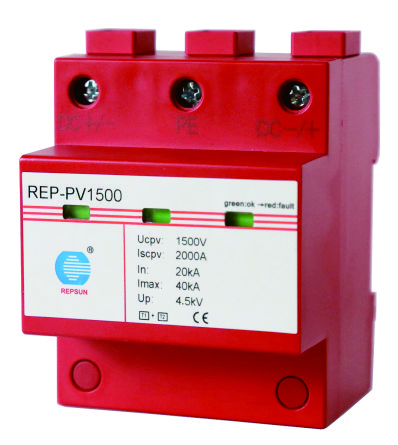

Product Picture

REP-PV1200 Series

Features

●Combined disconnection and short-circuiting device with safe electrical isolation in the protection module.

●High reliability due to dual integrated disconnection devices.

●More reliable over-current protection modules with arc extinguish thanks to integrated d.c. fuse.

●Enough safety distanec with creepage distance more than 30mm.

Datasheet

Type	REP-PV1500
According to EN50539-11;IEC/EN 61643-31	Type 2
Normal voltage(DC)Un	1500V
Max. continuous operating voltage(DC)Ucpv		1675V
Short circuit tolerance(Iscpv)	2000A
Nominal discharge current(8/20μs) [(DC+/DC-)→PE] (In)	20kA
Maximum discharge current(8/20μs) [(DC+/DC-)→PE] (Imax)	40kA
Total discharge current(8/20μs) [(DC+/DC-)→PE] (Itotal)	80kA
Total discharge current(10/350μs) [(DC+/DC-)→PE] (Itotal)	12.5kA
Lightning Impulse Current (10/350μs) [(DC+/DC-)->PE) (Iimp)	6.25kA
Voltage protection level(Up)	≤4.5kV
Recommended series connection overcurrent protector	63A/35KA
Response time	25ns
Leakage current	≤10μΑ
Internal overheating circuit breaker	Built-in
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
Connecting wire	≥4mm²

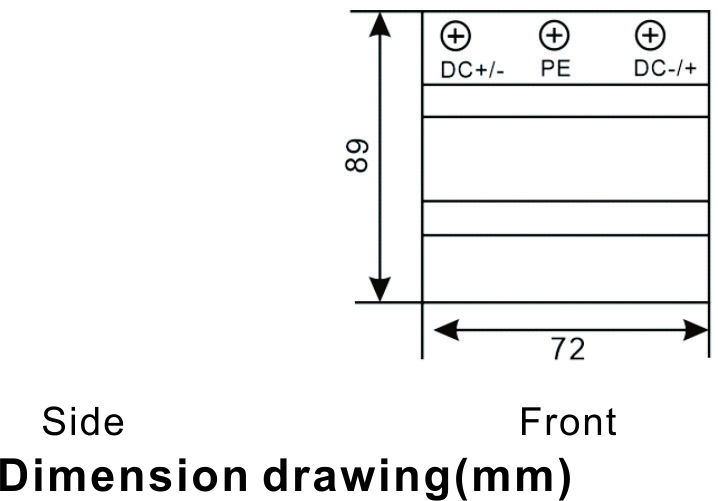

Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
Degree of protection	IP20
Size	4 modules
