REP-MP60 Series(wind turbine)

PRODUCTS DETAIL

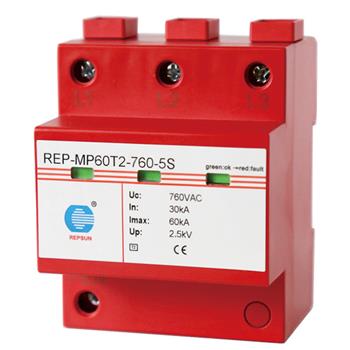

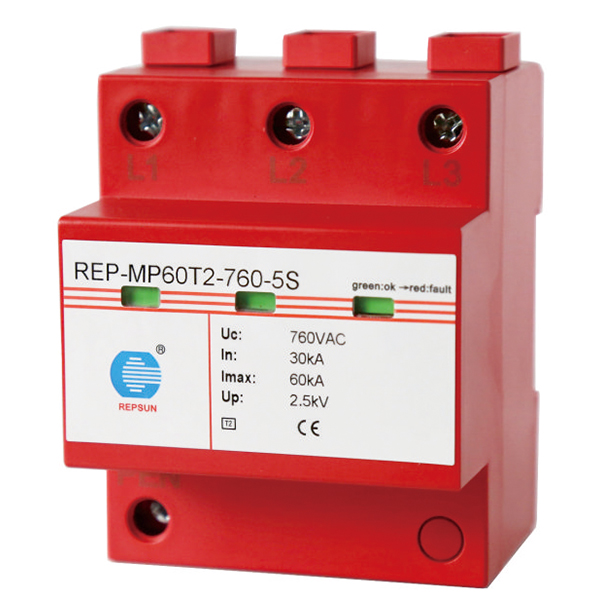

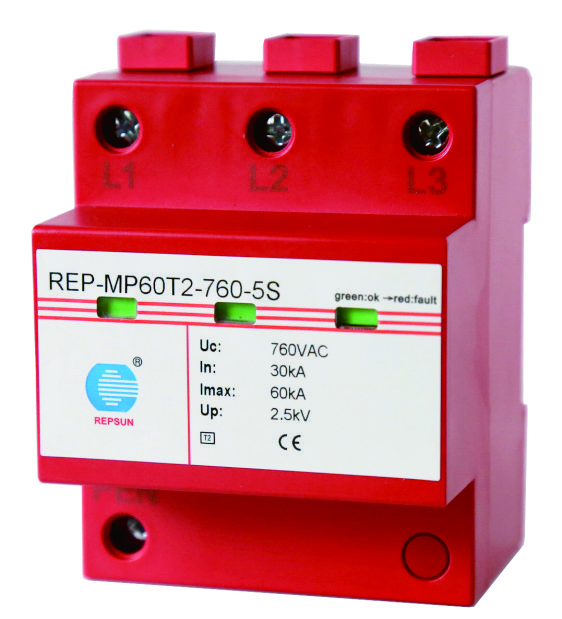

Product Picture

MP60-760

REP-MP60 Series（Wind turbine)

Features

●Type2 surge protector comply with IEC61643-11.

●Reliable supervision due to double integrated disconnection devices.

●Low voltage protection level.

●Optional to use without a fuse.

●Remote alarm terminal optional.

Datasheet

Type	REP-MP60T2-760-5S
The SPD according to IEC/EN 61643-1/-11	Type 2
Nominal AC voltage(Un)	690Vac
Maximum continuous operating voltage(Uc)	760Vac
Nominal discharge current(8/20μs)(In)	30kA
Maximum discharge current(8/20μs)(Imax)	60kA
Voltage protection level(Up)@20kA(8/20μs)	≤5kV
Voltage protection level(Up)@5kA(8/20μs)	≤2.5kV
Response time	≤25ns
Backup fuse	315AgL/gG
Temporary overvoltage(TOV) (UT)	900V / 5sec.
Temporary overvoltage(TOV) (UT)Characteristic	Withstand
Remote alarm contact	Remote alarm contact optional
Remote alarm contact capability (Un/In)	AC:250/0.5A DC:250V/0.1A;75V/0.5A
Remote alarm contact connecting wire	Max.1.5mm² or#16AWG
Remote communication contact type	Float switch contact
Ac switching capacity	250V/0.1A
Operating temperature range	-40℃~+80℃
Work/Fault indicator	Green: Normal ; Red: Failure
The minimum cross-sectional area of installation	4 mm² solid/flexible
The maximum cross-sectional area of installation	25 mm² flexible
Installation	35mm DINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94v-0
The installation location	Indoor
Degree of protection	IP20

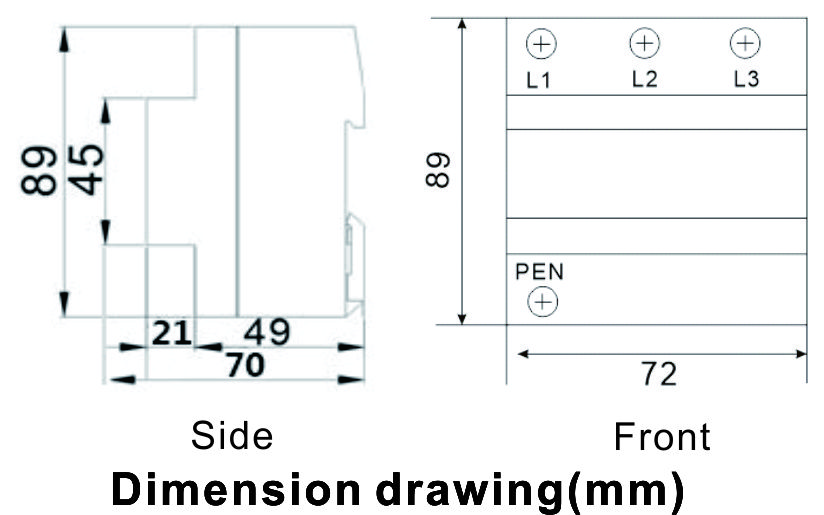

Size	4 modules
