PRODUCTS DETAIL

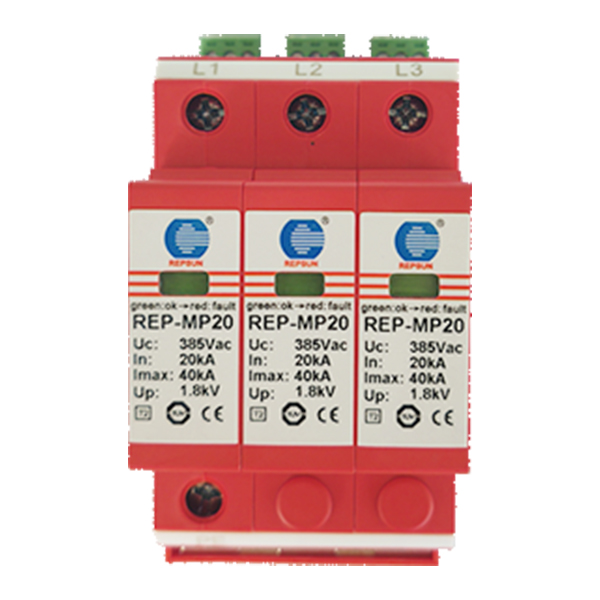

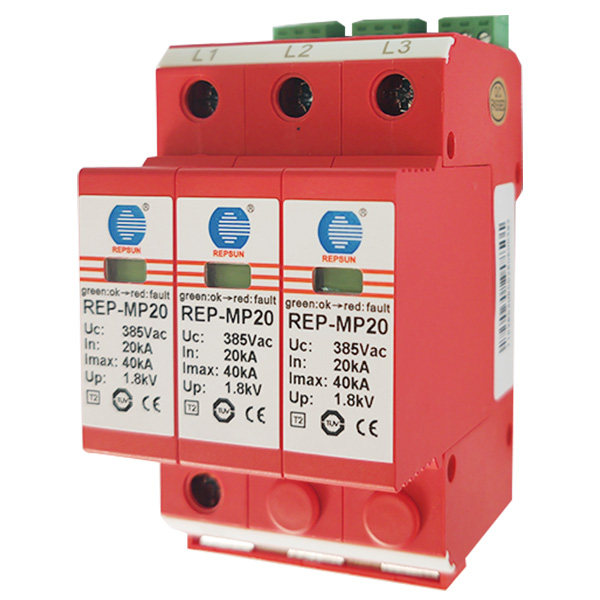

Product Picture
(REP-MP20T2-385-5S)54mm
Features
Type2 surge protector comply with IEC61643-11;
Datasheet
|
Type |
REP-MP20T2-385-5S |
|
The SPD according to IEC/EN 61643-11 |
Type 2
|
|
Energy coordination with termini equipment (≤5m) |
T2 |
|
Nominal AC voltage(Un) |
690Vac |
|
Maximum continuous voltage(Uc) |
385Vac |
|
Nominal discharge current(8/20) ln(L-N/N-PE) |
20kA |
|
Maximum discharge current(8/20) lmax(L-N/N-PE) |
40kA |
|
Response time |
≤25ns |
|
Short-circuit withstand capability Isccr
|
25kArms
|
|
Voltage protection level Up @ln |
1.8kV
|
|
Backup fuse
|
125Agl/gG
|
|
Temporary overvoltage(TOV) Ut
|
440V / 5sec.
|
|
Temporary overvoltage(TOV) Ut Characteristic
|
Withstand |
|
Remote alarm contact
|
NO/NC/C, Isolated Form C
|
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
|
Remote alarm contact connecting wire |
Max.1.5mm² or#16AWG
|
|
Remote communication contact type |
Float switch contact
|
|
Ac switching capacity
|
250V/0.1A
|
|
Operating temperature range |
-40℃...+80℃ |
|
Work/Fault indicator
|
Green: Normal ; Red: Failure |
|
The minimum cross-sectional area of installation
|
2.5mm²solid/flexible |
|
The maximum cross-sectional area of installation
|
16mm²flexible |
|
Installation
|
35mm DINrail,according to EN 60715
|
|
Enclosure material |
Red thermoplastic material ,UL 94v-0
|
|
The installation location
|
Indoor
|
|
Degree of protection |
IP20 |
|
Size |
3 modules |
|
Certification
|
TUV
|
