Surge Protector for PV1000

Surge Protector for PV1000

PRODUCT DETAILS

Product Picture

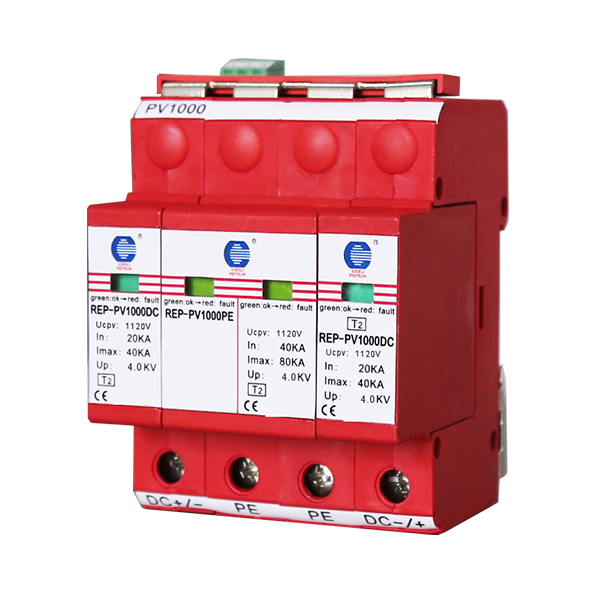

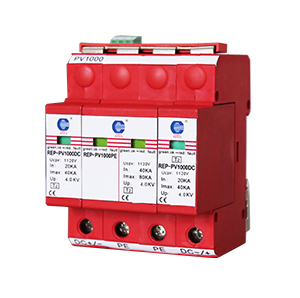

pv1000-3x2

(REP-PV1000)

pv600-front-3x2

pv600-side-3x2

Dimension drawing(mm)

pv600-dia-3x2

Basic circuit diagram

Features

Integrate fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation.
High reliability due to dual integrated disconnectiondevices.
More reliable over-current protection thanks tointegrated d.c. fuce.
Enough safety distance with creepage distance more than 30mm.



Datasheet

Model
REP-PV1000
The SPD according to IEC 61643-31:2018, EN 61643-31:2019
Type1+Type 2
Maximum continuous operating voltage (DC) Ucpv
1000V
Short circuit tolerance (Iscpv)
2000A
Nominal discharge current(8/20μs)[(DC+/DC-)→PE] In
20kA
Maximum discharge current(8/20μs)[(DC+/DC-)→PE] Imax
40kA
Lightning Impulse Current (10/350μs)[(DC+/DC-)->PE) (Iimp)
6.25kA
Voltage protection level(Up)
≤4.5kV
Recommended series connectionovercurrent protector
63A/35kA
Response time(t.)
25ns
Leakage current
≤10μΑ
Internal overheating circuit breaker
Built-in
Operating temperature range
-40℃~+80℃
Work/Fault indicator
Green: Normal ; Red: Failure
Connecting wire
≥4mm²
Installation
35mm DINrail,according to EN 60715
Enclosure material
Red thermoplastic material ,UL94 V-0
Degree of protection
IP20
Size
4 modules
