PV DC SPD Family--Type V

PRODUCT DETAILS

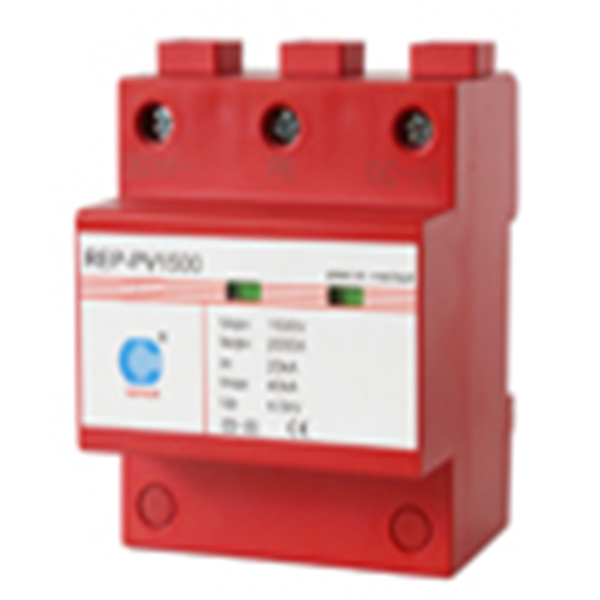

Product Picture

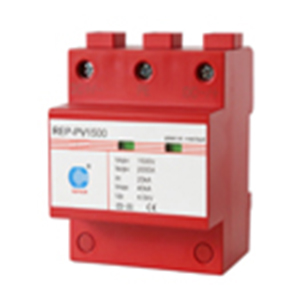

PV1500-3x2

Dimension drawing(mm)

----_20240513145717

Basic circuit diagram

Features

Integrate fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation.

High reliability due to dual integrated disconnectiondevices.

More reliable over-current protection thanks tointegrated d.c. fuce.

Enough safety distance with creepage distance more than 30mm.

Datasheet

Model	REP-DC48-V	REP-DC75-V	REP-DC100-V	REP-DC150-V	REP-DC200-V	REP-DC300-V	REP-DC400-V	REP-DC500-V	REP-DC600-V
The SPD according to IEC 61643-31:2018, EN 61643-31:2019	Type1+Type 2
Protection mode	DC+ to DC- or DC+/- to PE
Maximum continuous operating voltage (DC) Ucpv	48V	75V	100V	150V	200V	300V	400V	500V	600V
Nominal discharge current (8/20μs) In	20kA
Maximum discharge current (8/20μs) Imax	40kA
Lightning impulse current (10/350μs) Iimp	7.5kA	7.5kA	7.5kA	7.5kA	7.5kA	7.5kA	7.5kA	6kA	4.5kA
Voltage protection level Up (DC+/- to PE)	0.6kV	0.6kV	0.7kV	0.8kV	1.0kV	1.2kV	1.5kV	2.0kV	2.2kV
Voltage protection level Up (DC+ to DC-)	1.0kV	1.0kV	1.2kV	1.5kV	2.0kV	2.2kV	2.8kV	3.5kV	4.0kV
Response time tA	≤25ns
Leakage current Ipe	<0.1mA
Short-circuit current Iscpv	2000A
Operating temperature range	- 40ºC ~ + 85ºC
Altitude	-500m ~ +4000m
Cross-section of connection wire (max)	Single-strand 35mm² ; multi-strand 25mm²
Mounting	35mm DIN-rail in accordance with EN 50022/DIN46277-3
Enclosure material	Thermoplastic; extinguishing degree UL94 V-0
Degree of protection	IP20
Installation width	4 modules, DIN 43880
Thermal disconnector	Internal Green – normal ; Red - failure
Remote alarm contact	Optional
Approvals, certifications	TUV,CE
Additional data for remote alarm contacts	/
Remote alarm contact type	Isolated Form C
Switching capability Un/In	AC: 250V/0.5A DC: 250V/0.1A; 125V/0.2A; 75V/0.5A
Cross-section of remote signaling wire	Max. 1.5mm² (or # 16AWG)
