PV DC SPD Family--Type Y

PRODUCT DETAILS

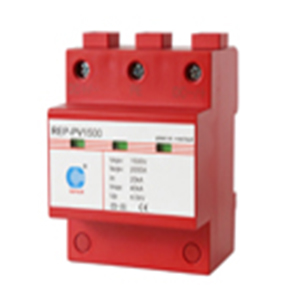

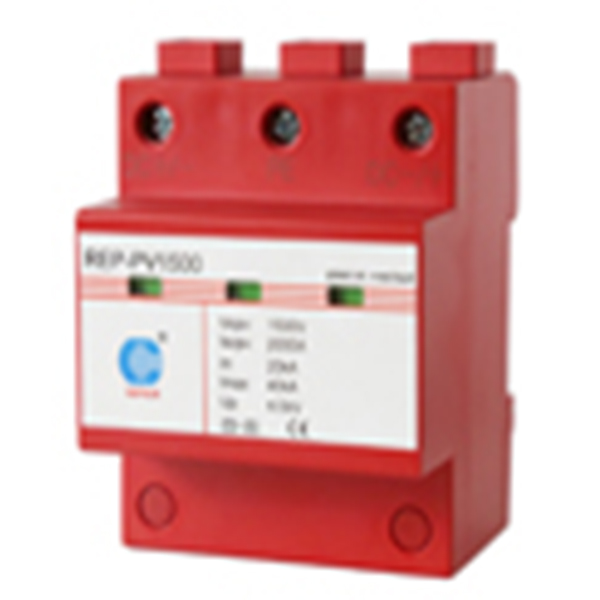

Product Picture

PV1200-3x2

----_20240513145712

Dimension drawing(mm)

----_20240513164241

Basic circuit diagram

Features

Integrate fuse thermal disconnector and mechanical disconnector in the module with safe electrical isolation.

High reliability due to dual integrated disconnectiondevices.

More reliable over-current protection thanks tointegrated d.c. fuce.

Enough safety distance with creepage distance more than 30mm.

C Datasheet

Model	REP-DC600-Y	REP-DC800-Y	REP-DC1000-Y	REP-DC1200-Y	REP-DC1500-Y
The SPD according to IEC 61643-31:2018, EN61643-31: 2019	Type1+Type 2
Protection mode	DC+ to DC- or DC+/- to PE
Maximum continuous operating voltage (DC) Ucpv	600V	800V	1000V	1200V	1500V
Nominal discharge current (8/20μs) In	20kA
Maximum discharge current (8/20μs) Imax	40kA
Lightning impulse current (10/350μs) Iimp	7.5kA	7.5kA	6kA	4.5kA	4.5kA
Voltage protection level Up (DC+/- to PE, DC + to DC-)	2.5kV	2.8kV	3.5kV	4.0kV	4.5kV
Response time tA	≤25ns
Leakage current Ipe	<0.1mA
Short-circuit current Iscpv	2000A
Operating temperature range	- 40ºC ~ + 85ºC
Altitude	-500m ~ +4000m
Cross-section of connection wire (max)	Single-strand 35mm² ; multi-strand 25mm²
Mounting	35mm DIN-rail in accordance with EN 50022/DIN46277-3
Enclosure material	Thermoplastic; extinguishing degree UL94 V-0
Degree of protection	IP20
Installation width	4 modules, DIN 43880
Thermal disconnector	Internal Green – normal ; Red - failure
Remote alarm contact	Optional
Approvals, certifications	TUV,CE
Additional data for remote alarm contacts	/
Remote alarm contact type	Isolated Form C
Switching capability Un/In	AC: 250V/0.5A DC: 250V/0.1A; 125V/0.2A; 75V/0.5A
Cross-section of remote signaling wire	Max. 1.5mm² (or # 16AWG)
