T1+T2 Surge Protector for PV

T1+T2 combination surge protector SPD

PRODUCTS DETAIL

Product Picture

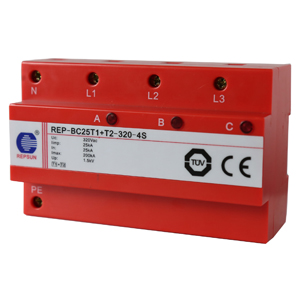

rep-bc25t1t2-320-4s-02

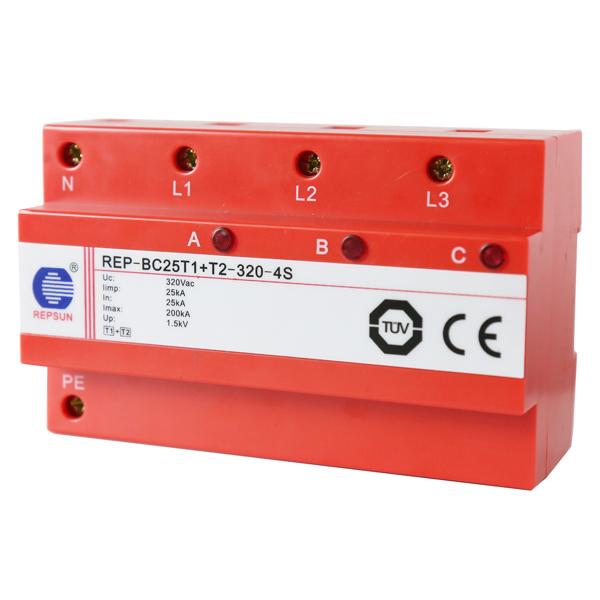

(BC25T1+T2-320-4S)144mm



Features

Combination T1+T2 SPD surge protector;

ClassI+II/B+C surge protector in accordance with IEC61643 and UL1449-4th;

It can fulfill two classes protection in the same place with minimum installation work and space-saving design;

Non exhausting encapsulated spark gap technology with extremely high surge capacity;

High follow current extinction and limitation due to no follow current;

Reliable supervision due to new LTR energy control technology;

With remote signaling contact optional and failure indicator.



Datasheet

Type

REP-BC25T1+T2-320-4S

The SPD according to IEC/EN 61643-11

I+II/T1+T2

Energy coordination with termini equipment (≤5m)

T1+T2

Response time

≤100ns
Nominal AC voltage(Un)
230/400Vac(50/60Hz)

Maximum continuous voltage(Uc)

320Vac(50/60Hz)

Lightning impulse current(10/350μs) limp (L-PE, N-PE)

25kA

Nominal discharge current(8/20μs) ln(L-PE, N-PE)

25kA

Maximum discharge current(8/20μs) lmax(L-PE, N-PE)

200kA

Specific energy(L-PE)/(N-PE)(W/R)
156.25kJ/ohms

Voltage protection level Up @ln

≤1. 5kV

Voltage protection level Up@6kV(1.2/50μs)
≤1.0 kV

Follow current extinguishing capability a.c. Ifi

25kA rms

Follow current limitation/Selectivity

No tripping of a 32 A gG fuse up to 25kArms(prosp)

Temporary overvoltage(TOV)(L-N)(UT)-Characteristic

≥440V/120min.-withstand
Additional abnormal voltage test:485Vac/50Hz for 24h
Withstand
Let-Through-Energy in combination with an MOV S20K275(Iimp=2.5...25kA)

<0.5J

Remote alarm contact

NC/C

Remote alarm contact capability Un/In

AC:250/0.5A        DC:250V/0.1A; 75V/0.5A

Remote alarm contact connecting wire

Max. 1.5mm²  or #16AWG

Operating temperature range

-40℃...+80℃

Fault indicator

Light-off: Normal ; Light-on: Failure

Cross-sectional area(min)

1.5mm²solid/flexible

Cross-sectional area(max)

35mm²flexible

For mounting on

35mm DIN rail

Enclosure material

Red thermoplastic, UL 94 V-0

Degree of protection

IP20

Size

8 modules
