REP-PV1200 Series
PRODUCTS DETAIL

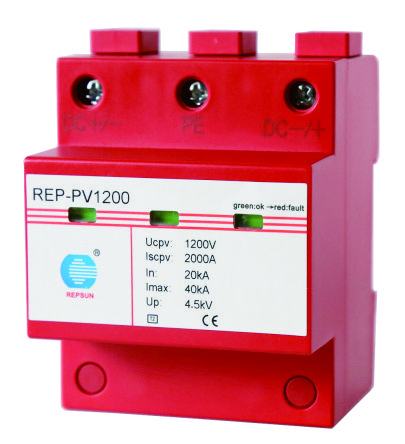

Product Picture

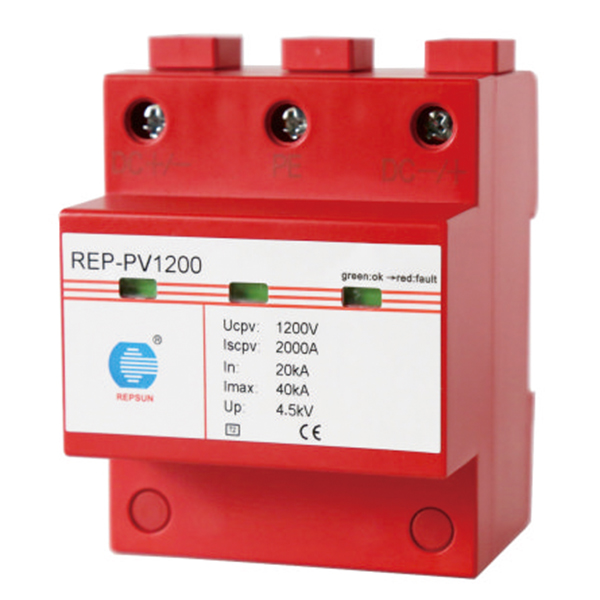

REP-PV1200 Series

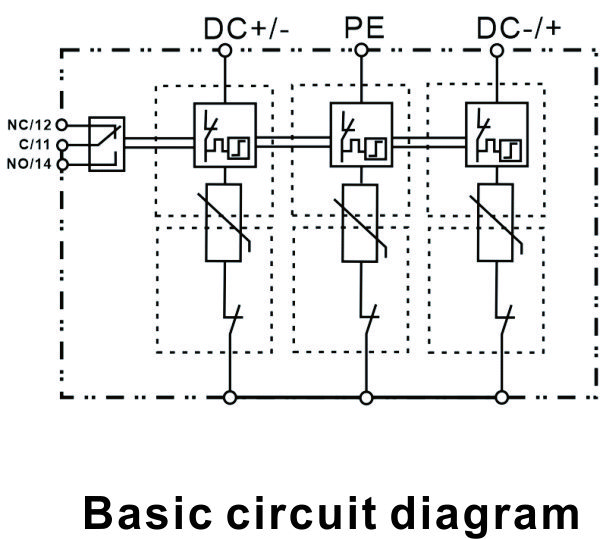

Features
●Combined disconnection and short-circuiting device with safe electrical isolation in the protection module.
●High reliability due to dual integrated disconnection devices.
●More reliable over-current protection modules with arc extinguish thanks to integrated d.c. fuse.
●Enough safety distance with creepage distance more than 30mm.
Datasheet
| Type |
REP-PV1200
|
||
|
According to EN50539-11;IEC/EN 61643-31
|
Type 2
|
||
|
Normal voltage(DC)Un
|
1200V
|
||
|
Max. continuous operating voltage(DC)Ucpv
|
1340V | ||
|
Short circuit tolerance(Iscpv)
|
2000A | ||
|
Nominal discharge current(8/20μs)
[(DC+/DC-)→PE] (In)
|
20kA
|
||
|
Maximum discharge current(8/20μs)
[(DC+/DC-)→PE] (Imax)
|
40kA
|
||
|
Voltage protection level(Up)
|
≤4.5kV
|
||
|
Recommended series connection overcurrent protector
|
63A/35KA
|
||
|
Response time
|
25ns
|
||
|
Leakage current
|
≤10μΑ
|
||
|
Internal overheating circuit breaker
|
Built-in
|
||
|
Operating temperature range
|
-40℃~+80℃
|
||
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
||
|
Connecting wire
|
≥4mm²
|
||
|
Installation
|
35mm DINrail,according to EN 60715
|
||
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
||
|
Degree of protection
|
IP20
|
||
|

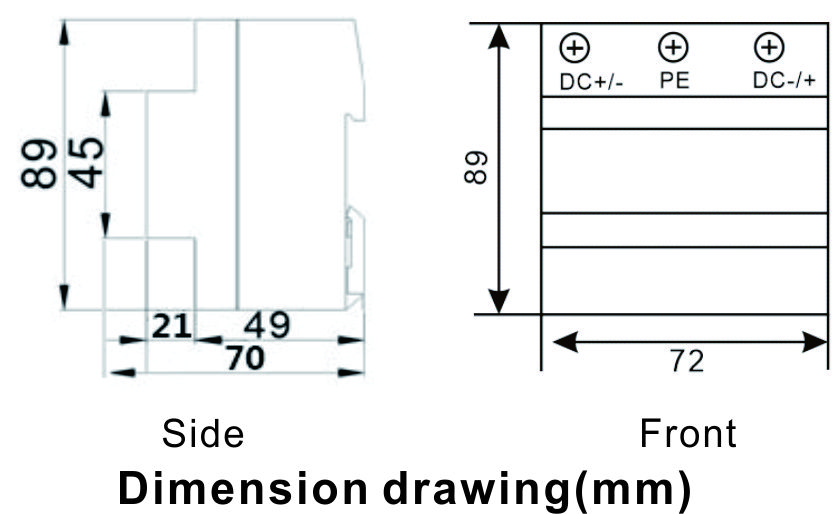

Size
|
4 modules
|
||
 |
 |
||
| 320Vac |
