PV DC SPD (REP-MP20T2-385-4S)

PRODUCTS DETAIL

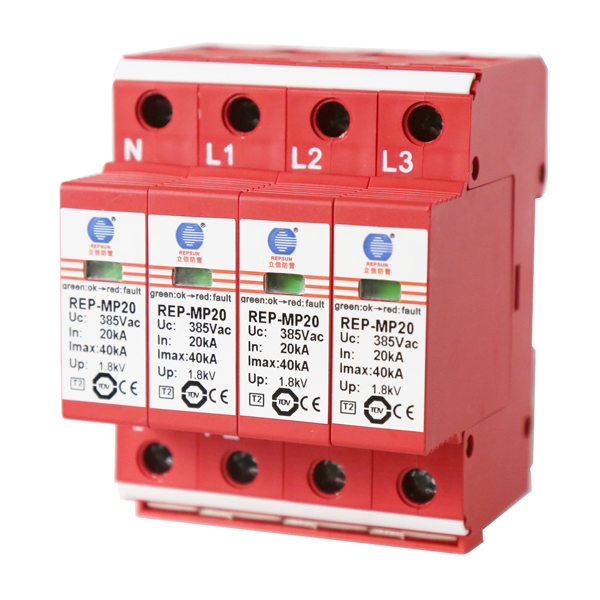

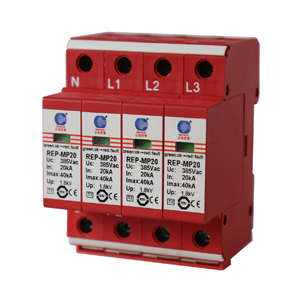

Product Picture

(REP-MP20T2-385-4S)72mm

Features

Type2 surge protector comply with IEC61643-11;

Reliable supervision due to double integrated disconnection devices;

Low voltage protection level;

Optional to use without a fuse;

Pluggable design, 4+0 protection mode;

Remote alarm terminal optional.

Datasheet

Type	REP-MP20T2-385-4S
The SPD according to IEC/EN 61643-11	II/T2
Energy coordination with termini equipment (≤5m)	Type 2
Response time	≤25ns
Maximum continuous voltaae(Uc)	385Vac
Nominal discharge current(8/20μs) ln	20kA
Maximum discharge current(8/20μs) lmax	40kA
Voltage protection level Up @ln	≤1. 8kV
Follow current extinguishing capability a.c. Ifi	25kA rms
Follow current limitation/Selectivity	No tripping of a 32 A gG fuse up to 25kArms(prosp)
Temporary overvoltage(TOV)(L-N)(UT)-Characteristic	440V/5sec
Let-Through-Energy in combination with an MOV S20K275(Iimp=2.5...25kA)	＜0.5J
Remote alarm contact	NO/NC/C, Isolated Form C
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Operating temperature range	-40℃...+80℃
Fault indicator	Green: Normal ; Red: Failure
Cross-sectional area(min)	2.5mm²solid/flexible
Cross-sectional area(max)	16mm²flexible
For mounting on	35mmDINrail,according to EN 60715
Enclosure material	Red thermoplastic material ,UL 94V-0
The installation location	Indoor
Degree of protection	IP20
Size	4 modules
Certification	TUV
