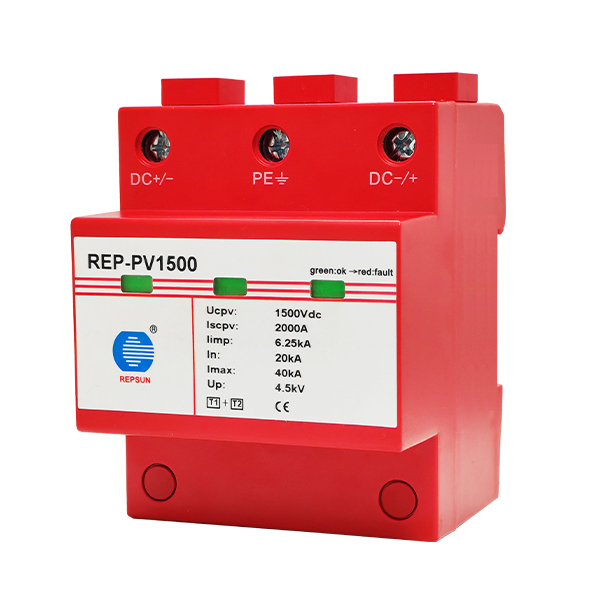

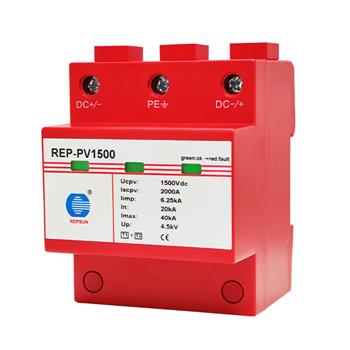

(REP-PV1500)
Features
Combined disconnection and short-circuiting device with safe electrical isolation in the protection module.
Reliable supervision due to double integrated disconnection devices.
Safe replacement of protection modules with arc extinguish due to integrated d.c. fuse.
Datasheet
Type |
REP-PV1500 |
The SPD according to IEC/EN 61643-11 |
T1+T2 |
Response time |
≤25ns |
The largest PV voltage[DC+→DC-] Ucpv
|
≤1500V
|
The largest PV voltage[(DC+/DC-)→PE] Ucpv
|
≤1500V
|
Short circuit tolerance (Iscpv)
|
2000A
|
Nominal discharge current(8/20μs)
[(DC+/DC-)→PE] In
|
20kA
|
Maximum discharge current(8/20μs)
[(DC+/DC-)→PE] Imax
|
40kA
|
Total discharge current(8/20μs)
[(DC+/DC-)→PE] Itotal
|
40 KA |
Total discharge current(10/350μs)
[(DC+/DC-)→PE] Itotal
|
12.5kA
|
Lightning Impulse Current (10/350μs)
[(DC+/DC-)->PE) (Iimp)
|
6.25kA
|
Voltage protection level(Up)
|
≤4.5kV
|
Recommended series connection
overcurrent protector
|
63A/35KA
|
Leakage current
|
≤10μΑ
|
Internal overheating circuit breaker
|
Built-in
|
Operating temperature range
|
-40 ~+80 ℃ |
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
Connecting wire
|
≥4mm²
|
Installation
|
35mm DINrail,according to EN 60715
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
Degree of protection
|
IP20
|
Size
|
4 modules
|
