PRODUCTS DETAIL

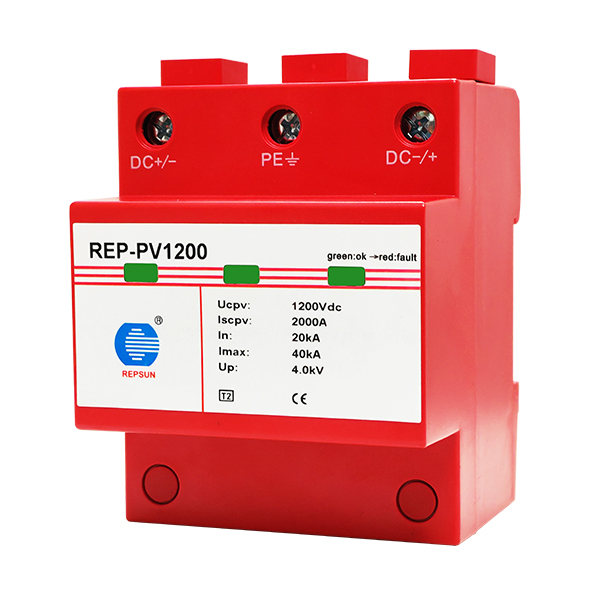

Product Picture
(REP-PV1200)
Features
Combined disconnection and short-circuiting device with safe electrical isolation in the protection module.
Reliable supervision due to double integrated disconnection devices.
Safe replacement of protection modules with arc extinguish due to integrated d.c. fuse.
Enough safety distance with creepage distance more than 30mm.
Datasheet
Type |
REP-PV1200 |
The SPD according to IEC/EN 61643-11 |
II/T2 |
Energy coordination with termini equipment (≤5m) |
T2 |
Response time |
≤25ns |
The largest PV voltage [DC+→DC-] Ucpv |
≤1200V
|
The largest PV voltage
[(DC+/DC-)→PE] Ucpv
|
≤1200V |
Short circuit tolerance (Iscpv) |
2000A
|
Maximum continuous voltage
[(DC+/DC-)→PE) Uc
|
1200V
|
Nominal discharge current(8/20μs)
[(DC+/DC-)→PE] In
|
20KA |
Maximum discharge current(8/20μs)
[(DC+/DC-)→PE] Imax
|
40 KA |
Total discharge current(8/20μs)
[(DC+/DC-)→PE] Itotal
|
80kA
|
Voltage protection level(Up)
|
≤4.5kV |
Recommended series connection
overcurrent protector
|
63A/35KA
|
Operating temperature range |
-40℃...+80℃ |
Leakage current
|
≤10μΑ
|
Internal overheating circuit breaker
|
Built-in
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
Connecting wire
|
≥4mm²
|
Installation
|
35mm DINrail,according to EN 60715
|
Enclosure material
|
Red thermoplastic material ,UL 94v-0
|
Degree of protection
|
IP20
|
Size
|
4 modules
|
