SPD for low voltage transformer

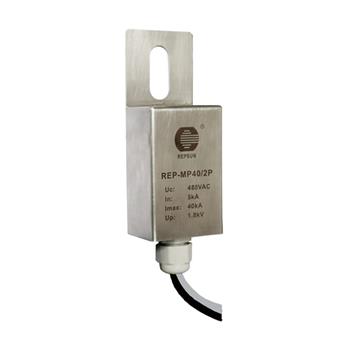

Repsun REP-MP40/2P Surge Protection for Power Transformer

PRODUCTS DETAIL

Product Picture

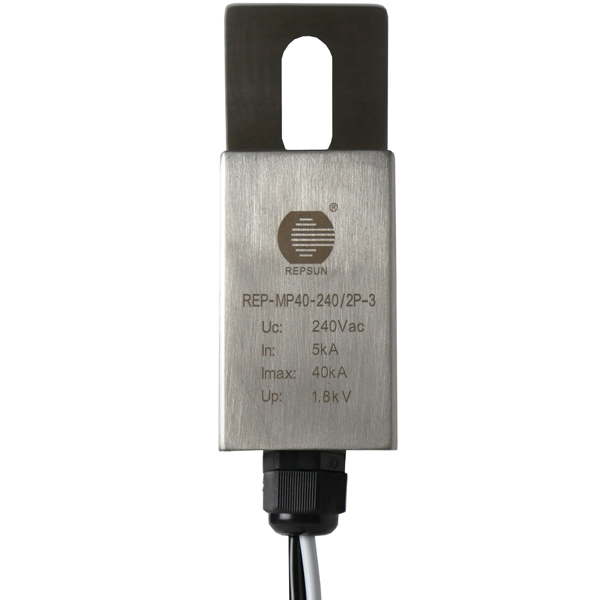

REP-MP40-240-2P-3-new_1REP-MP40-240/2P-3
-4-webREP-MP40-240/2P-4

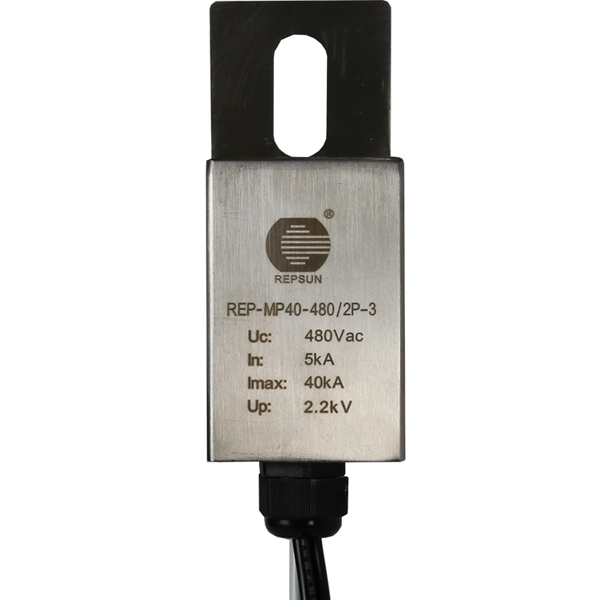

-3-webREP-MP40-480/2P-3

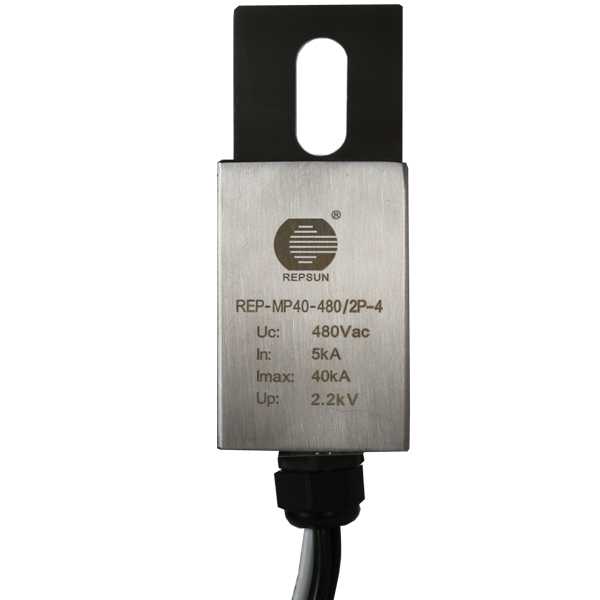

-4-web_1REP-MP40-480/2P-4

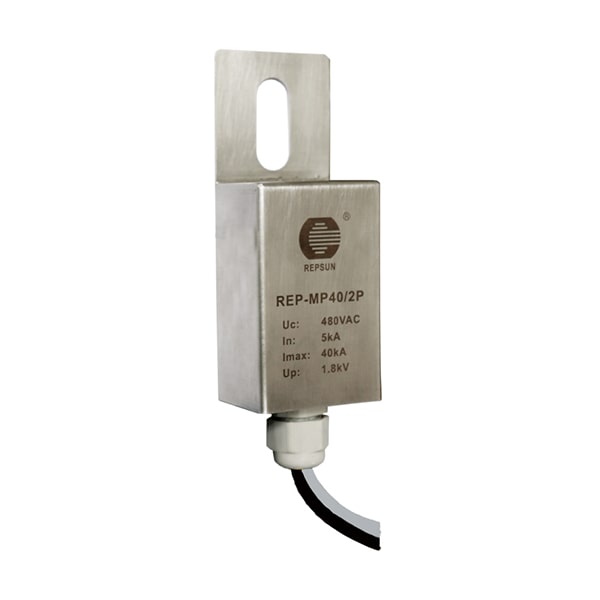

Surge Protection for Outdoor Transformer 03

Dimension drawing(mm)

Surge Protection for Outdoor Transformer 04

Basic circuit diagram

Features

REP-MP40/2P adopts UL certified MOV as the key component
Max discharge current Imax(8/20μs) at each path(L-PE;N-PE)
Easy installation, Sealed well for water-proof and inflaming retarding,
Suitable for harsh outdoor environment
Function optional: failure indicator; remote contact monitoring

Application

REP-MP40/2P is installed outdoor at the low-voltage side of transformer to protect the transformer avoiding failure and damage in case of low voltage surge and over voltage occurs.

Datasheet

Type

REP-MP40-240/2P

REP-MP40-480/2P

Standard

UI14494th:IEC61643-11:2011

UI14494th:IEC61643-11:2011

Frequency

50/60HZ

50/60HZ

Maximum continuous voltage (Uc)

240Vac

480Vac

Nominal discharge current(8/20μs)ln

5kA

5kA

Maximum discharge current(8/20μs)lmax

40kA

40kA

Impulse voltage(1.2/50μs) Uoc

10kV

10kV

Voltage protection level(Up)

@5kA

<1.2kV

<1.6kV

@20kA

<1.8kV

<2.2kV

Leakage current (IL)

<0.1mA

<0.1mA

Response time

≤25ns

≤25ns

Isolation voltage

6KV rms

6KV rms

Temporary over voltage TOV

335Vac, 5s

670Vac, 5s

Operating temperature range

-40℃~+85℃

Work status

Failure indication; Remote alarm contact optional

Installation wire

Phase&Neutral line: black; Neutral Earth line: white

Wire specification

UI1015 Certified, 10AWG,50cm

For mounting on

Bolt fixing

Enclosure material

304 Stainless steel

Degree of protection

IP68

Seal material

Epoxy resin
