REP-MP40/2P Series for Outdoor Transformer

IEC/EN 61643 Lightning Surge SPD REP-MP40T2

PRODUCTS DETAIL

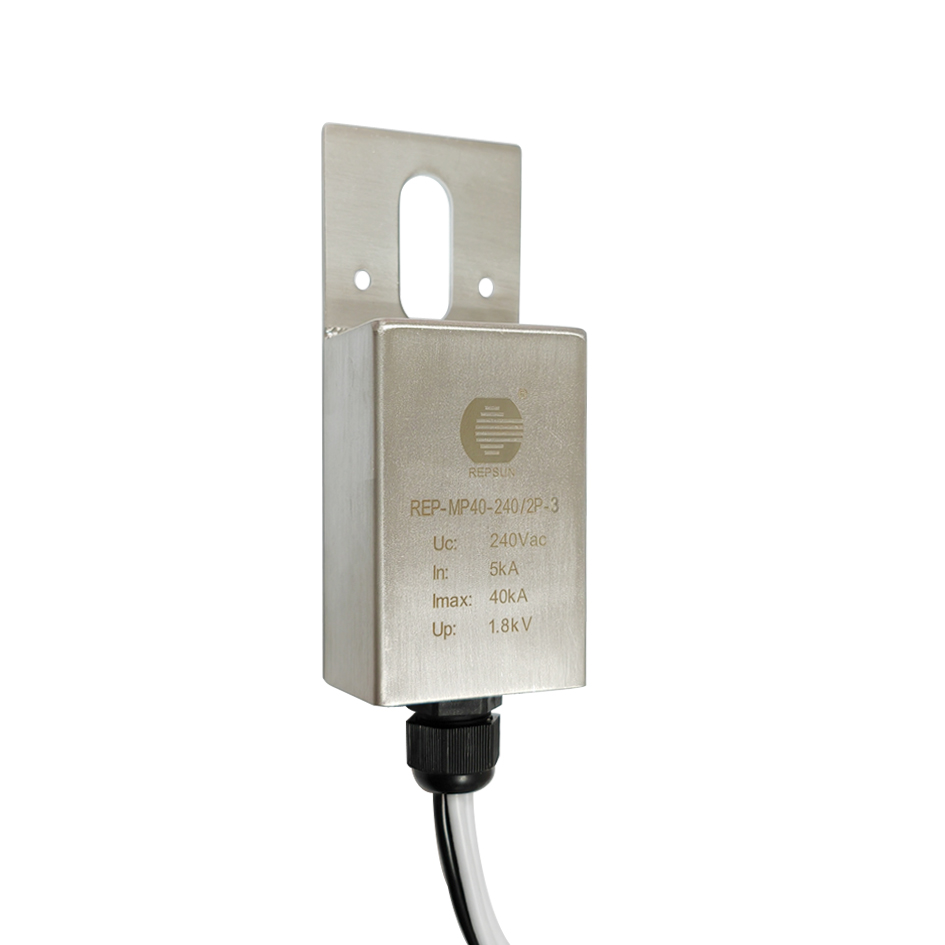

Product Picture

REP-MP40/2P Series

Features

●REP-MP40/2P adopts ULcertified MOV as the key component.

●Max discharge current Imax(8/20μs) 40kAat each path(L-PE;N-PE).

●Easy installation, with 60cm connection wire, connect directly to the phase and neutral (or ground) on the LV side of the transformer, and the arrester has a voltage range of 240V to 480V(MCOV of 240Vrms and 480Vrms).

●Sealed well for water-proof and inflaming retarding, suitable for harsh outdoor environment.

Datasheet

Type		REP-MP40-240-2P-3S	REP-MP40-480-2P-3S
Standard		UL1449 4th; IEC61643-11:2011	UL1449 4th; IEC61643-11:2011
Frequency		50/60Hz	50/60Hz
Power system(Un)		120/240Vac	240/480Vac
MCOV		240Vrms	480Vrms
Maximum continuous voltage(Uc)		240Vac	480Vac
Nominal discharge current(8/20μs)In		5kA	5kA
Maximum discharge current(8/20μs)Imax		40kA	40kA
Impulse voltage(1.2/50μs)(Uoc)		10kV	10kV
Voltage protection level(Up)	@5kA	＜1.2kV	＜1.6kV
Voltage protection level(Up)	@20kA	＜1.8kV	＜2.2kV
Leakage current (IL)		<0.1mA	<0.1mA
Response time		≤25ns	≤25ns
Isolation voltage		6kV rms	6kV rms
Temporary over voltage (TOV)		335Vac,5s	670Vac,5s
Operating temperature range		-40℃~+85 ℃
Work status		Failure indication; Remote alarm contact optional
Installation wire		Black(L/N):2 wires; White(PE):1 wire
Wire specification		UL1015 Certified, 10AWG,60cm
For mounting on		Bolt fixing
Enclosure material		304 Stainless steel
Degree of protection		IP68
Seal material		Epoxy resin
