SPD for Outdoor Transformer (Uc 650-2P-3)
PRODUCTS DETAIL

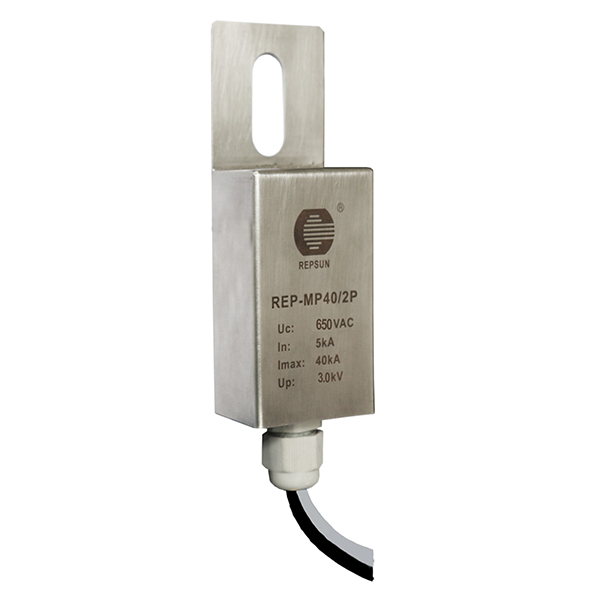

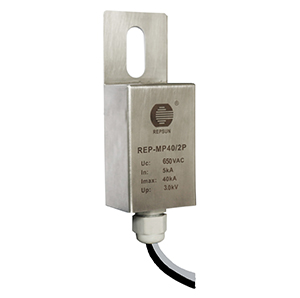

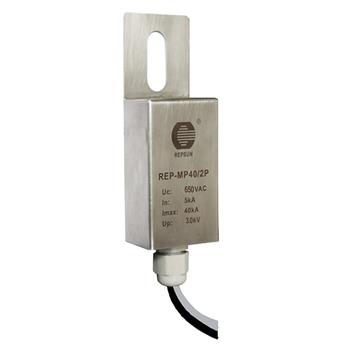

Product Picture
REP-MP40-650-2P-3
Dimension drawing(mm)
Basic circuit diagram
Features
REP-MP40/2P adopts UL certified MOV as the key component.
Max discharge current Imax(8/20μs) at each path(L-PE;N-PE).
Easy installation, with 60cm connection wire, connect directly to the phase and neutral (or ground) on
the LV side of the transformer, and the arrester has a voltage range of 650V rms (MCOV of 540V rms).
Sealed well for water-proof and inflaming retarding, suitable for harsh outdoor environment.
Datasheet
|
Model |
REP-MP40-650-2P-3
|
||
|
Standard |
UL1449 4th;IEC61643-11:2011
|
||
|
Frequency
|
480Vac
|
||
|
Maximum continuous voltage(Uc)
|
650Vac
|
||
|
Nominal discharge current(8/20μs)In
|
5kA
|
||
|
Maximum discharge current(8/20μs)Imax
|
240Vac
|
||
|
Nominal discharge current(8/20μs)In
|
5kA
|
||
|
Maximum discharge current(8/20μs)Imax
|
40kA
|
||
|
Impulse voltage(1.2/50μs) Uoc
|
10kV
|
||
|
Voltage protection level(Up)@5kA
|
<2.4kV
|
||
| Voltage protection level(Up)@10kA |
<2.6kV
|
||
| Voltage protection level(Up)@20kA | <3.0kV | ||
|
Leakage current (IL)
|
<0.1mA
|
||
|
Response time
|
≤25ns
|
||
|
Isolation voltage
|
6kV rms
|
||
|
Operating temperature range
|
-40℃~+85 ℃
|
||
|
Work status
|
Failure indication; Remote alarm contact optional
|
||
|
Installation wire
|
Black(L/N):2 wires; White(PE):1 wire
|
||
|
Wire specification
|
UL1015 Certified, 10AWG,60cm
|
||
|
For mounting on
|
Bolt fixing
|
||
|
Enclosure material
|
304 Stainless steel
|
||
|
Degree of protection
|
IP68
|
||
|
Seal material
|
Epoxy resin
|
||
