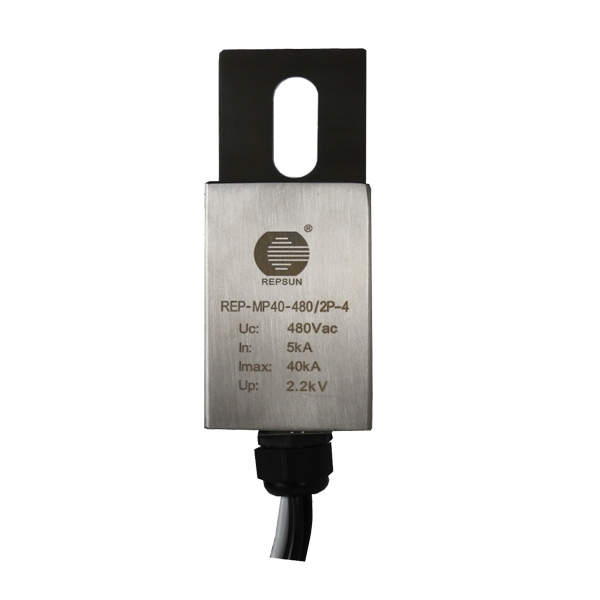

MP40 series
PRODUCT DETAILS
Features
- UL 1449 5th Type1/Type2 SPDs;
- Fast response time and low voltage protection rating;
- High surge energy capability with compact size;
- Failure indicator light optional.
Specification
| Type | REP-MP40 Series |
| Surge capacity (8/20μs)Imax | 40kA per phase |
| Nominal discharge current (8/20μs)In | 20kA |
| Short circuit current rating Isccr | 200kA rms |
| Response time | 25ns |
| Working status indication | Light-off:Normal; Light-on:Failure |
| Connection type | Parallel Connected |
| Degree of protection | IP68 |
| Enclosure material | 304 Stainless steel |
| Working environments | Temperature: -40℃~+85℃; Humidity relative: 5~95%(25℃) |
| According to | IEC61643 - 11:2011; UL1449 5th |
| Dimension |
 |
