SPD for Outdoor Transformer (2P Series)

PRODUCTS DETAIL

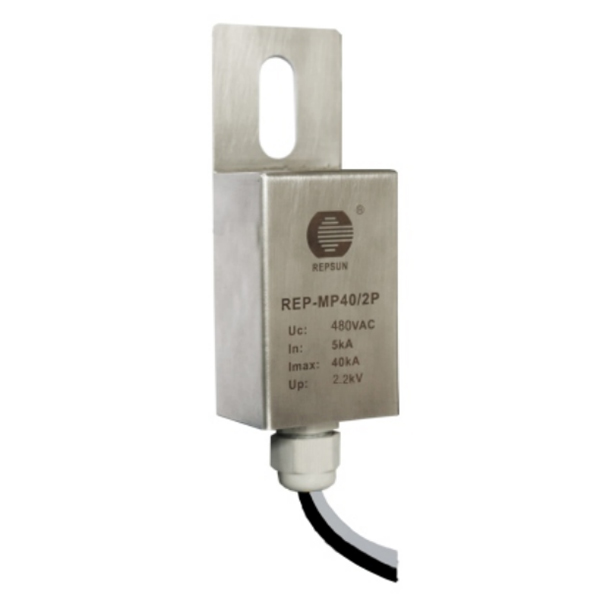

Product Picture

REP-MP40/2P(S) Series

Dimension drawing(mm)

Basic circuit diagram

Features

REP-MP40/2P adopts UL certified MOV as the key component.

Max discharge current Imax(8/20μs) 40kA at each path(L-PE;N-PE).

Easy installation, with 60cm connection wire, connect directly to the phase and neutral (or ground) on

the LV side of the transformer, and the arrester has a voltage range of 240V to 480V (MCOV of 240V rms and 480rms).

Sealed well for water-proof and inflaming retarding, suitable for harsh outdoor environment.

Datasheet

Type	REP-MP40-240-2P-3S	REP-MP40-480-2P-3S
Standard	UL1449 4th;IEC61643-11:2011	UL1449 4th; IEC61643-11:2011
Frequency	50/60Hz	50/60Hz
Power system(Un)	120/240Vac	240/480Vac
MCOV	240Vrms	480Vrms
Maximum continuous voltage(Uc)	240Vac	480Vac
Nominal discharge current(8/20μs)In	5kA	5kA
Maximum discharge current(8/20μs)Imax	40kA	40kA
Impulse voltage(1.2/50μs)(Uoc)	10kV	10kV
Voltage protection level(Up)@5kA	＜1.2kV	＜1.6kV
Voltage protection level(Up)@20kA	＜1.8kV	＜2.2kV
Leakage current (IL)	<0.1mA	<0.1mA
Response time	≤25ns	≤25ns
Isolation voltage	6kV rms	6kV rms
Temporary over voltage (TOV)	335Vac,5s	670Vac,5s
Operating temperature range	-40℃~+85 ℃
Work status	Light-off:Normal ; Light-on:Failure. (Failure ligth optional)
Installation wire	Black(L/N):2 wires; White(PE):1 wire
Wire specification	UL1015 Certified, 10AWG,60cm
For mounting on	Bolt fixing
Enclosure material	304 Stainless steel
Degree of protection	IP68
Seal material	Epoxy resin
