T2 Surge Protector for Wind Turbine

Specially designed for higher voltage systems,to prevent the damage caused by direct or indirect lightning current impact;

PRODUCTS DETAIL

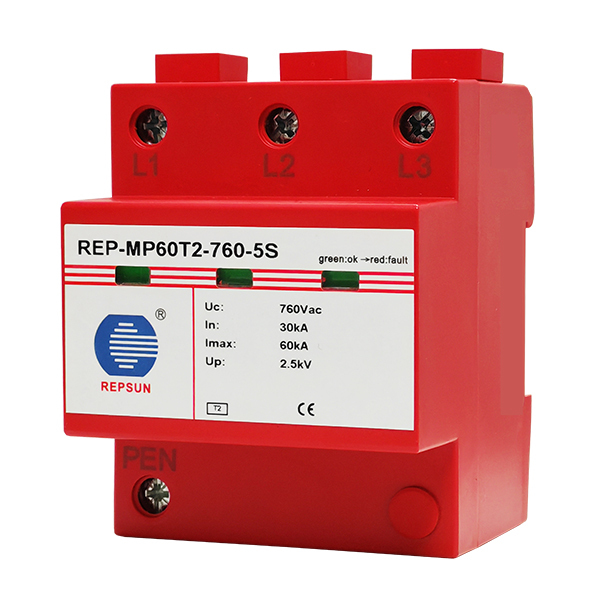

Product Picture

rep-mp60t2-760-5s-02

(MP60T2-760-5S)72mm





Features

Level II pluggable power surge protector, quick response time ≤25ns, voltage protection level ≤5kV;

Type2 surge protector comply with IEC61643-11;

Reliable supervision due to double integrated disconnection devices;
Low voltage protection level;
Optional to use without a fuse;
Remote alarm terminal optional.
Built-in dual protection of mechanical thermal tripping and thermal thermal tripping, double reliability;



Datasheet

Type REP-MP60T2-760-5S

The SPD according to IEC/EN 61643-11

Type 2

Energy coordination with termini equipment (≤5m)

T2

Nominal AC voltage(Un)

690Vac

Maximum continuous voltaae(Uc)

760Vac

Nominal discharge current(8/20) ln(L-N/N-PE)

30kA

Maximum discharge current(8/20) lmax(L-N/N-PE)

60kA

Response time ≤25ns

Voltage protection level Up @ln

≤5kV

Voltage protection level Up @6kV(1.2/50ps)

≤2.5kV

Backup fuse
315AgL/gG
Temporary overvoltage(TOV) UT
900V / 5sec.

Temporary overvoltage(TOV) UT-Characteristic

Withstand
Remote alarm contact
Remote alarm contact optional
Remote alarm contact capability Un/In

AC:250/0.5A           DC:250V/0.1A; 75V/0.5A

Remote alarm contact connecting wire

Max. 1.5mm²  or #16AWG

Operating temperature range

-40℃...+80℃

Remote communication contact type
Float switch contact
Ac switching capacity
250V/0.1A
Work/Fault indicator

Green: Normal ; Red: Failure

The minimum cross-sectional area of installation

4mm²solid/flexible

The maximum cross-sectional area of installation

25mm²flexible

Installation
35mm DINrail,according to EN 60715

Enclosure material

Red thermoplastic material ,UL 94v-0
The installation location
Indoor

Degree of protection

IP20

Size

4 modules
