T2 Surge Protector for Wind Turbine

Combination T2 SPD for power supply system of wind turbine

PRODUCTS DETAIL

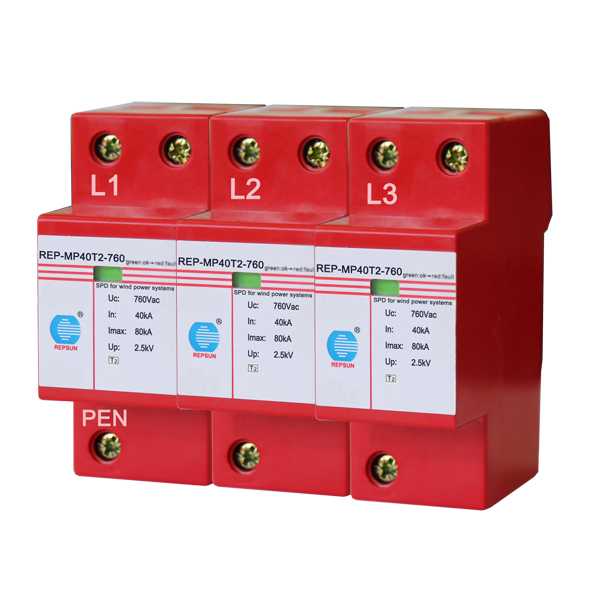

Product Picture

(MP40T2-760-5S)72mm

Features

Class II power supply pluggable surge protector, fast response time ≤25ns, voltage protection level ≤5kV;
The smallest size in the industry, Un=690Vac, Uc=760Vac, saving half of the space;
Built-in dual protection of mechanical thermal tripping and thermal thermal tripping, double reliability;
Visual failure indicator window, and remote contact optional.

Datasheet

Type	REP-MP40T2-760-5S
The SPD according to IEC/EN 61643-11	T2
Energy coordination with termini equipment (≤5m)	T2
Nominal AC voltage(Un)	690Vac
Maximum continuous voltaae(Uc)	760Vac
Nominal discharge current(8/20) ln(L-N/N-PE)	40kA
Maximum discharge current(8/20) lmax(L-N/N-PE)	80kA
Response time	≤25ns
Voltage protection level Up @ln	≤5kV
Temporary overvoltage(TOV)(UT)-Characteristic	900V/5sec.
Remote alarm contact	NC/C
Remote alarm contact capability Un/In	AC:250/0.5A DC:250V/0.1A; 75V/0.5A
Remote alarm contact connecting wire	Max. 1.5mm² or #16AWG
Operating temperature range	-40℃...+80℃
Fault indicator	Green: Normal ; Red: Failure
Cross-sectional area(min.)	4mm²solid/flexible
Cross-sectional area(max.)	25mm²flexible
For mounting on	35mm DIN rail
Enclosure material	Red thermoplastic, UL 94 V-0
Degree of protection	IP20
Size	6 modules
