Smart SPD (REP-MS25T1+T2-1300) for Wind Turbine

T1+T2 Combined Wind Electricity Smart SPD

PRODUCTS DETAIL

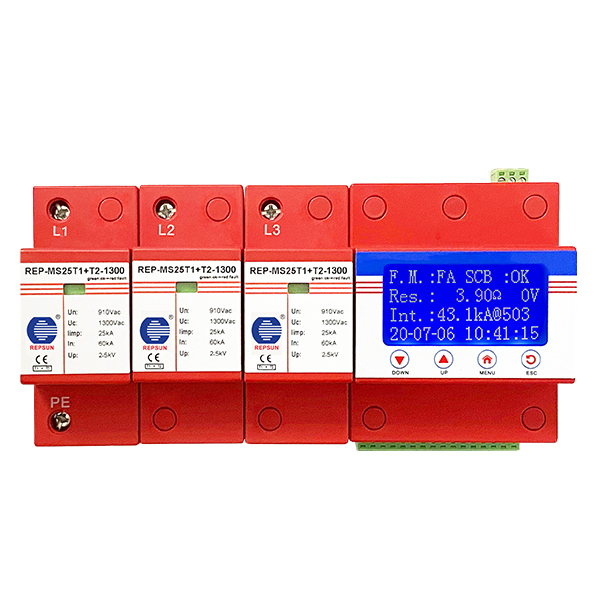

Product Picture

2-1300_1
(REP-MS25T1+T2-1300)

Features

●Modulated T1+T2 Combined Smart SPD for wind electricity,with LCD screen to help indicate the working status of the SPD, lightning intensity, striking frequency, time, energy peak,polarity, and provide access for recent 2000 history logs and corresponding times. Remote function is valid for 485 protocol-based communication interface modules.
●Smart SPD peak energy recording error range is less than 5%.

Datasheet

Model REP-MS25T1+T2-1300
The SPD according to IEC 61643-11

T1+T2

Nominal AC voltage (Un)

910V/1140V

Maximum continuous voltage (Uc)

1300V

Lightning impulse current (10/350μs) Iimp

25kA

Nominal discharge current (8/20μs) In

60kA

Voltage protection level Up

≤2.5kV
1mA Dc reference voltage
≥2.20kV

Remote alarm contact

NC Contact terminal

Opreating temperature range

-40℃~+80℃

Fault indicator

Green (ok); Red (fault)

Remote alarm contact connecting wire [L,N,PE]

6 mm² ~ 16 mm² /35mmDIN

Enclosure material

Red thermoplastic, UL 94v-0

Protected mode

3P

Degree of protection

lP20

Smart monitoring function

REP-LPS-LCM
Data monitor (Functions and
parameters are optional)


SPD status (F.M.)

OK: Normal     FA: Failure

Lightning peak and time

1-100kA(10/350μs),error range <5%/ Y/M/D/H/M/S

Polarity

+/-

Lightning counter

0-2000 times

Lightning energy

0-100AS

Alarm and threshold

setting function

Alarm function

Following functions are available through LCD screen settings: leakage current, grounding resistance, voltage, temperature, alarm threshold setting for humidity and other parameter

Threshold setting function

History log access

Monitor screen menu can check the following settings: SPD status, lightning striking frequency, time, energy peak, polarity



Request A Quote

refresh!

Related Products

Smart SPD (REP-MS25T1+T2-1300) for Wind Turbine

SPD (REP-MP40T2-760-5S) for Wind Turbine

SPD (REP-MP20T2-275-3S) for Wind Turbine

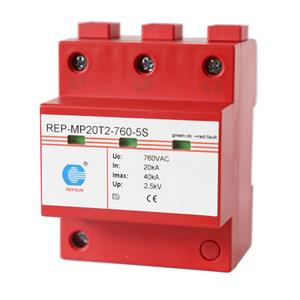

SPD (REP-MP20T2-760-5S) for Wind Turbine

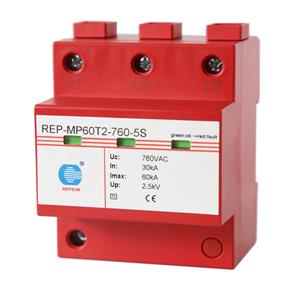

SPD (REP-MP60T2-760-5S) for Wind Turbine

SPD (REP-MP20T2-385-5S) for Wind Turbine

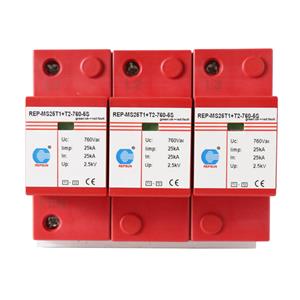

SPD (REP-MS25T1+T2-760-5S) for Wind Turbine
