T2 Surge Protector for Wind Turbine
PRODUCTS DETAIL

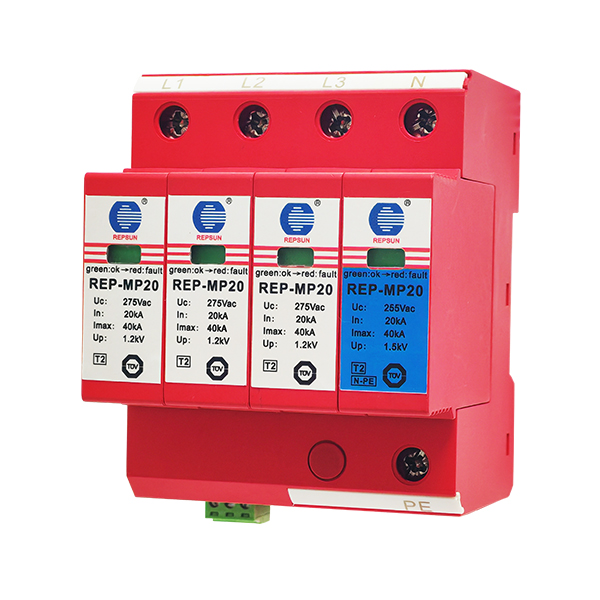

Product Picture
REP-MP20T2-275-3S
Dimension drawing(mm)
Basic circuit diagram
Features
Type2 surge protector comply with IEC61643-11.
Reliable supervision due to double integrated disconnection devices.
Low voltage protection level.
Optional to use without a fuse.
Pluggable design, 3+1 protection mode.
Remote alarm terminal optional.
Datasheet
| Model |
REP-MP20T2-275-3S
|
|||
|
The SPD according to IEC 61643-1/-11
|
Type 2 | |||
|
Maximum continuous voltage Uc
|
275Vac
|
|||
|
Impulse discharge current Iimp (10/350 (N-PE)
|
12.5kA
|
|||
|
Nominal discharge current In (8/20μs)
|
20kA
|
|||
|
Maximum discharge current Imax (8/20μs)
|
40kA | |||
|
Voltage protection level(Up)@In
|
1.2kV
|
|||
|
Response time(t.)
|
25 ns
|
|||
|
Temporary overvoltage(TOV) UT
|
385V / 5sec.
|
|||
|
Operating temperature range(Tu)
|
-40℃~80℃
|
|||
|
Work/Fault indicator
|
Green: Normal ; Red: Failure
|
|||
|
Remote alarm contact
|
NO/NC/C, isolated from C
|
|||
|
Remote alarm contact capability Un/In
|
AC:250/0.5A DC:250V/0.1A;75V/0.5A
|
|||
|
Remote alarm contact connecting wire
|
Max.1.5mm² or#16AWG
|
|||
|
The minimum cross-sectional area of installation
|
1.5mm² solid/flexible
|
|||
|
The maximum cross-sectional area of installation
|
25mm² flexible | |||
|
Installation
|
35mmDINrail,according to EN 60715
|
|||
|
Shell material
|
Red thermoplastic material ,UL 94v-0
|
|||
|
The installation location
|
Indoor
|
|||
|
Degree of protection
|
IP20
|
|||
|
Size
|
4 modules
|
|||
|
Certification
|
TUV
|
|||
