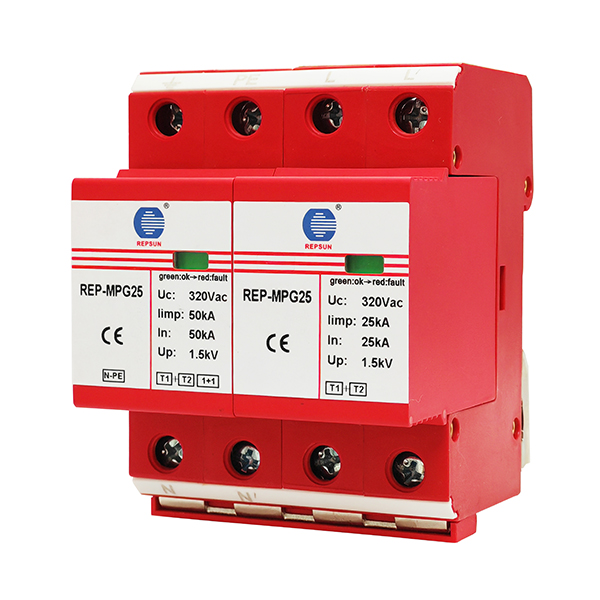

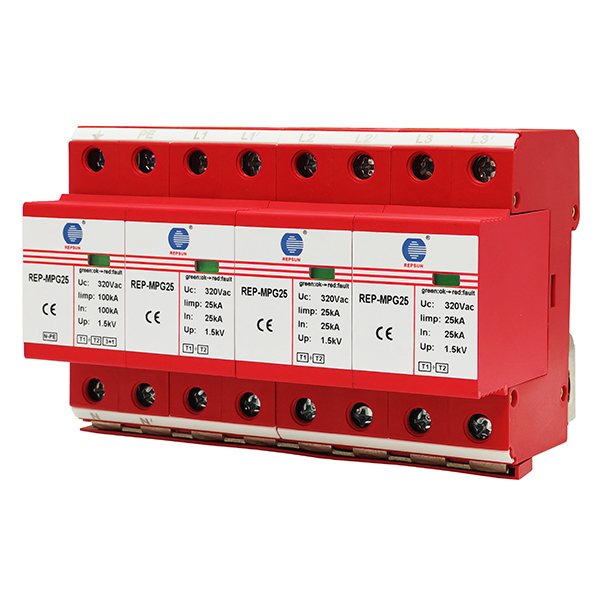

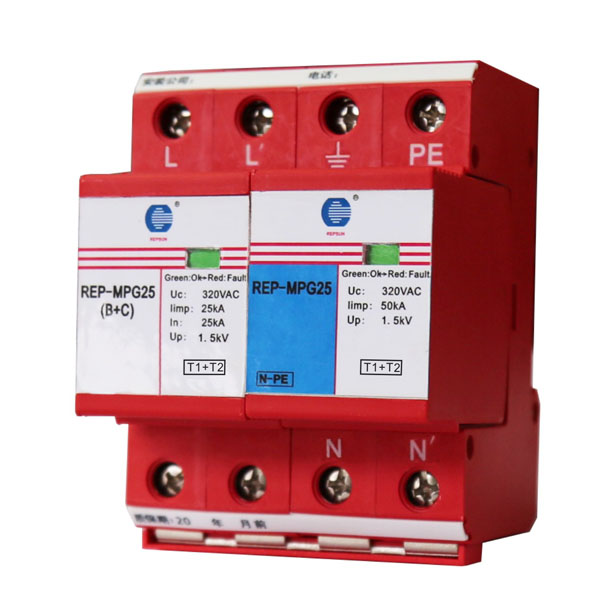

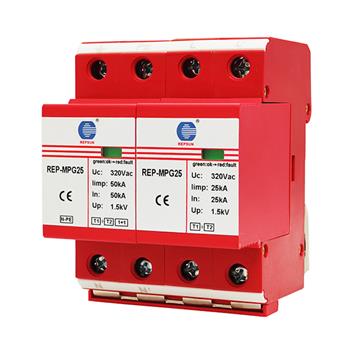

Surge Protectors for AC Power Supply System(T1+T2)

Surge Protectors for AC Power Supply System(T1+T2)
Surge Protectors for AC Power Supply System(T1+T2) 02
Surge Protectors for AC Power Supply System(T1+T2) 03
Surge Protectors for AC Power Supply System(T1+T2) 04

PRODUCTS DETAIL

Product Picture

Surge Protectors for AC Power Supply System(T1+T2) 05

(L-N/PE)
(N-PE)

Surge Protectors for AC Power Supply System(T1+T2) 06

(1+1)
(2+0)

Surge Protectors for AC Power Supply System(T1+T2) 07

(3+0)

Surge Protectors for AC Power Supply System(T1+T2) 08

(3+1)
(4+0)

Surge Protectors for AC Power Supply System(T1+T2) 09

Dimension drawing(mm)2P

Surge Protectors for AC Power Supply System(T1+T2) 10

Basic circuit diagram

Features

Type1+Type2 combination pluggable surge protector
No exhausting excapsulated spark gap technology coordinated with MOV technology
Iimp up to 25kA, low protection level≤1.5kV
LTR energy control technology, directly coordinated to type3 SPD without addional length

Datasheet

Type

REP-MPG15T1+T2-320-XS

REP-MPG25T1+T2-320-XS

The SPD according to IEC/EN 61643

I+II/T1+T2

I+II/T1+T2

Maximum continuous voltage(Uc)

320Vac

320Vac

Lightning impulse current(10/350)limp

15kA

25kA

Nominal discharge current(8/20)ln

15kA

25kA

Maximum discharge current(8/20)lmax

160kA

160kA

Voltage protection level Up @ln

≤1.5kV

≤1.5kV

Voltage protection level Up @6kV(1.2/50ps)

≤1.0kV

≤1.0kV

Operating temperature range

-40‘C—80C

-40C-+80C

Response time

≤25ns

<25ns

Failure indication

Red: failure; Green: normal

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Enclosure material

Thermoplastic; extinguishing degree UL94-V0

Technical feature

No exhausting encapsulated spark gap technology
