REP-MPG25 Series
PRODUCTS DETAIL

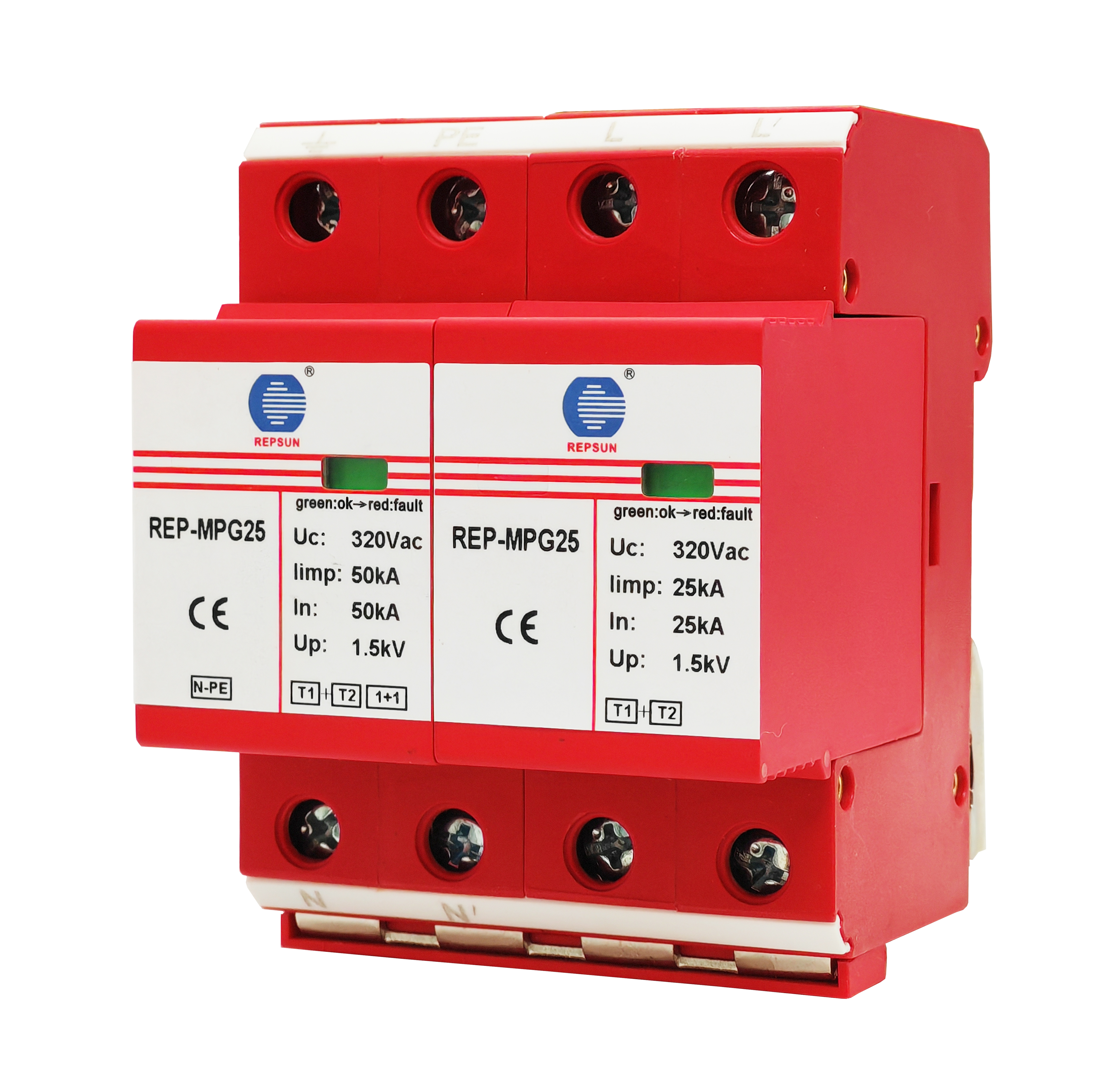

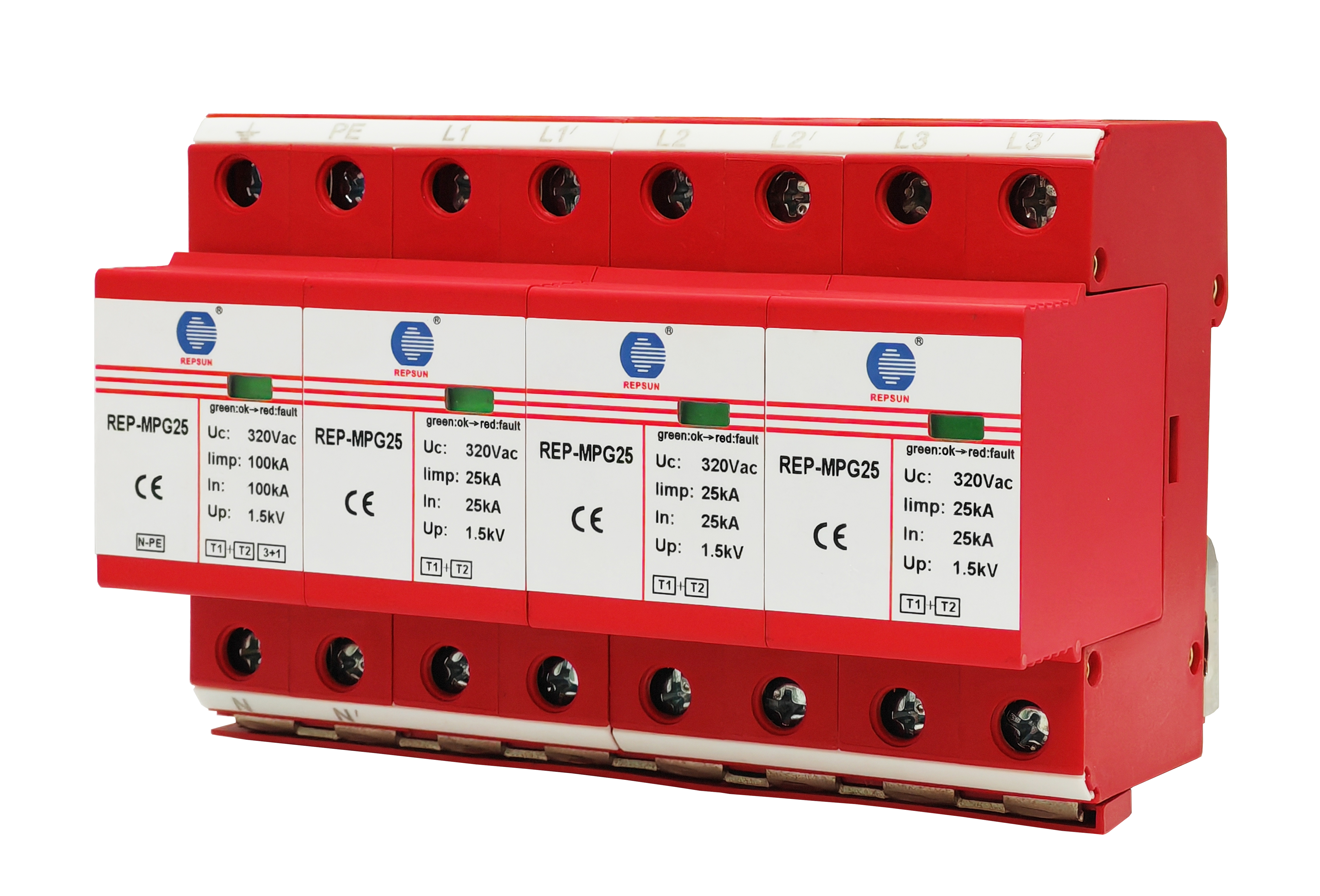

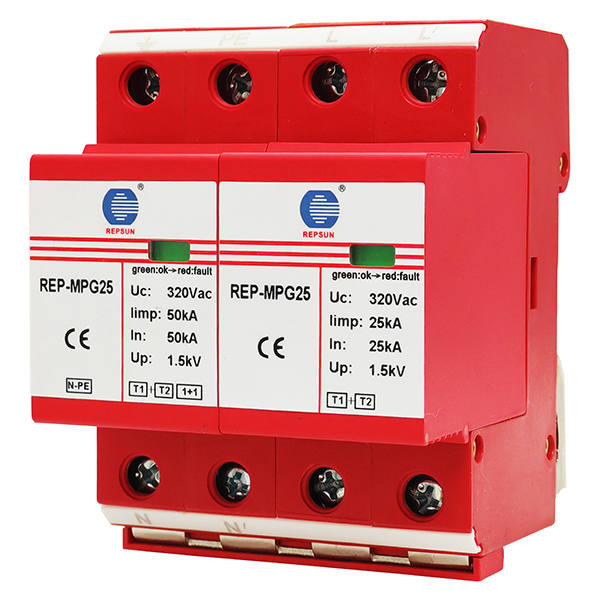

Product Picture
REP-MPG25 Series
Features
●Type1+Type2 combination pluggable surge protector.
●Non exhausting encapsulated spark gap technology with extremely high surge capacity.
●Iimp up to 25kA, voltage protection level(Up)≤1.5kV.
●LTR energy control technology, directly coordinated to next SPD without additional length.
Datasheet
| Type |
REP-MPG25T1+T2-320-XS
|
|
|
The SPD accordingtoIEC/EN61643
|
I+II/T1+T2
|
|
|
Maximum continuous operating voltage(Uc)
|
320Vac
|
|
|
Lightning impulse current(10/350μs)(limp)
|
25kA/100kA
|
|
|
Nominal discharge current(8/20μs)(In)
|
25kA/100kA
|
|
|
Maximum discharge current(8/20μs)(Imax)
|
160kA
|
|
|
Voltage protection level(Up)
|
≤1.5kV
|
|
|
Operating temperature range
|
-40℃~+80℃
|
|
|
Response time
|
≤100ns
|
|
|
Failure indication
|
Green: Normal ; Red: Failure
|
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
|
Degree of protection
|
Ip20
|
|
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94-V0
|
|
|
Technical feature
|
No exhausting encapsulated spark gap technology
|
|
 |
 |
|
