REP-MPG25PCB Series

PRODUCTS DETAIL

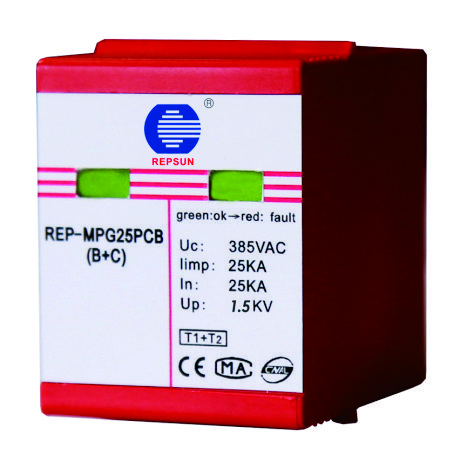

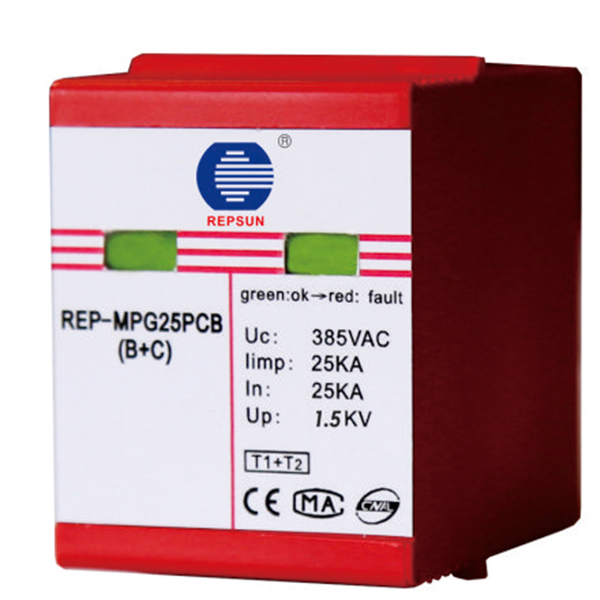

Product Picture

REP-MPG25 PCB Series

Features

•Type1+Type2 combination surge protector.

•Sealed metal spark gap technology with extremely high surge capacity.

•Voltage protection level(Up)≤1.5kV, fast response time(≤25ns).

•Discharge capacity (Iimp:10kA-25kA), no follow current.

•Application in the AC mains, service entrance, and heavy industrial etc..

Datasheet

Type	REP-MPG25PCB	REP-MPG15PCB
The SPD accordingtoIEC/EN61643	I+II/T1+T2	I+II/T1+T2
Maximum continuous operating voltage(Uc)	385Vac	385Vac
Lightning impulse current(10/350μs)(Iimp)	25KA	15KA
Nominal discharge current(8/20μs)(In)	25kA	15KA
Maximum discharge current(8/20μs)(Imax)	160kA	120KA
Voltage protection level(Up)@In	≤1.5kV
Response time	25ns
Operating temperature range	-40℃~+80℃
Remote alarm contact	Remote alarm contact optional
Degree of protection	IP20
Failure indication	Green: Normal ; Red: Failure
Enclosure material	Thermoplastic; extinguishing degree UL94 V-0

385Vac
