REP-MPG15 Series
PRODUCTS DETAIL

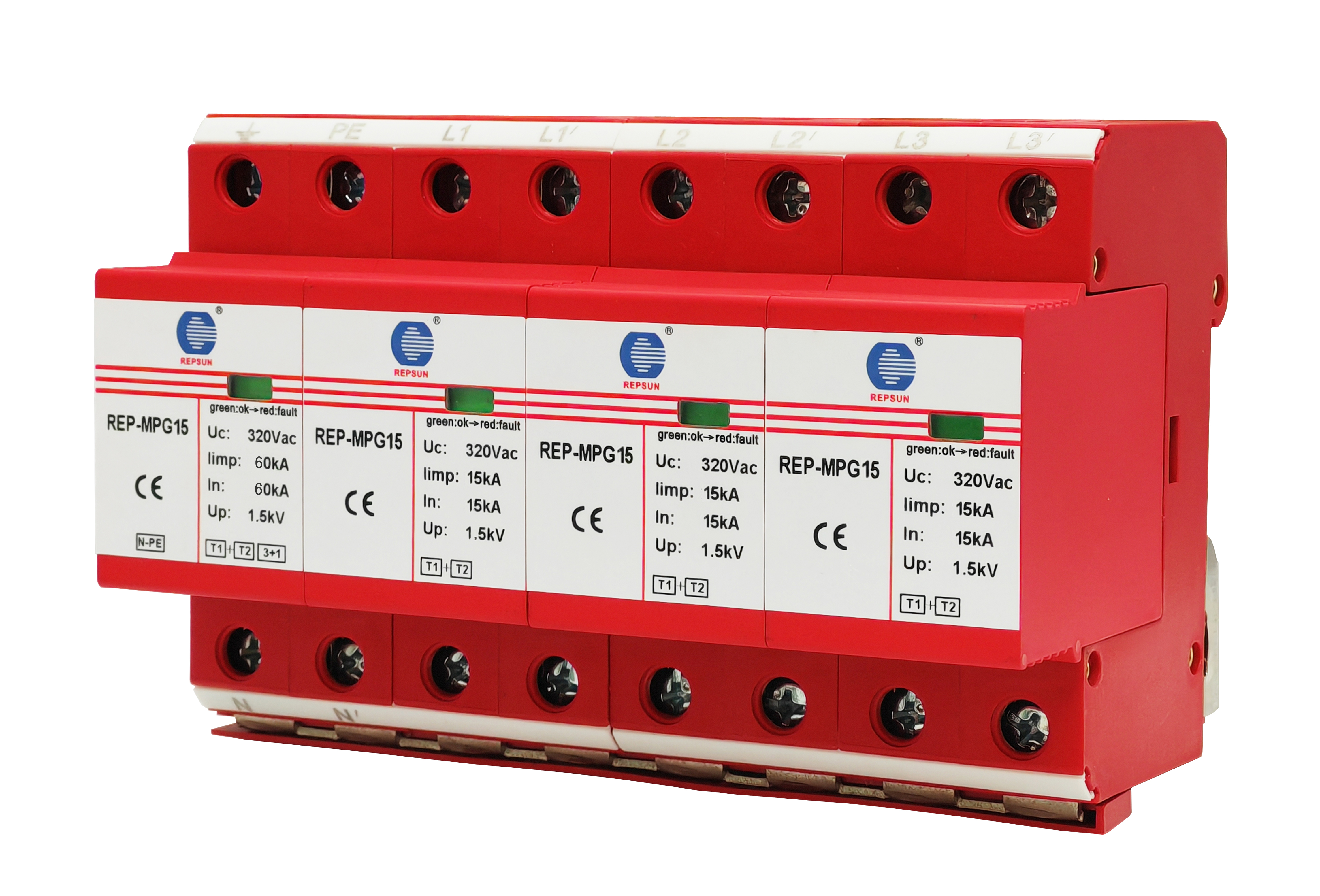

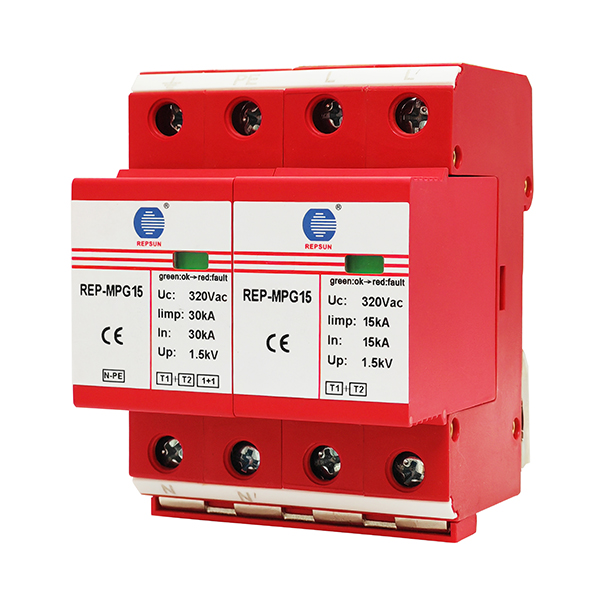

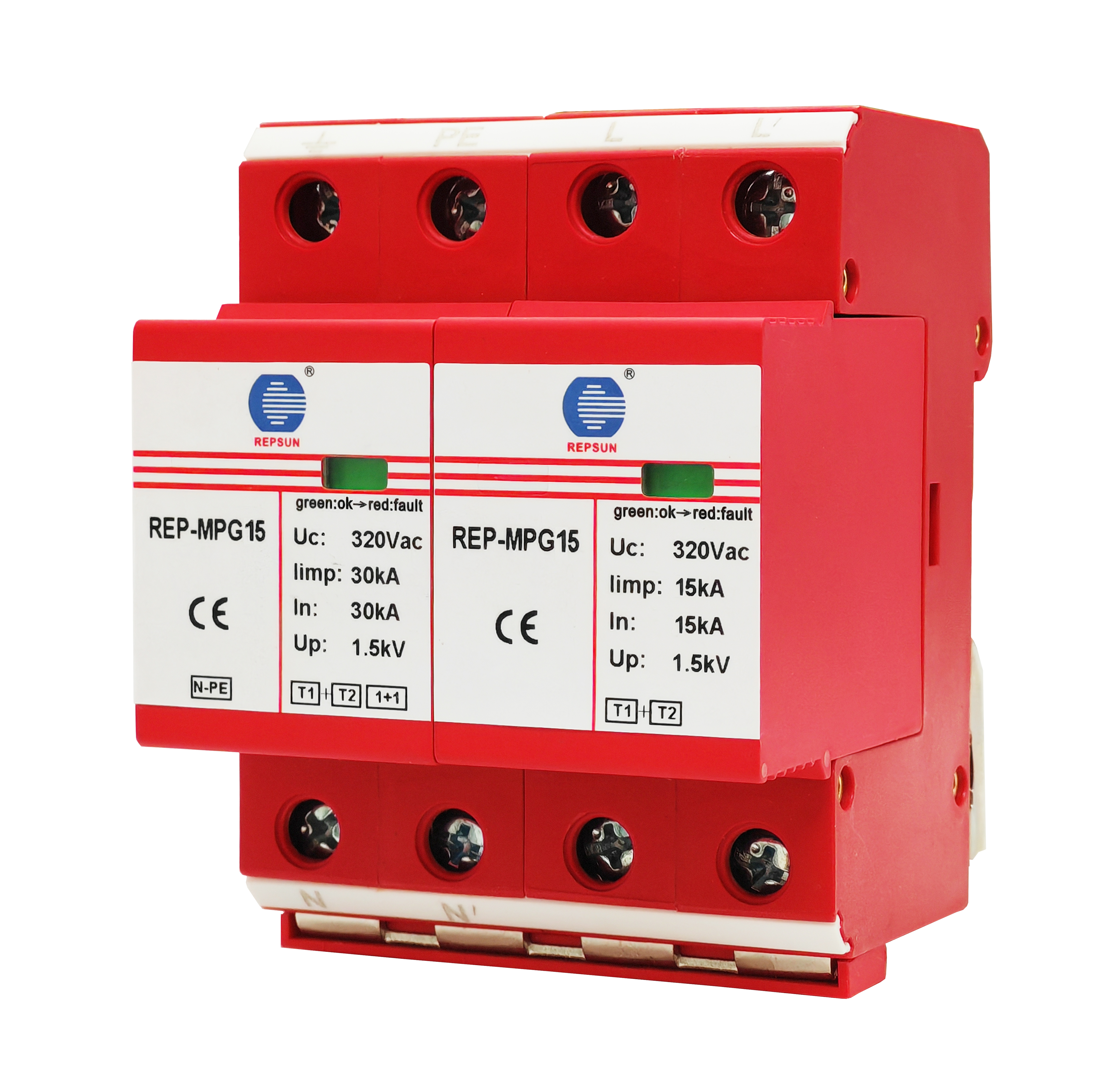

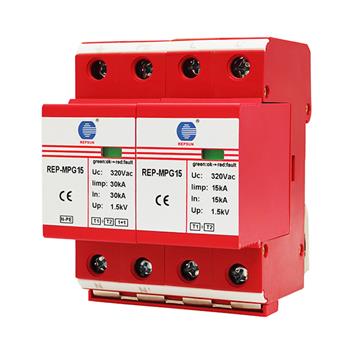

Product Picture
REP-MPG15 Series
Features
●Type1+Type2 combination pluggable surge protector.
●Non exhausting encapsulated spark gap technology with extremely high surge capacity.
●Iimp up to 15kA, voltage protection level(Up)≤1.5kV.
●LTR energy control technology, directly coordinated to next SPD without additional length.
Datasheet
| Type |
REP-MPG15T1+T2-320-XS
|
|
| The SPD according to IEC/EN 61643 | I+II/T1+T2 | |
| Maximum continuous operating voltage(Uc) |
320Vac
|
|
|
Lightning impulse current(10/350μs)(limp)
|
15kA/60kA
|
|
| Nominal discharge current(8/20μs)(In) |
15kA/60kA
|
|
| Maximum discharge current(8/20μs)(Imax) |
100kA/120kA
|
|
| Voltage protection level(Up) | ≤1.5kV | |
| Operating temperature range | -40℃~+80℃ | |
| Response time |
≤100ns
|
|
| Failure indication |
Green: Normal ; Red: Failure
|
|
| Remote alarm contact | Remote alarm contact optional | |
| Degree of protection | IP20 | |
| Enclosure material | Thermoplastic; extinguishing degree UL94-V0 | |
| Technical feature |
No exhausting encapsulated spark gap technology
|
|
 |
 |
|
