REP-MP10LEDP&REP-MP10LEDS Series
PRODUCTS DETAIL

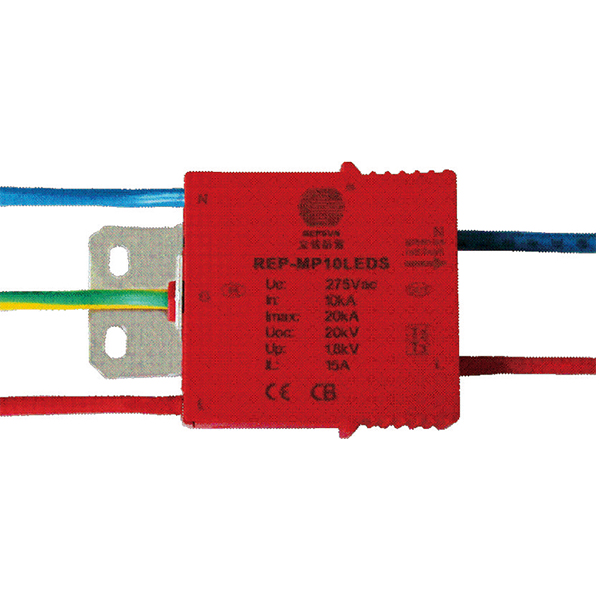

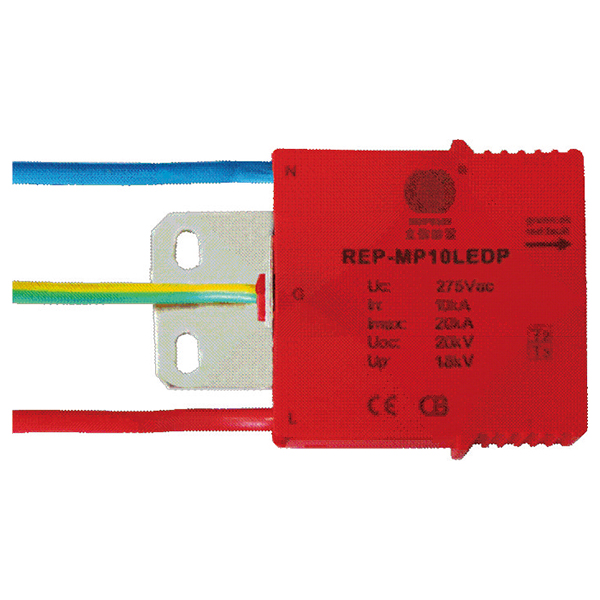

Product Picture
REP-MP10LEDP&REP-MP10LEDS Series
Features
●The REP-MP10LEDX is designed to protect single phase LED and lighting applications.
●Y-configuration full modes of protection.
●Mechanical disconnection indicator.
●High discharge capacity in a certain small size.
●Remote alarm contact optional.
Datasheet
| Type | REP-MP10LEDP | REP-MP10LEDS |
| The SPD according to IEC/EN 61643 | III/T3 | |
| Normal AC voltage(Un) | 230Vac single phase | |
| Maximum continuous operating voltage(Uc) | 275Vac | |
| Nominal discharge current(8/20μs)(In) | 10kA | |
| Maximum discharge current(8/20μs)(Imax) | 20kA | |
|
Open circuit voltage(1.2/50μs)(Uoc)
|
20kV
|
|
| Voltage protection level(Up) | ≤1.8kV | |
| Response time | 25ns | |
| Operating temperature range | -40℃~+80℃ | |
| Remote alarm contact | Remote alarm contact optional | |
| Degree of protection | IP20 | |
| Failure indication | Green: Normal ; Red: Failure | |
| Mounting | Connected with copper wires or Din Rail optiona | |
| Enclosure material | Thermoplastic; extinguishing degree UL94-V0 | |
| Technical feature | Y circuit, small size, offering full protection | |
|

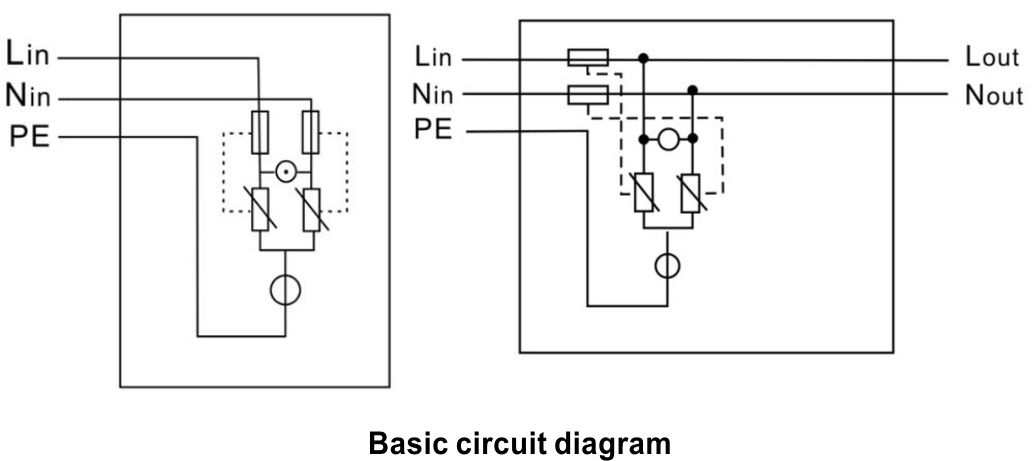

Installation mode
|
In parallel
|
In series
|
 |
|
|
