Power Surge Protector (Class D / Type 3)

REP-MP10Y T3 lightning surge SPD,fast response time≤25ns,low protection level

PRODUCTS DETAIL

Product Pictures

PCB-used Surge Protector 02

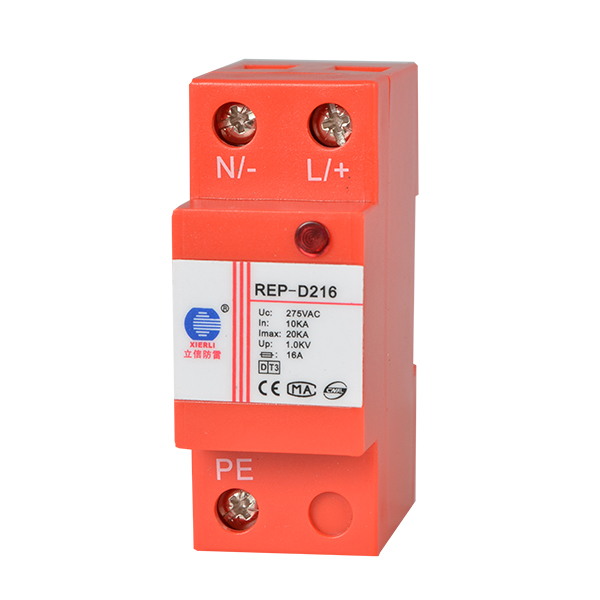

REP-D216
Part No: 114135

PCB-used Surge Protector 03

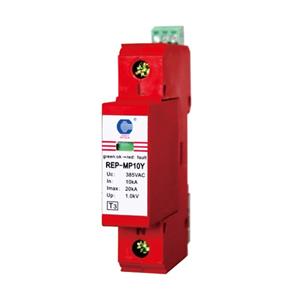

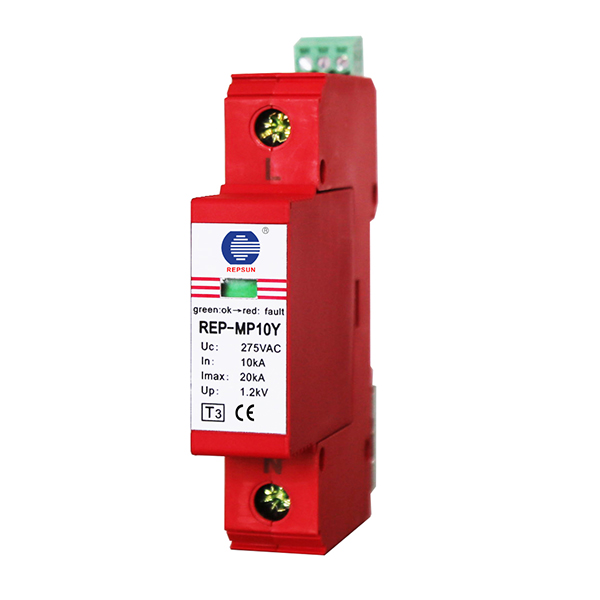

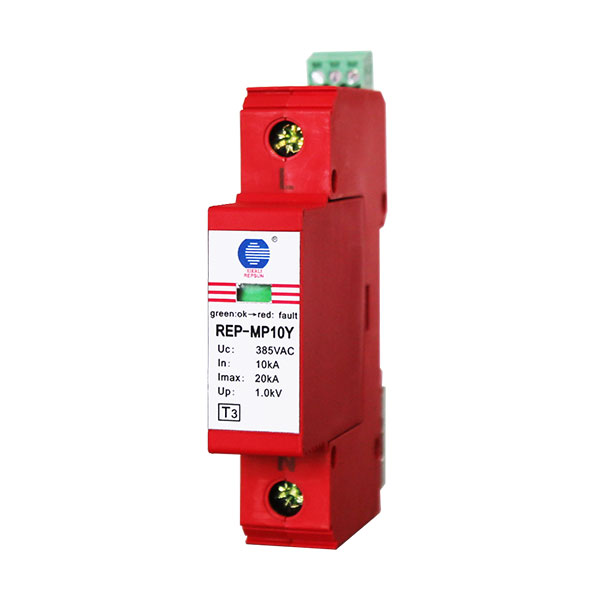

REP-MP10Y
Part No: 115195

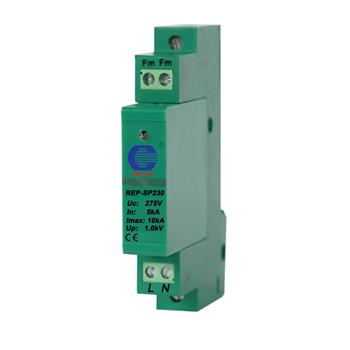

REP-SP230-web

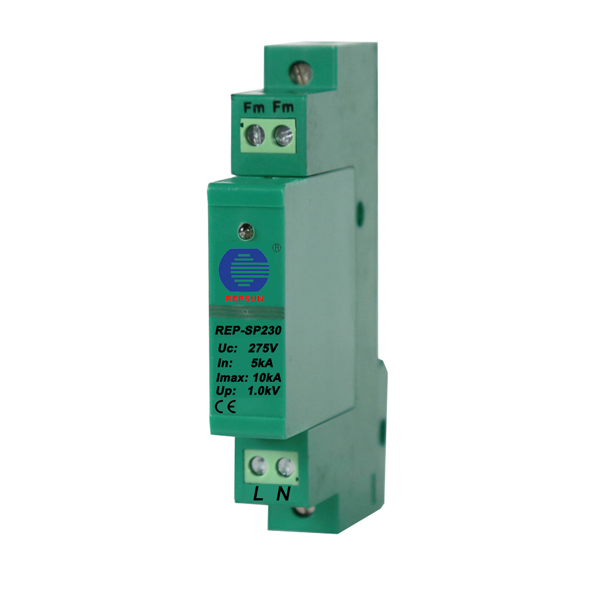

REP-SP230
Part No: 212180

PCB-used Surge Protector 05

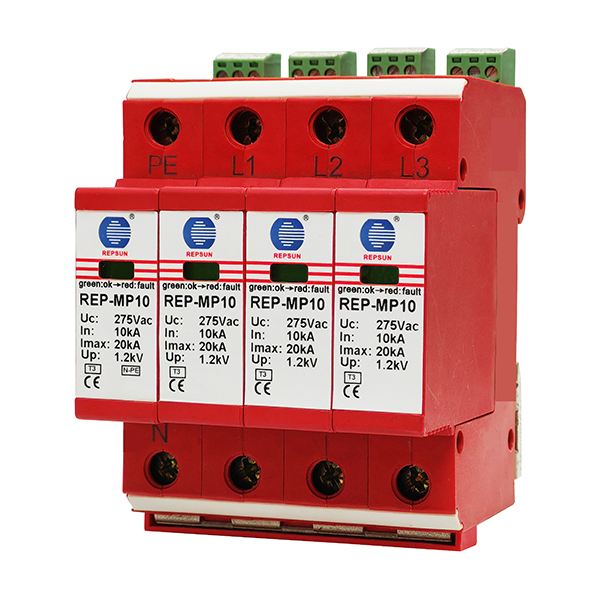

REP-MP10 / 4
Part No: 115194

PCB-used Surge Protector 06

Side (mm) Front (mm) (2P)

PCB-used Surge Protector 07

Side (mm) Front (mm)

PCB-used Surge Protector 08

Basic Diagram

Features

Class D / Type3 surge protector SPD, fast response time≤25ns,low protection level
Four items optional, already attained CB certificate
Y-configuration full modes of protection (L-N,L-PE,N-PE)
High discharge capacity in a certain small size
Mechnical disconnection indicator or light indicator optional; remote alarm contact optional

Datasheet

Type

REP-D216

REP-MP10Y

REP-SP230

REP-MP10/4

The SPD according to IEC 61643-1/-11

Ⅲ/T3

Ⅲ/T3

Ⅲ/T3

Ⅲ/T3

Nominal AC voltage(Un)

230VAC

230VAC

230VAC

230VAC/380VAC

Maximum continuous voltage(Uc)

275VAC

275VAC

275VAC

275VAC

Nominal discharge current(8/20)In

10kA

10kA

5kA

10kA

Maximum discharge current(8/20)Imax

20kA

20kA

10kA

20kA

Voltage protection level(Up)

1.0kV

1.8kV

1.0kV

1.0kV

Response time

25ns

25ns

25ns

25ns

Operating temperature range

-40℃~+80℃

Remote alarm contact

Remote alarm contact optional

Degree of protection

Ip20

Failure indication

Light-off: Normal ; Light-on: Failure /

Green: Normal ; Red: Failure

Enclosure material

Flame retardant material UL94-V0

Installation Diagram

PCB-used Surge Protector 09
PCB-used Surge Protector 10
PCB-used Surge Protector 11

Installation Details

PCB-used Surge Protector 12

Installation

PCB-used Surge Protector 13

Indication

PCB-used Surge Protector 14

Installation location

Standard

1. IEC 61643: 11-2016
2. UL 1449 4th
