Surge Protectors for AC Power Supply System(T3)

Repsun REP-MP10T3-275-XS.REP-SP230T3-275-XS lightning surge spd for ac power supply system(T3)
Surge Protectors for AC Power Supply System(T3) 02

PRODUCTS DETAIL

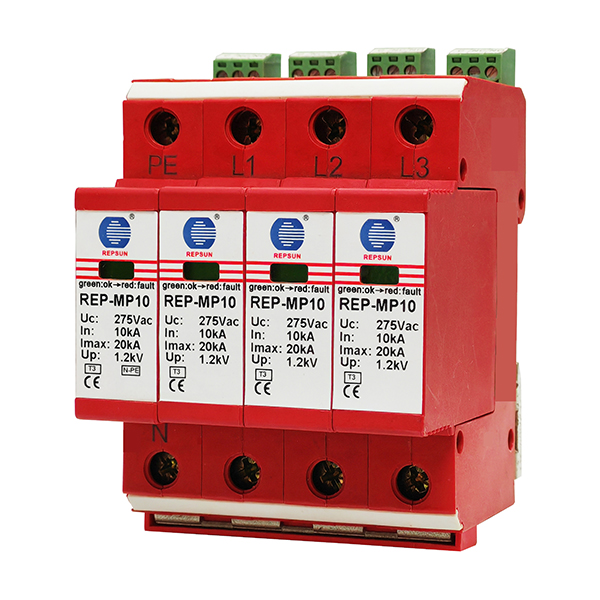

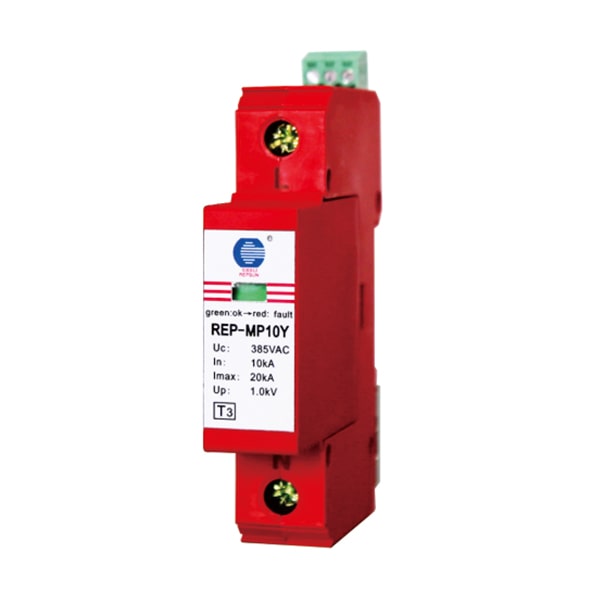

Product Picture

Surge Protectors for AC Power Supply System(T3) 04

18mm

Surge Protectors for AC Power Supply System(T3) 05

72mm

REP-SP230-web

14mm

Surge Protectors for AC Power Supply System(T3) 07

Dimensions(mm)1P
Basic circuit diagram

Surge Protectors for AC Power Supply System(T3) 08

Dimensions(mm)1P
Basic circuit diagram

Features

Type3 surge protector SPD,fast response time≤25ns,low protection level
Four items optional, already attained CB certificate
Y-configuration full modes of protection (L-N,L-PE,N-PE)
High discharge capacity in a certain small size
Mechanical disconnection indicator or light indicator optional; remote alarm contact optional

Datasheet

Type

REP-MP10T3-275-XS

REP-SP230T3-275-XS

The SPD according to IEC/EN 61643

1II/T3

11I/T3

Nominal AC voltage(Un)

230Vac

230Vac

Maximum continuous voltage(Uc)

275Vac

275Vac

Nominal discharge current (8/20)ln

10kA

5kA

Maximum discharge current (8/20)lmax

20kA

10kA

Voltage protection level(Up)

≤1.2kV

≤1.0kV

Response time

25ns

Operating temperature range

-40℃~+80℃

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Failure indication

Green: Normal ; Red: Failure

Light-off: Normal ; Light-on: Failure

Enclosure material

Thermoplastic; extinguishing degree UL94-V0

Technical feature

Y circuit, small size, offering full protection
