REP-MP10&SP230 Series
PRODUCTS DETAIL

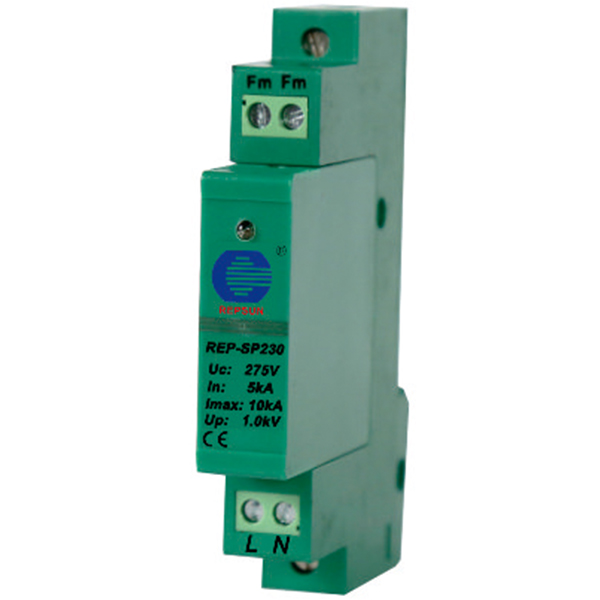

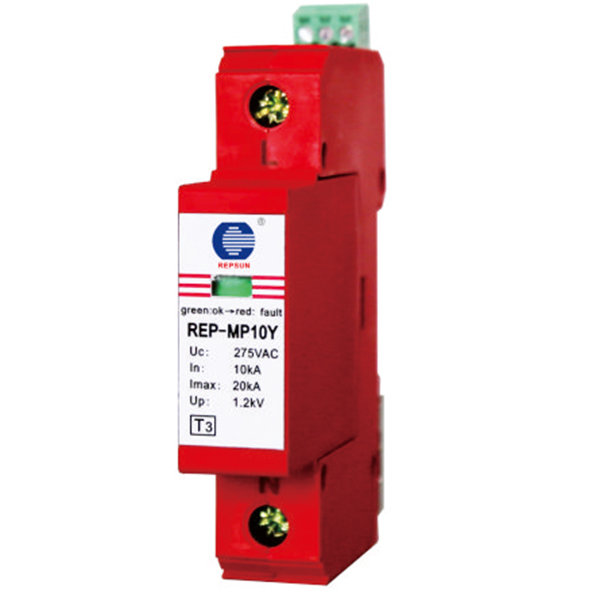

Product Picture
REP-MP10&SP230 Series
Features
●Type3 surge protector SPD, fast response time(≤25ns), low voltage protection level.
●Four items optional, already attained CB certificate.
●Y-configuration full modes of protection.
●High discharge capacity in a certain small size.
●Mechanical disconnection indicator or light indicator optional; remote alarm contact optional.
Datasheet
| Type |
REP-MP10T3-275-XS
|
REP-SP230T3-275-XS
|
| The SPD according to IEC/EN 61643 |
III/T3
|
III/T3
|
| Normal AC voltage(Un) | 230Vac | 230Vac |
| Maximum continuous operating voltage(Uc) |
275Vac
|
275Vac
|
| Nominal discharge current(8/20μs)(In)10kA |
10kA
|
5kA
|
| Maximum discharge current(8/20μs)(Imax) |
20kA
|
10kA |
| Voltage protection level(Up) |
≤1.2kV
|
≤1.0kV
|
| Response time |
25ns
|
|
|
Operating temperature range
|
-40℃~+80℃
|
|
| Remote alarm contact |
Remote alarm contact optional
|
|
| Degree of protection |
IP20
|
|
|
Failure indication
|
Green: Normal ; Red: Failure
|
Light-off: Normal ; Light-on: Failure
|
| Enclosure material |
Thermoplastic; extinguishing degree UL94-V0
|
|
| Technical feature |

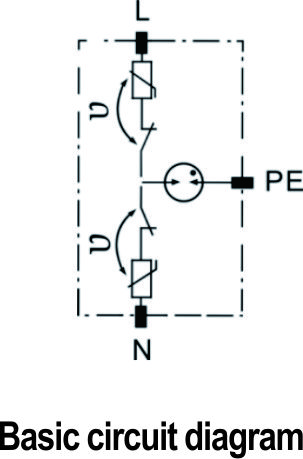

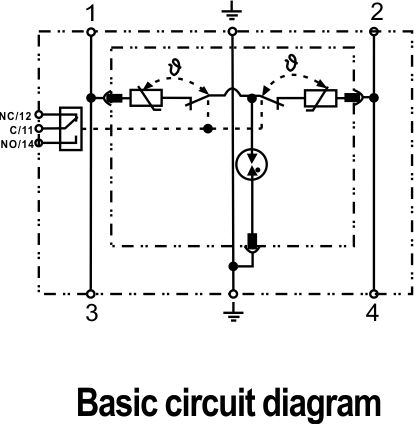

Y circuit, small size, offering full protection
|
|
  |
|
|
