REP-B50 Series
PRODUCTS DETAIL

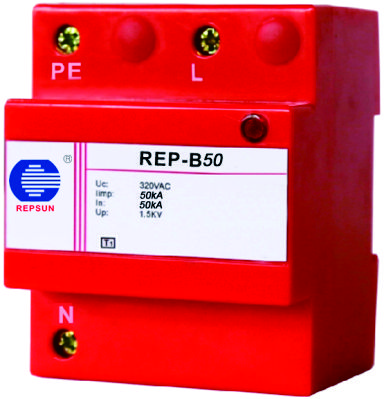

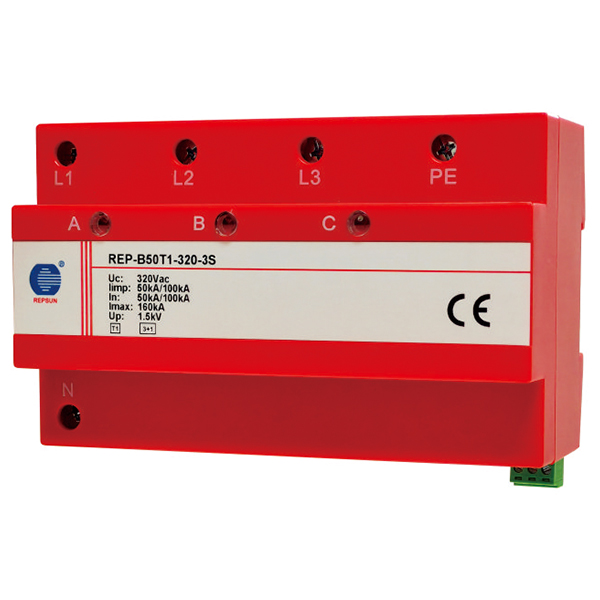

Product Picture
REP-B50 Series
Features
●Type1 surge protector SPD.
●Non exhausting encapsulated spark gap technology with extremely high surge capacity.
●High follow current extinction and limitation due to no follow current technology.
●LTR energy control technology, directly coordinated to Type 2 SPD without additional length.
Datasheet
| Type |
REP-B50T1-320-XS
|
|
| The SPD according to IEC/EN 61643 | I/T1 | |
| Normal AC voltage(Un) | 230/400Vac(50/60Hz) | |
| Maximum continuous operating voltage(Uc) | 320Vac(50/60Hz) | |
| Lightning impulse current(10/350μs)(limp)[L-N,N-PE] | 50kA/100kA | |
| Nominal discharge current(8/20μs)(In)[L-N,N-PE] | 50kA/100kA | |
| Maximum discharge current(8/20μs)(Imax)[L-N,N-PE] | 160kA | |
| Voltage protection level(Up) | ≤1.5kV | |
| Operating temperature range | -40℃~+80℃ | |
| Response time | ≤100ns | |
| Failure indication | Light-off: Normal ; Light-on: Failure | |
| Remote alarm contact | Remote alarm contact optional | |
| Degree of protection | lp20 | |
| Enclosure material | Thermoplastic; extinguishing degree UL94-V0 | |
| Technical feature | No exhausting encapsulated spark gap technology | |
 |
 |
|
