REP-B15 Series
PRODUCTS DETAIL

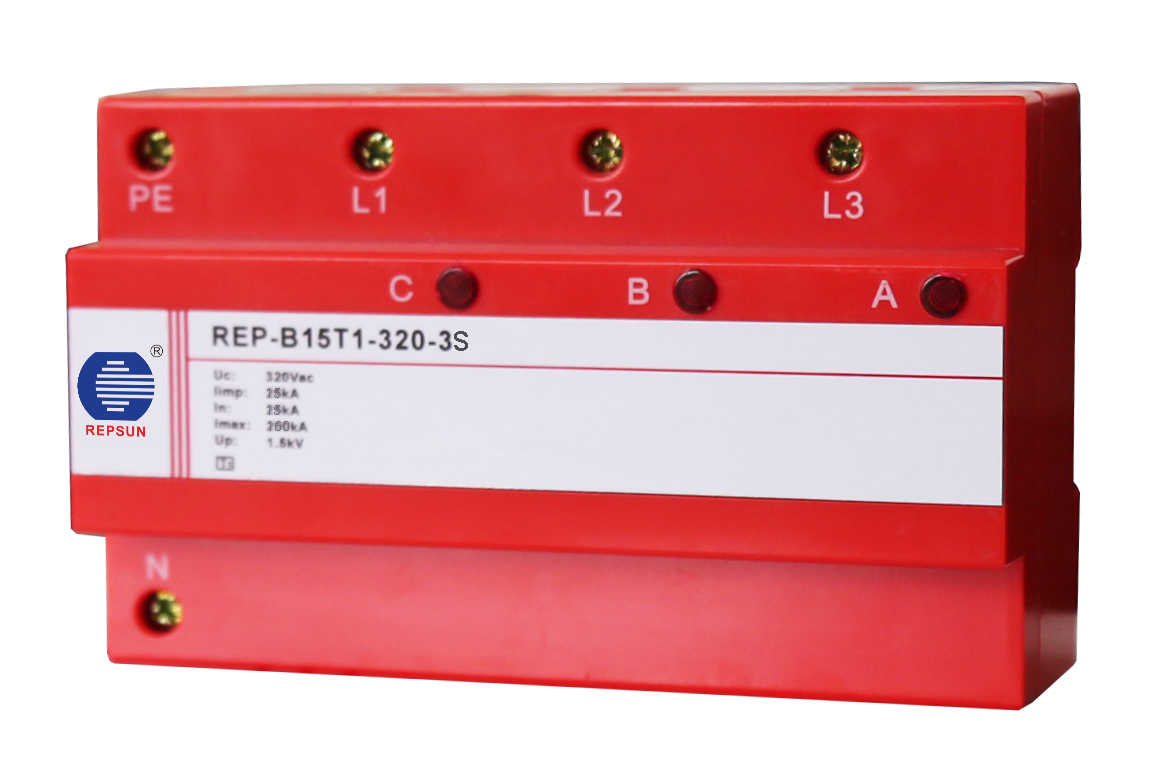

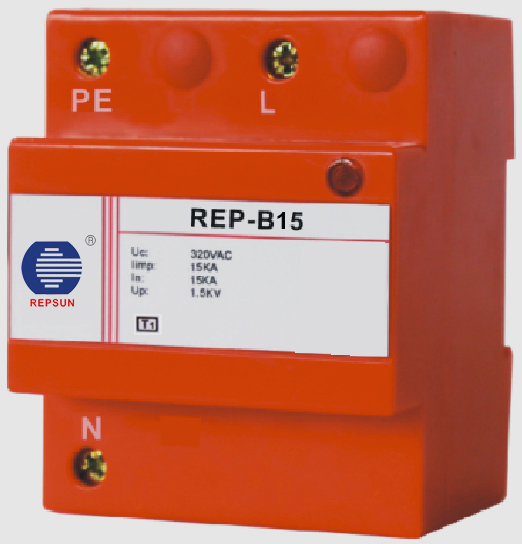

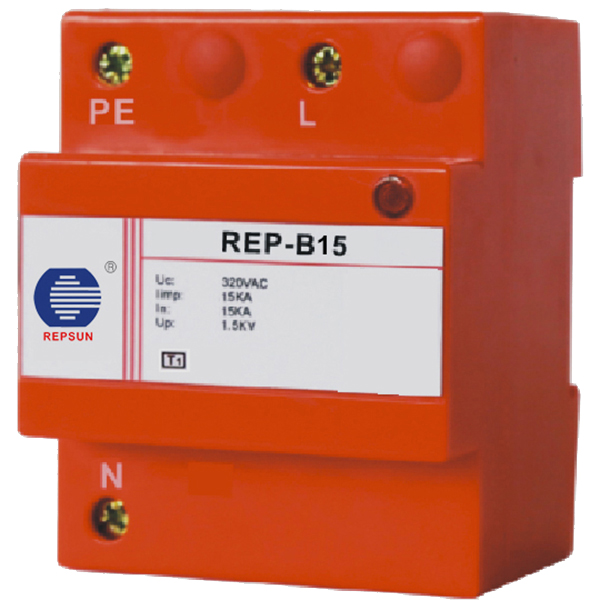

Product Picture
REP-B15 Series
Features
●Type1 surge protector SPD.
●Non exhausting encapsulated spark gap technology with extremely high surge capacity.
●High follow current extinction and limitation due to no follow current technology.
●LTR energy control technology, directly coordinated to Type 2 SPD without additional length.
Datasheet
| Type |
REP-B15T1-320-XS
|
|
|
The SPD according to IEC/EN 61643
|
I/T1
|
|
|
Normal AC voltage(Un)
|
230/400Vac(50/60Hz)
|
|
|
Maximum continuous operating voltage(Uc)
|
320Vac(50/60Hz)
|
|
|
Lightning impulse current(10/350μs)(limp)[L-N,N-PE]
|
15kA/100kA
|
|
|
Nominal discharge current(8/20μs)(In)[L-N,N-PE]
|
15kA/100kA
|
|
|
Maximum discharge current(8/20μs)(Imax)[L-N,N-PE]
|
160kA
|
|
|
Voltage protection level(Up)
|
≤1.5kV
|
|
|
Operating temperature range
|
-40℃~+80℃
|
|
|
Response time
|
≤100ns
|
|
|
Failure indication
|
Light-off: Normal ; Light-on: Failure
|
|
|
Remote alarm contact
|
Remote alarm contact optional
|
|
|
Degree of protection
|
IP20
|
|
|
Enclosure material
|
Thermoplastic; extinguishing degree UL94-V0
|
|
|
Technical feature
|
No exhausting encapsulated spark gap technology
|
|
 |
 |
|
