T1 Surge Protector

REP-B15/B25/B50/B100NPE lightning protection surge spd for electricity power supply box

PRODUCTS DETAIL

Product Pictures

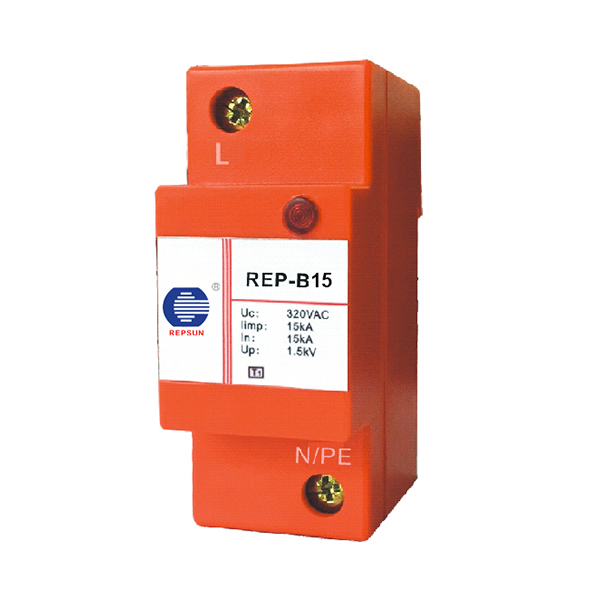

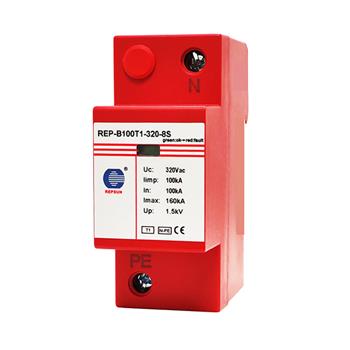

Power Surge Protector (Class B / Type 1) 02

Part No
112110 (One Pole)

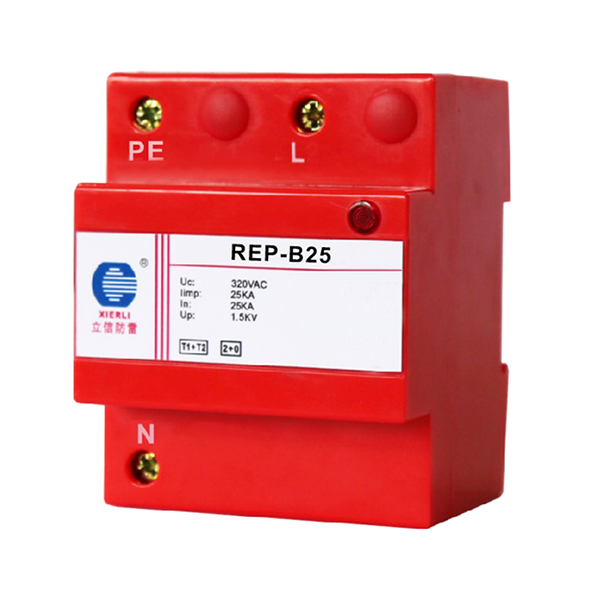

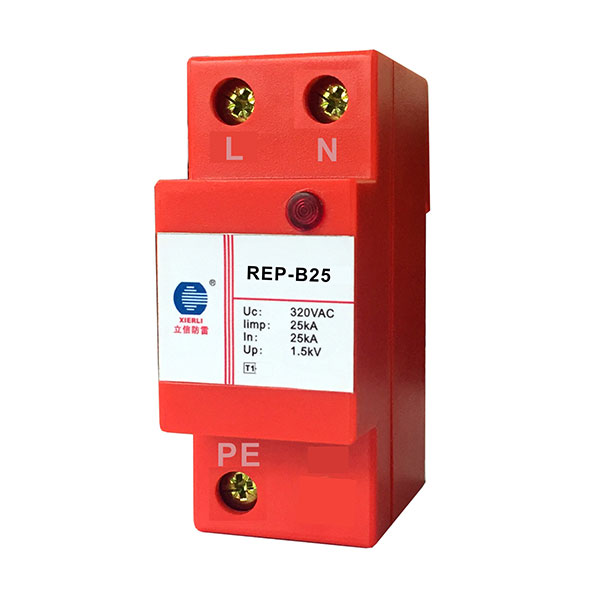

Power Surge Protector (Class B / Type 1) 03

Part No
112112 (2+0)
112111 (1+1)

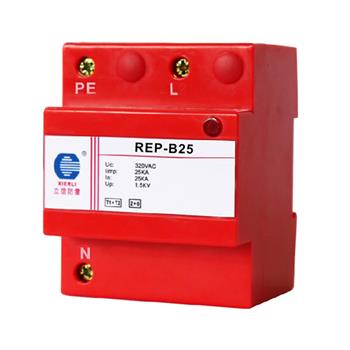

Power Surge Protector (Class B / Type 1) 04

Part No
112113 (3+0)

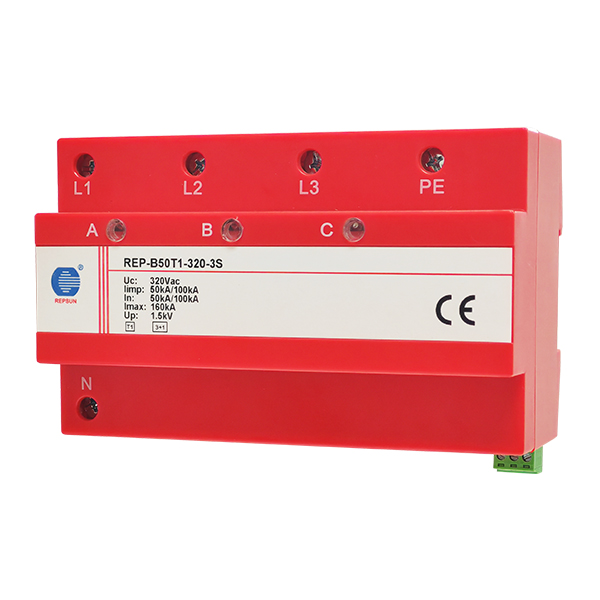

Power Surge Protector (Class B / Type 1) 05

Part No
112115 (3+1)
112114(4+0)

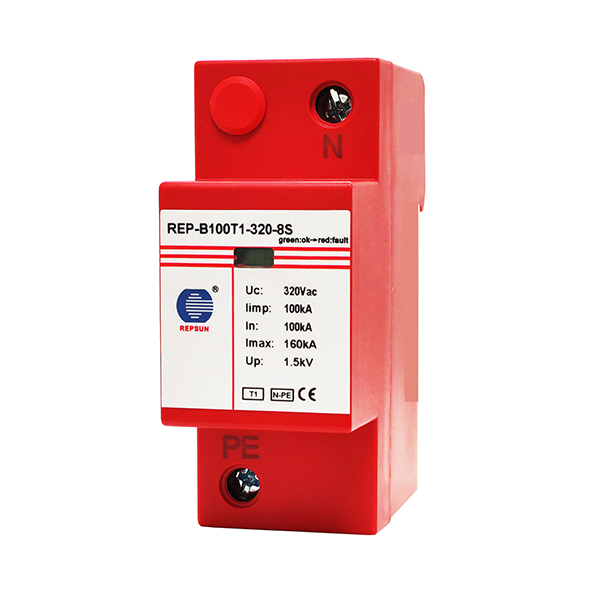

Power Surge Protector (Class B / Type 1) 06

Side (mm)

Power Surge Protector (Class B / Type 1) 07

Front (mm)

Power Surge Protector (Class B / Type 1) 08

Basic Diagram (3+1)

Power Surge Protector (Class B / Type 1) 09

Basic Diagram (3+1)

Features

ClassB / Type1 surge protector SPD
Sealed metal spark gap technology coordinated with MOV technology
High follow current extinction and limitation due to no follow current technology
LTR energy control technology without additional cable length

Datasheet

Type

REP-B15

REP-B25

REP-B50

REP-B100NPE

The SPD according to IEC61643:11

T1/I

T1/I

T1/I

T1/I

Nominal AC voltage (Un)

230/400VAC(50/60Hz)

230/400VAC(50/60Hz)

230/400VAC(50/60Hz)

230/400VAC(50/60Hz)

Maximum continuous voltage (Uc)

320VAC(50/60Hz)

320VAC(50/60Hz)

320VAC(50/60Hz)

320VAC(50/60Hz)

Lightning impulse current (10/350)limp

15kA

25kA

50kA

100kA

Nominal discharge current (8/20)In

15kA

25kA

50kA

100kA

Maximum discharge current (8/20)Imax

160kA

160kA

160kA

200kA

Voltage protection level (Up)

≤1.5kV

≤1.5kV

≤1.5kV

≤2.0kV

Response time

100ns

100ns

100ns

100ns

Operating temperature range

-40℃~+80℃

Technical features

Sealed metal spark gap technology

Response time

≤100ns

Remote alarm contact

Remote alarm contact optional

Degree of protection

IP20

Failure indication

Light-off: Normal ; Light-on: Failure

Enclosure material

Flame retardant material,UL94-V0

Installation Diagram

Power Surge Protector (Class B+C / Type T1+T2) 09
Power Surge Protector (Class B+C / Type T1+T2) 10
Power Surge Protector (Class B+C / Type T1+T2) 11
Power Surge Protector (Class B+C / Type T1+T2) 12
Power Surge Protector (Class B+C / Type T1+T2) 13

Installation Details

Power Surge Protector (Class B / Type 1) 10

Failure Indication

Power Surge Protector (Class B / Type 1) 11

Installation location

Standard

1. IEC 61643: 11-2016
2. UL 1449 4th
